Key Highlights
-
Designed for underbody mounts and low-profile axle scales like Rice Lake’s AX3040
-

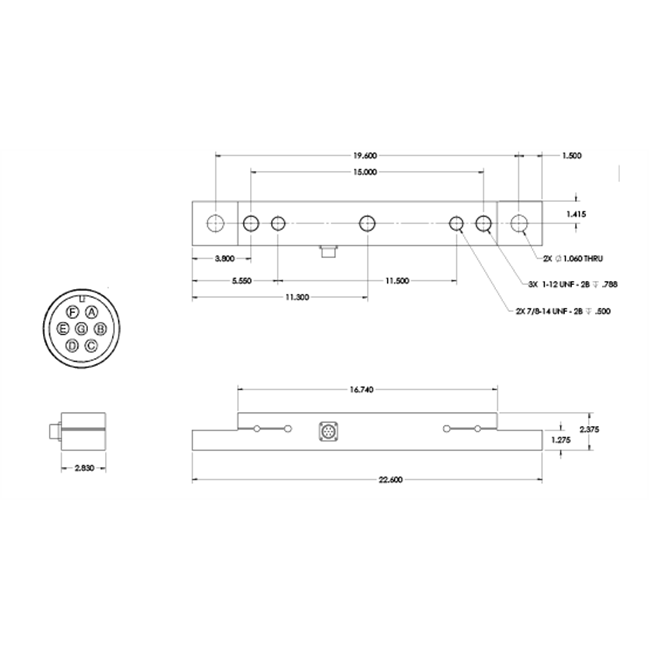

2.4-inch low profile and 22.6-inch length for versatile scale integration
-
Alloy steel construction for superior strength and reliability
-
Environmentally sealed to IP66 for harsh environments
-
±1.0% full scale non-linearity for dependable performance
-
7-pin connector with shielded wiring for secure data transmission
-
One-year limited warranty for added protection
The PL9000-22 Load Cell is engineered for underbody mounts and low-profile axle scale applications, making it a perfect match for Rice Lake’s AX3040 axle scale. With a 2.4-inch profile and an extended 22.6-inch length, this load cell provides the durability and size needed for demanding vehicle weighing operations.
Constructed from rugged alloy steel and environmentally sealed to IP66 standards, the PL9000-22 withstands exposure to dust, moisture, and challenging field conditions. Its ±1.0% full scale non-linearity ensures consistent measurement accuracy, while its 7-pin connector with shield delivers secure, interference-free signal transmission.
Ideal for commercial vehicle weighing, onboard applications, and portable axle scales, the PL9000-22 offers a reliable, long-lasting solution for heavy-duty environments.
Specifications
| Feature |
Details |
| Output |
0.5 mV/V at 12,500 lb |
| Output Resistance |
350 Ω (nominal) |
| Input Resistance |
350 Ω (nominal) |
| Material/Finish |
Alloy steel |
| Temperature Range |
14 °F to 104 °F (-10 °C to 40 °C) |
| Rated Excitation |
15 VDC |
| Non-linearity |
±1.0% full scale |
| Insulation Resistance |
500 megohms at 50 VDC |
| Seal Type |
Environmentally sealed, IP66 |
| Connector Type |
7-pin |
| Connection Pin Out |
A - Signal + (white)
C - Excitation - (black)
D - Excitation + (red)
F - Signal - (green)
F - Shield |
| Warranty |
One-year limited |
The PL9000-22 Alloy Steel Load Cell delivers the rugged performance and low-profile design needed for axle scales and underbody weighing systems. With its environmental sealing, shielded 7-pin connection, and heavy-duty construction, it provides reliable operation in the toughest environments.
Contact us today for detailed specifications, pricing, or to integrate the PL9000-22 into your axle scale system.
