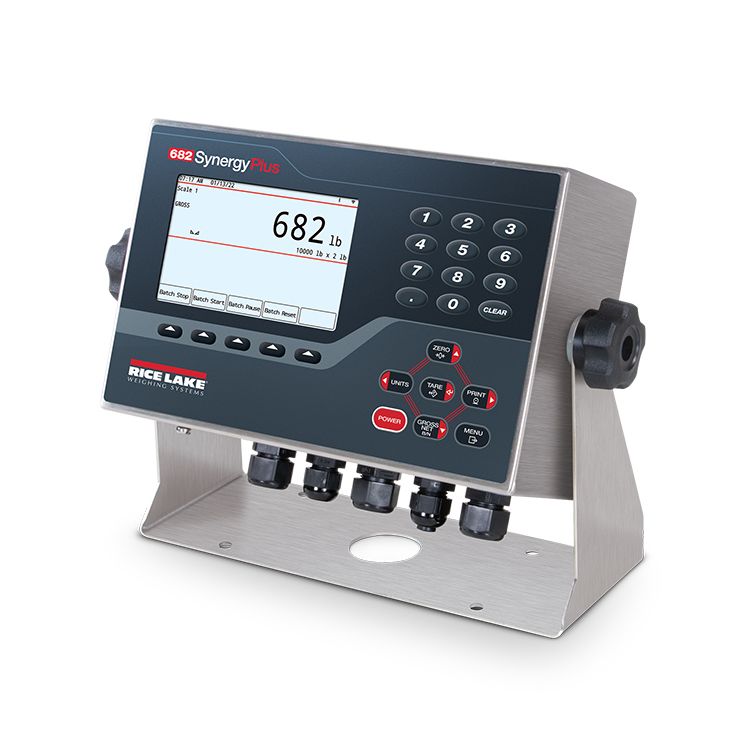

The Rice Lake 682 Synergy Series Digital Weight Indicator is a feature-rich, high-performance scale indicator designed for industrial, food processing, and vehicle weighing applications.

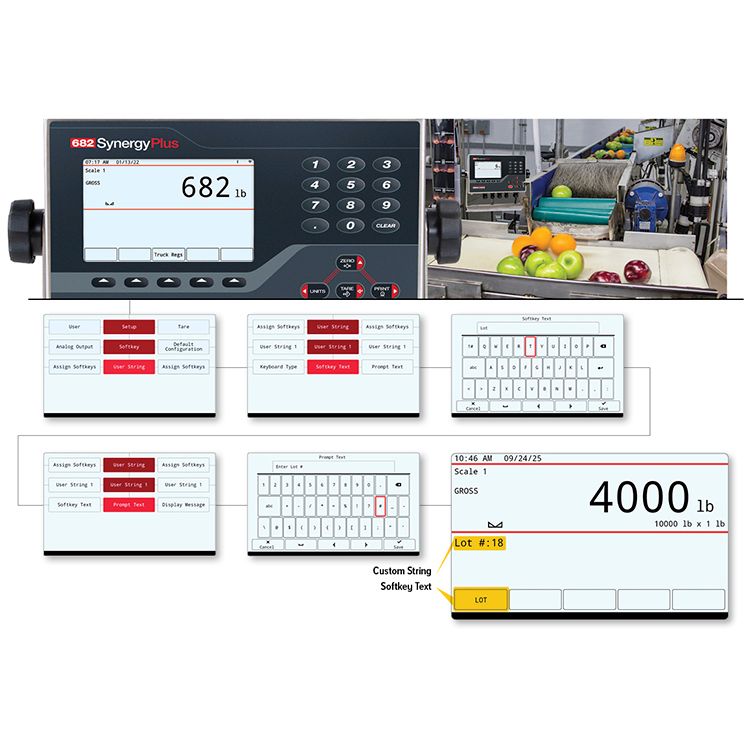

Equipped with a vibrant 5-inch LCD display, advanced connectivity, and configurable softkeys, the 682 Synergy provides an intuitive and highly adaptable interface for operators. Its multi-language support ensures ease of use in diverse work environments.
With built-in web server functionality, Wi-Fi and Bluetooth® integration, and multiple communication ports, the 682 Synergy facilitates seamless data sharing and remote monitoring. The Truck In/Out feature enhances vehicle weighing operations by automating weight transactions and storage, allowing for quick retrieval and printing.
Constructed with 304 stainless steel and IP69K washdown protection, the 682 Synergy withstands harsh industrial and food processing environments, making it an ideal choice for demanding weighing applications.
| Specification | Details | |
|---|---|---|
| Power Input | 100 to 240 VAC, 50/60 Hz | |
| Optional Power | 9 to 36 VDC | |
| Power Consumption | 3.2W (AC) with one 350Ω load cell, 15W max | |
| Excitation Voltage | 10 VDC (±5 VDC), supports 8 × 350Ω or 16 × 700Ω load cells | |
| Analog Signal Input Range | -5 mV to +70 mV | |
| Analog Signal Sensitivity | 0.3 µV/graduation minimum, 1 µV/graduation recommended | |
| A/D Sample Rate | 6.25 to 120 Hz, software selectable | |
| Resolution | Internal: 8,000,000 counts Display: 1,000,000 counts |
|
| System Linearity | Within 0.01% full scale | |
| Digital I/O | 4 configurable I/O (5V TTL logic) | |
| (Optional) Analog Output | 16-bit resolution, 0-10 VDC, 0-20 mA, 4-20 mA | |
| (Optional) Relay Board | 4 normally open dry contact relays, 20-250 VAC @ 3A or 30 VDC @ 3A | |
| Communication Ports |
(2) RS-232 (full-duplex) RS-485/422 (two-wire or four-wire) Micro USB (device) Ethernet TCP/IP (10/100) Wi-Fi and Bluetooth® |
|
| Annunciators | Zero, Gross/Net, Tare, Wi-Fi, Bluetooth® | |

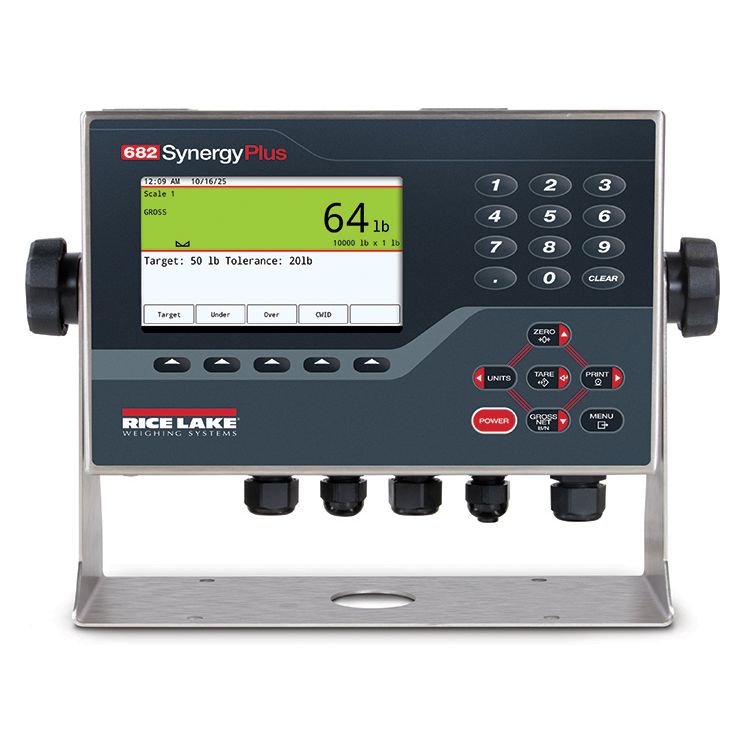

| Display | 5-inch LCD, 800 × 480 pixel resolution, 500 NIT brightness | |
| Keys/Buttons | 18 tactile membrane buttons + 5 configurable softkeys | |
| Operating Temperature | Certified: 14°F to 104°F (-10°C to 40°C) Industrial: 14°F to 122°F (-10°C to 50°C) |
|
| Enclosure & Rating | 304 Stainless Steel, IP69K (IP66 with RJ45 option) | |
| Weight | 6.25 lb (2.84 kg) | |
| Warranty | Two-year limited | |
| Approvals |
NTEP CC 19-021, Class III/IIIL, 10,000 d Measurement Canada AM-6121C OIML R76 2006 A NL1 19.56R3 EU Test Certificate TC11562 CE Marked UKCA cULus Listed |
| Measurement | Value | |
|---|---|---|
| A | 10.00 in (254 mm) | |
| B | 9.50 in (241 mm) | |
| C | 8.60 in (218 mm) | |
| D | 6.00 in (152 mm) | |
| E | 11.60 in (295 mm) | |
| F | 3.50 in (89 mm) | |
| G | 4.00 in (102 mm) |
The Rice Lake 682 Synergy Series is a cutting-edge digital weight indicator that combines advanced connectivity, a user-friendly interface, and powerful automation capabilities. Whether used in industrial, logistics, or food processing environments, it delivers exceptional accuracy, durability, and efficiency.
Upgrade your weighing system with the 682 Synergy Series! Contact us today for more details or to place your order.
