Key Highlights
-
Heavy-Duty Capacity: 10,000 lb rated, designed for demanding industrial weighing.
-
Double-Ended Shear Beam: Low-profile, rigid mounting for applications where suspension mounts are unsuitable.
-
High Accuracy: ±0.03% full scale non-linearity ensures reliable, precise measurements.
-
Durable Alloy Steel Construction: Built for strength and long service life in industrial environments.
-
Environmentally Sealed to IP67: Resistant to moisture, dust, and harsh conditions.
-
Wide Excitation Range – Operates from 5 to 15 VDC for flexible system integration.
-
Standard Amphenol 5-Pin Connector – Easy and secure installation.
-
One-Year Warranty: Confidence in quality and performance.

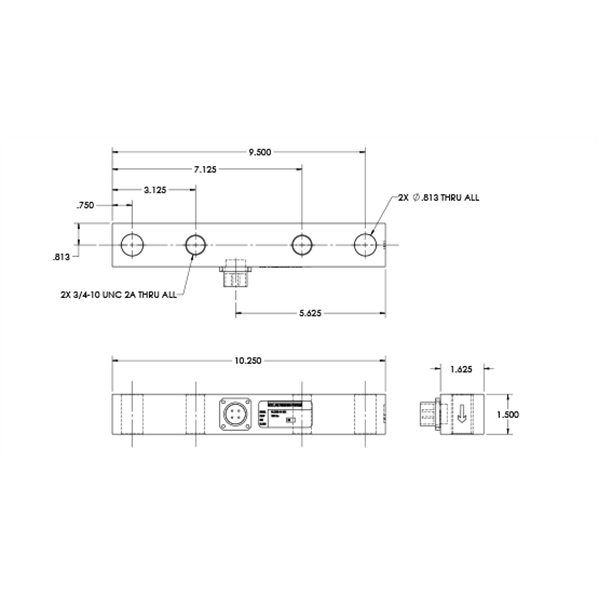

The RLD-10K Alloy Steel Load Cell is a double-ended shear beam load cell engineered for rugged industrial weighing applications. Its low-profile design and rigid mount make it the perfect choice when suspension mounts are not practical, when height restrictions prevent larger profiles, or when dynamic forces are present.
Built from alloy steel and environmentally sealed to IP67 standards, the RLD-10K ensures long-lasting performance even in tough environments with exposure to dust, moisture, or vibration. It delivers 3.0 mV/V full scale output at a 10,000 lb capacity, providing highly accurate and repeatable weight readings.
This load cell integrates easily into industrial weighing systems thanks to its Amphenol 5-pin connector and standard pinout configuration. With excellent insulation resistance (10 GΩ at 50 VDC), ±0.03% full scale non-linearity, and wide excitation range, the RLD-10K is a dependable solution for heavy-duty weighing systems.
Specifications
| Feature |
Specification |
| Capacity |
10,000 lb |
| Full Scale Output |
3.0 mV/V |
| Output Resistance |
700 Ω (nominal) |
| Input Resistance |
780 Ω (nominal) |
| Material |
Alloy steel |
| Temperature Range |
14 °F to 104 °F (-10 °C to 40 °C) |
| Rated Excitation |
5–15 VDC |
| Non-Linearity |
±0.03% full scale |
| Insulation Resistance |
10 GΩ at 50 VDC |
| Seal Type |
Environmentally sealed, IP67 |
| Connector Type |
Amphenol 5-pin (male) |
| Weight |
Varies by configuration |
| Warranty |
One-year limited |
Connection Pin Out
| Pin |
Function |
| A |
Excitation + |
| B |
Signal + |
| C |
Signal - |
| D |
Excitation - |
| E |
Shield |
Upgrade your industrial weighing system with the RLD-10K Alloy Steel Load Cell—engineered for precision, durability, and reliability in the toughest conditions.
Contact us today for pricing, availability, or integration support.
