Key Highlights
-
Internal calibration with automatic environmental compensation
-
Fast 1.5-second stabilization time
-
High readability from 0.01 g to 1 g for industrial-level accuracy
-
Rugged construction with IP65 / NEMA Type 4 protection
-
Built-in RS-232 interface for seamless PC or printer connection
-
Equipped with VFD display, underhook weighing, and time/date features
-
Multi-unit measurement capability including pound, carat, grain, and more
-
Ideal for high-capacity precision weighing in industrial settings
-
Five-year limited warranty included

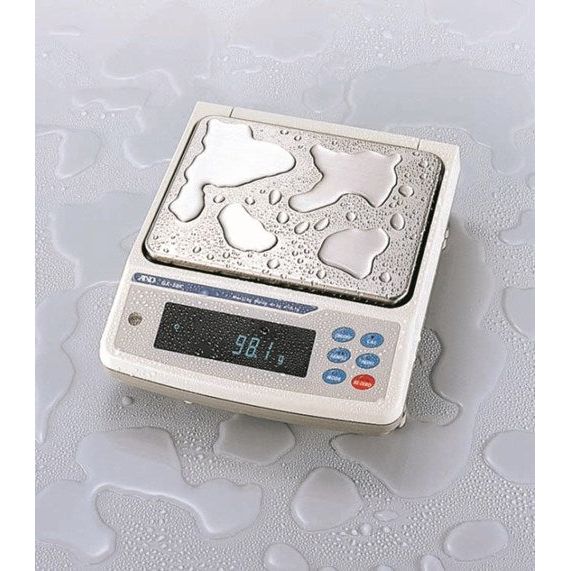

The A&D Weighing GX-K Series Industrial Balance delivers precision performance that is typically reserved for analytical balances. Built to meet the rigorous demands of industrial weighing, the GX-K series features internal calibration and automatic environmental compensation, ensuring consistency and accuracy regardless of changing conditions.
With a wide capacity range from 8.1 kg to 31 kg, the GX-K Series offers excellent resolution as low as 0.01 g, making it ideal for applications where precision is critical. The IP65-rated enclosure protects against dust and moisture, and the underhook weighing feature allows for convenient density determination and suspended weighing.
Every unit includes a Vacuum Fluorescent Display (VFD), RS-232 interface, counting and percentage modes, and a quick reference operation card. Whether used in laboratories, production environments, or quality control settings, the GX-K balances provide exceptional value, reliability, and ease of use.
GX-K Series Specifications (GX-8K to GX-12K)
| Model |
Part # |
Capacity |
Resolution |
Repeatability |
Linearity |
Pan Size |
Dimensions (in) |
Weight |
| GX-8K |
97776 |
8.1 kg |
0.01 g |
0.01 g |
±0.02 g |
10.62 × 8.26 in (270 × 210 mm) |
11.81 × 13.98 × 4.37 |
18.3 lb |
| GX-8K2 |
97775 |
8.1 kg / 2.1 kg |
0.1 g / 0.01 g |
0.05 g / 0.01 g |
±0.1 g / ±0.02 g |
10.62 × 8.26 in |
11.81 × 13.98 × 4.37 |
18.3 lb |
| GX-10K |
97777 |
10.1 kg |
0.01 g |
0.01 g |
±0.03 g |
10.62 × 8.26 in |
11.81 × 13.98 × 4.37 |
18.3 lb |
| GX-12K |
97778 |
12 kg |
0.1 g |
0.1 g |
±0.2 g |
10.62 × 8.26 in |
11.81 × 13.98 × 4.37 |
18.3 lb |
GX-K Series Specifications (GX-20K to GX-32K)
| Model |
Part # |
Capacity |
Resolution |
Repeatability |
Linearity |
Pan Size |
Dimensions (in) |
Weight |
| GX-20K |
97779 |
20 kg |
0.1 g |
0.1 g |
±0.2 g |
10.62 × 8.26 in |
11.81 × 13.98 × 4.37 |
18.3 lb |
| GX-30K |
97780 |
30 kg |
0.1 g |
0.1 g |
±0.2 g |
10.62 × 8.26 in |
11.81 × 13.98 × 4.37 |
18.3 lb |
| GX-32K |
97781 |
30 kg / 6.1 kg |
1 g / 0.1 g |
0.5 g / 0.1 g |
±1 g / ±0.2 g |
10.62 × 8.26 in |
11.81 × 13.98 × 4.37 |
18.3 lb |
Additional Specifications
| Parameter |
Value |
| Stabilization Time |
Approx. 1.5 seconds |
| Sensitivity Drift |
±2 to ±5 ppm/°C depending on model |
| Operating Temperature |
41 °F to 104 °F (-5 °C to 40 °C) |
| Power Supply |
120/240 V AC adapter |
| External Calibration Mass |
Up to 30 kg (model-dependent) |
| Operating Modes |
Counting, Percentage |
| Warranty |
Five-year limited |
| Return Policy |
A&D Standard Policy – restock fee may apply |
Measurement Units per Model
Due to the extensive range of units and combinations, these include:
-
Gram (g)
-
Ounce (oz)
-
Troy Ounce (ozt)
-
Pennyweight (dwt)
-
Carat (ct)
-
Momme (mom)
-
Grain (GN)
-
Pound (lb)
-
Pound/Ounce (lb:oz)
Precision varies based on capacity and resolution. See technical manual for full listing.
Ready to elevate your industrial weighing capabilities? The A&D GX-K Series offers the perfect balance of precision, speed, and durability for demanding applications. Whether you're weighing large batches or conducting advanced counting and percentage measurements, this series is built to exceed expectations.
