Key Highlights
-
Built on proven rocker pin technology for repeatable high-accuracy performance
-
316 stainless steel construction — hygienic, durable, and corrosion-resistant
-
Hermetically sealed (IP68/IP69K) for full washdown protection
-
Corner adjustment simplified via matched output load cells
-
Vibration-resistant design maintains consistent accuracy
-
Designed for clean-in-place (CIP) and sanitary process environments
-
Motion compensation for container expansion/contraction
-
Optional EX Version (PR6202/..E) available for hazardous areas
-
15-year load cell warranty — engineered for long-term performance
-
Built-in lift-off & lateral force protection

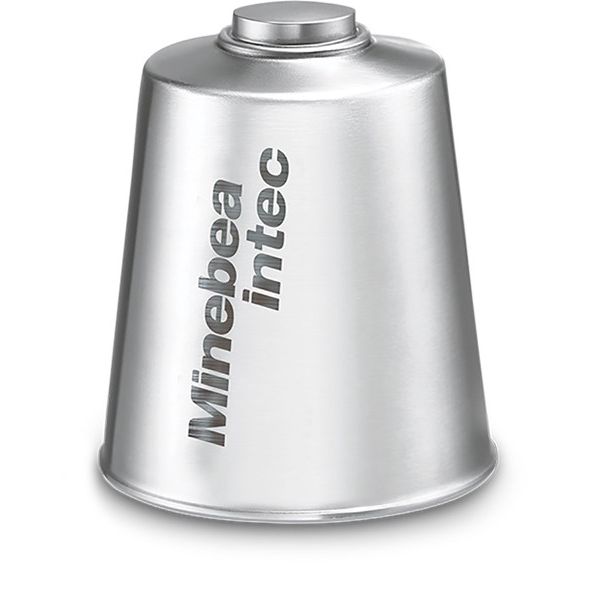

The Minebea Intec PR6202 Hygienic Weigh Module Kit is purpose-built to meet the stringent requirements of the food, pharmaceutical, and chemical industries. Designed with total hygiene and long-term accuracy in mind, this system combines Minebea's advanced weighing technology with a fully stainless steel construction for use in washdown and sanitary process vessels.
Every aspect of the design—from the inclined horizontal surfaces for self-drainage, to the elimination of crevices and undercuts—ensures compliance with international hygiene standards. The rocker pin load cell delivers highly repeatable results, even under vibration or lateral stress.
An integrated mounting kit allows the system to compensate for mechanical and thermal movement of tanks or structures, ensuring stability over time. With a load cell resolution of 10,000 divisions and EX-certification availability, the PR6202 is ideal for high-precision and ATEX-rated installations.
Technical Specifications
| Feature |
Specification |
| Construction |
All stainless steel (AISI 316) |
| Load Cell Output |
2.0 mV/V |
| Resolution |
10,000 divisions |
| Ingress Protection |
IP68/IP69K (submersible 1.5 m for 10,000 hours) |
| EX Version |
PR6202/..E (optional for hazardous areas) |
| Overload Protection |
High overload capacity |
| Vibration Resistance |
Yes |
| Lateral Force Protection |
50 kN (destructive) |
| Lift-off Protection |
25 kN permissible / 35 kN foot protection |
| Temperature Range |
Wide operating temperature (consult datasheet) |
| Warranty |
15-year limited (load cell only) |
| Design Compliance |
Hygienic design – inclined surfaces, no gaps |
Applications
-
Food and Beverage Manufacturing
-
Pharmaceutical Processing
-
Chemical Production
-
Sanitary & Washdown Environments
-
Tanks, Hoppers, and Vessels Requiring High Precision
Enhance the accuracy, safety, and hygiene of your process vessels with the Minebea Intec PR6202 Hygienic Weigh Module Kit. Built for industries where precision and cleanliness are non-negotiable, this kit delivers long-term reliability with IP69K sealing and 15-year warranty protection.
Contact us today to integrate world-class hygienic weighing into your operation.
