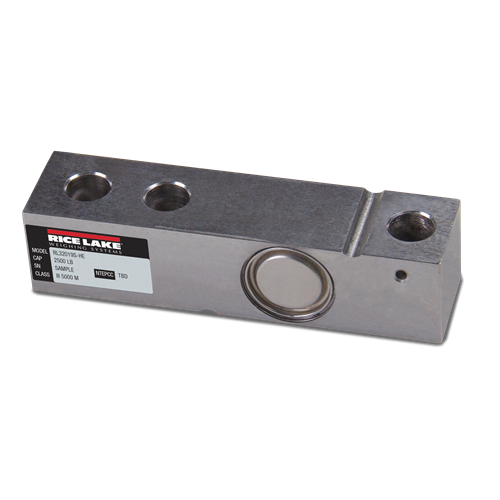

Rice Lake RL32019S-HE Stainless Steel, Single-Ended Beam

Rice Lake RL32019S-HE Stainless Steel, Single-Ended Beam

$482.00 - $535.00
$482.00
$482.00 - $535.00
$482.00

Key Features:

  • High-Quality Stainless Steel Construction: Built from stainless steel, ensuring superior corrosion resistance, strength, and long-term durability.
  • Hermetically Sealed for Harsh Environments: IP69K-rated protection ensures resistance to moisture, dust, and high-pressure washdowns, making it ideal for tough industrial conditions.
  • Wide Capacity Range: Available in capacities from 1,000 lb to 10,000 lb, providing flexibility for different weighing applications.
  • High-Precision Weighing Performance:
    • Full-scale output: 2.0 mV/V ±0.05%
    • Combined error: 0.017% full scale
    • Insulation resistance: >5,000 megohm
    • mV/V/ohm calibration for precision accuracy
  • Safe Overload and Sideload Protection:
    • Can withstand 150% full-scale overload
    • Built for heavy-duty industrial weighing applications
  • Long PTFE Cable for Easy Installation: Comes with a 30 ft PTFE jacketed cable, ensuring durability and secure connectivity.
  • Versatile Applications: Ideal for industrial weighing systems, platform scales, tank weighing, and force measurement applications.
  • Certified for Compliance:
    • NTEP Certified (Approval No. 18-106) for legal trade applications
    • cFMus approved, ensuring adherence to industry safety and performance standards
  • Reliable Warranty: Backed by a two-year limited warranty, offering confidence in long-term use.

Upgrade your industrial weighing applications with the Rice Lake RL32019S-HE Load Cell, designed for accuracy, durability, and seamless integration. Order today to optimize your operations.

Specifications:

Specification Details
Full Scale Output 2.0 mV/V ±0.05%
Input Resistance 400 (±20) ohm
Output Resistance 350 (±3) ohm
Material/Finish Stainless steel
Operating Temperature 0 °F to 200 °F (-18 °C to 93 °C)
Compensated Temperature 14 °F to 104 °F (-10 °C to 40 °C)
Safe Overload 150% full scale
Rated Excitation 5 to 10 VDC
Combined Error 0.017% full scale
Insulation Resistance >5,000 megohm
Seal Type Hermetically sealed, IP69K
Deflection at Capacity 0.2 to 0.4 mm
Cable Length 30 ft PTFE cable
Warranty Two-year limited
Approvals NTEP 18-106, cFMus

Load Cell Dimensions

Capacity (lb) A B C D E F G H I J K L M N
1,000 to 5,000 SE 1.24 0.59 0.96 2.20 1.24 5.12 0.53 0.70 1/2-20 UNF 3.00 1.00 0.62 0.25 0.13
5,000 LE to 10,000 1.50 0.75 1.45 2.99 1.50 6.75 0.80 0.70 3/4-16 UNF 3.75 1.50 0.75 — —
