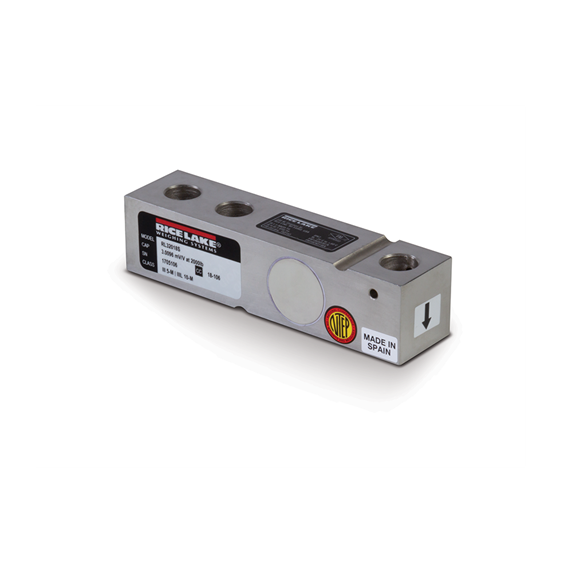

Rice Lake RL32018S Stainless Steel, Single-Ended Beam Load Cell

Rice Lake RL32018S Stainless Steel, Single-Ended Beam Load Cell

$344.00 - $736.00
$344.00
$344.00 - $736.00
$344.00

Key Features:

  • Premium Stainless Steel Construction: Built from high-quality stainless steel, ensuring superior strength, corrosion resistance, and long-lasting durability.
  • Wide Capacity Range: Available in capacities from 250 lb to 20,000 lb, making it ideal for various industrial weighing applications.
  • NTEP Certified for Legal Trade:
    • NTEP Certified capacities: 500 lb to 10,000 lb
    • Non-NTEP capacities: 250 lb, 20,000 lb
  • Environmentally Sealed for Durability: IP66-rated sealing offers protection against dust, moisture, and harsh environmental conditions.
  • High-Precision Weighing Performance:
    • Full-scale output: 3.0 mV/V ±0.05%
    • Combined error: 0.017% full scale
    • Insulation resistance: >5,000 megohm
    • mV/V/ohm calibration for superior accuracy
  • Safe Overload and Sideload Protection:
    • Supports 150% full-scale overload
    • Built for high-performance weighing applications
  • Long Cable for Easy Installation: Comes with a 20 ft cable, providing secure connectivity and installation flexibility.
  • Versatile Applications: Ideal for platform scales, industrial weighing systems, process weighing, and tank weighing.
  • Certified for Compliance:
    • NTEP Certified (Approval No. 18-106) for legal trade applications
    • cFMus approved, meeting industry safety and performance standards
  • Reliable Warranty: Backed by a two-year limited warranty, ensuring confidence in long-term use.

Upgrade your industrial weighing applications with the Rice Lake RL32018S Load Cell, designed for accuracy, durability, and seamless integration. Order today to optimize your weighing efficiency.

Specifications:

Specification Details
Full Scale Output 3.0 mV/V ±0.05%
Input Resistance 400 (±20) ohm
Output Resistance 350 (±3) ohm
Material/Finish Stainless steel
Operating Temperature 0 °F to 150 °F (-18 °C to 65 °C)
Compensated Temperature 14 °F to 104 °F (-10 °C to 40 °C)
Safe Overload 150% full scale
Rated Excitation 10 VDC (15 V max)
Combined Error 0.017% full scale
Insulation Resistance >5,000 megohm
Seal Type Environmentally sealed, IP66
Deflection at Capacity 0.2 to 0.4 mm
Cable Length 20 ft cable
Warranty Two-year limited
Approvals NTEP 18-106, cFMus

Load Cell Dimensions

Capacity (lb) A B C D E F G H I J K L M N
250 to 500 1.00 0.59 0.96 2.20 1.24 5.12 0.53 0.70 1/2-20 UNF 3.00 1.00 0.62 0.25 0.13
1,000 to 5,000 SE 1.24 0.59 0.96 2.20 1.24 5.12 0.53 0.70 1/2-20 UNF 3.00 1.00 0.62 0.25 0.13
5,000 LE to 10,000 1.50 — 1.45 2.99 1.50 6.75 0.80 0.70 3/4-16 UNF 3.75 1.50 0.75 — —
15,000 to 20,000 2.00 — — 4.00 2.00 8.75 1.06 — 1-14 UNS 4.90 2.00 1.00 — —
