Key Highlights
-
Explosion-proof housing rated for Class I, II, III hazardous areas
-
Compatible with most Rice Lake indicators
-
Input via RS-232 or 20 mA current loop
-
Red LED 0.8 in digits for clear viewing
-
Rugged NEMA Type 4, 7CD, 9EFG enclosure
-
Reliable in extreme industrial conditions
-
Backed by a one-year limited warranty
The EL232 XPCD from Rice Lake is a remote serial display designed specifically for use in hazardous, explosion-prone environments. Housed in a heavy-duty, explosion-proof enclosure, it enables weight data visibility within classified areas while your weighing indicator remains safely outside the danger zone.
Its high-intensity red LED display features 0.8-inch digits for readability in industrial settings. Supporting RS-232 and 20 mA current loop inputs, the EL232 XPCD integrates seamlessly with most Rice Lake indicators, making it a plug-and-play upgrade for safety-critical weighing operations.
Built for environments with Class I, II, and III classifications and groups C, D, E, F, and G, this remote display is your reliable choice for compliance and performance.
EL232 XPCD Specifications
| Feature |
Details |
| Input Voltage |
115 VAC, 60 Hz |
| Interfaces |
20 mA current loop and RS-232 |
| Baud Rate |
1200, 2400, 4800, 9600 |
| Display |
High-intensity red LED, 0.8 in (20.3 mm) digits |
| NEC Classification |
Class I Div 1 Groups C & D; Class II Div 1 Groups E, F, G; Class III |
| Enclosure |
Explosion-proof box, NEMA Type 4, 7CD, 9EFG |
| Weight |
Approx. 60 lb (27.2 kg) |
| Warranty |
One-year limited |

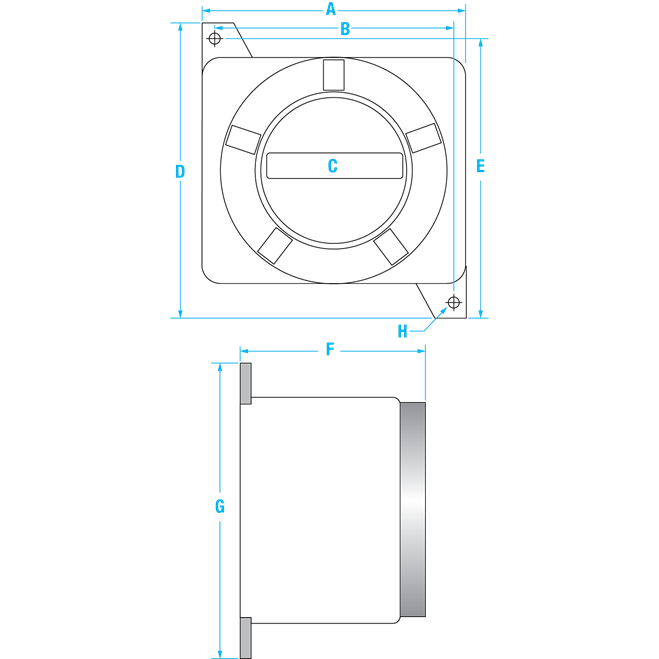

Enclosure Dimensions
| Label |
Measurement |
| A |
10.50 in (266.7 mm) |
| B |
9.50 in (241.3 mm) |
| C |
5.81 in (147.7 mm) |
| D |
11.75 in (298.5 mm) |
| E |
10.50 in (266.7 mm) |
| F |
7.50 in (190.5 mm) |
| G |
11.75 in (298.5 mm) Glass Diameter |
| H |
0.43 in (11 mm) Hole Diameter |
Ensure safe and compliant weight display in hazardous locations with the EL232 XPCD Explosion-Proof Remote Display. Built for dangerous environments, this display provides high visibility and reliability when you need it most.
