Key Highlights:
-
Complete package includes CW-90B stainless steel bench scale, 12-inch column, and 480/480 Plus digital indicator
-
IP67 aluminum load cell for accurate, sealed performance in demanding environments
-
480 indicator features LED display; 480 Plus includes a numeric keypad with battery-backed time/date
-
Factory calibrated for 5,000 divisions—ready to use out of the box
-
Durable NEMA Type 4X/IP66 washdown enclosure, ideal for wet or industrial areas
-
Rubber feet provide traction and surface protection, with a removable top cover for easy cleaning
-
Dual RS-232 serial ports for seamless connection to peripherals like printers or PCs
-
AC power input (100 to 240 VAC) with optional power adapters

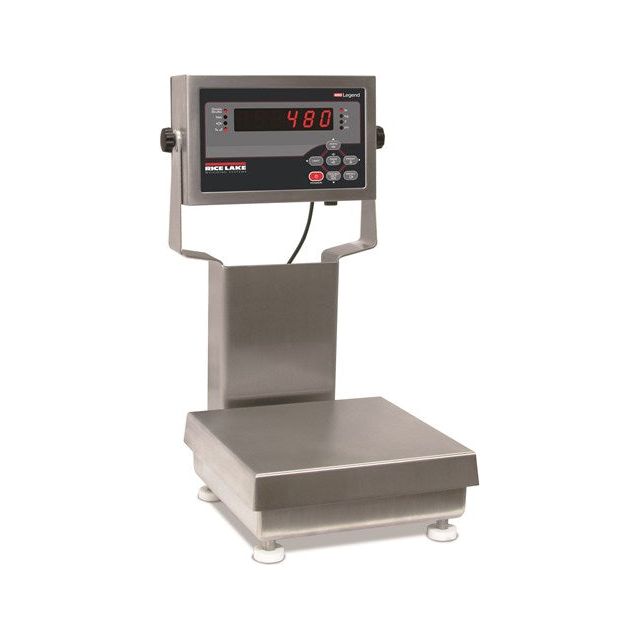

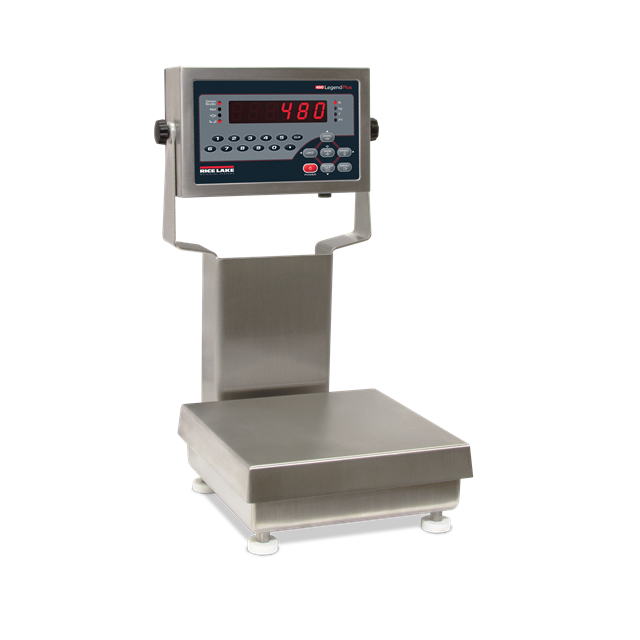

The Ready-n-Weigh CW-90B Bench Scale System with 480 Plus Indicator is designed for users who demand rugged accuracy, connectivity, and convenience in light-capacity weighing. This factory-calibrated system simplifies setup while providing Legal for Trade assurance with robust stainless steel construction.
The CW-90B’s IP67-rated aluminum load cell and 304 stainless steel housing ensure long-lasting use in wet or washdown environments. Paired with Rice Lake’s powerful Legend Series 480 Plus Indicator, this system offers flexible user interface options. Choose from a standard LED display or the Plus version featuring a numeric keypad and battery-backed time/date functions.
Whether used for portioning, packaging, or checkweighing, this versatile scale system brings industrial-grade performance and plug-and-play simplicity to your workbench.
Specifications
CW-90B Bench Scale
| Feature |
Specification |
| Capacity |
Up to 100 lb (varies by configuration) |
| Load Cell |
IP67 aluminum, environmentally sealed |
| Construction |
304 stainless steel (AISI304L, Ra = 45 ±10) |
| Overload Protection |
180% to 200% depending on capacity |
| Cable Length |
34 in |
| Operating Temperature |
14 °F to 104 °F (-10 °C to 40 °C) |
| Warranty |
Two-year limited |
| Certifications |
NTEP 12-123, Measurement Canada AM-5892C, CE, cULus |
480 Plus Digital Indicator
| Feature |
Specification |
| Display |
0.8 in, 6-digit LED (480); LCD backlit (482) |
| Material Rating |
Stainless steel, NEMA 4X/IP66 |
| Communication Ports |
Dual RS-232 (full duplex or 20 mA simplex) |
| Status Annunciators |
Gross, net, center of zero, standstill, units |
| Keypad (480 Plus) |
Flat membrane panel with tactile embossed keys |
| Baud Rates |
1200 to 38400 (configurable) |
| Warranty |
Two-year limited |
| Certifications |
NTEP 12-123, Measurement Canada AM-5892C, CE, UL/cUL |

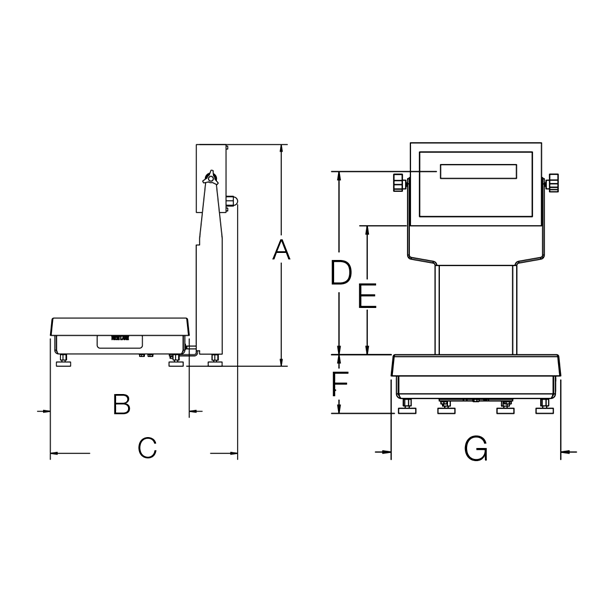

Dimensions
| Platform Size |
|
A |
B |
C |
D |
E |
F |
G |
| 10 × 10 in |
|
19.50 in |
10.25 in |
14.53 in |
13.25 in |
9.25 in |
4.25 in |
10.25 in |
| 12 × 12 in |
|
19.50 in |
12.25 in |
16.53 in |
13.25 in |
9.25 in |
4.25 in |
12.25 in |
Note: 1 in = 25.4 mm
Enhance your productivity with the Ready-n-Weigh CW-90B Bench Scale System, precision-calibrated and built to thrive in the toughest environments. Whether you need fast, repeatable weight readings or durable washdown capability, this system delivers. Request a quote now and let us customize your weighing solution.
