Key Highlights:
-
Complete bench scale system includes CW-90B stainless steel base, 12-inch column, and 680 digital indicator
-
IP67 aluminum load cell for accurate weighing in demanding, wet environments
-
LED backlit display, battery-backed time/date, and full numeric keypad
-
Built for washdown environments with IP69K-rated stainless steel enclosure
-
Ethernet TCP/IP, RS-232, RS-485/422, and Micro USB connectivity
-
Factory calibrated for 5,000 divisions—ready to use right out of the box
-
Removable top cover for simple cleaning and rubber feet for surface protection
-
Universal AC power input: 100 to 240 VAC

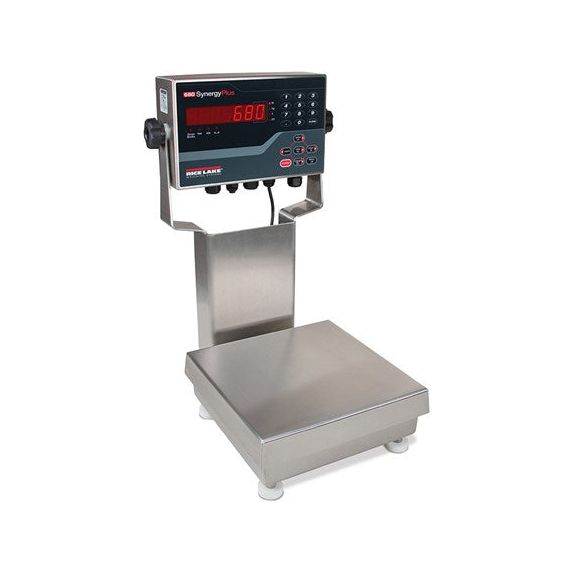

The Ready-n-Weigh CW-90B Bench Scale System with 680 Synergy Series Indicator delivers advanced performance, unmatched connectivity, and high durability—making it ideal for industrial, food processing, and harsh working environments.
Built with 304 stainless steel construction, the CW-90B platform withstands corrosive washdowns while the IP67 aluminum load cell ensures Legal for Trade accuracy. The 680 digital weight indicator expands usability with a backlit LED display, battery-backed clock, and intuitive 18-key interface that enhances operational efficiency.
Whether you need Ethernet, RS-232, or USB communication, this system integrates seamlessly into automated workflows or manual applications. Designed to handle light-capacity tasks with heavyweight dependability, this system is perfect for packaging, batching, or portion control.
Specifications
CW-90B Bench Scale
| Feature |
Specification |
| Capacity |
Up to 100 lb (varies by configuration) |
| Load Cell |
IP67 aluminum, environmentally sealed |
| Construction |
304 stainless steel (AISI304L, Ra = 45 ±10) |
| Overload Protection |
180% to 200% depending on capacity |
| Cable Length |
34 in |
| Operating Temperature |
14 °F to 104 °F (-10 °C to 40 °C) |
| Warranty |
Two-year limited |
| Certifications |
NTEP 95-072, Measurement Canada AM-5082, NSF, cFMus |
680 Synergy Series Indicator
| Feature |
Specification |
| Display |
0.8 in, seven-segment LED, 7 digits |
| Annunciators |
Eight LED |
| Keypad |
18-key membrane panel, tactile feel |
| Material & Rating |
AISI 304 Stainless steel, IP69K (IP66 with RJ45) |
| Communication Ports |
2 × RS-232, RS-485/422, Micro USB, Ethernet TCP/IP |
| Warranty |
Two-year limited |
| Certifications |
NTEP 19-021, Measurement Canada AM-6121C, CE, cULus |

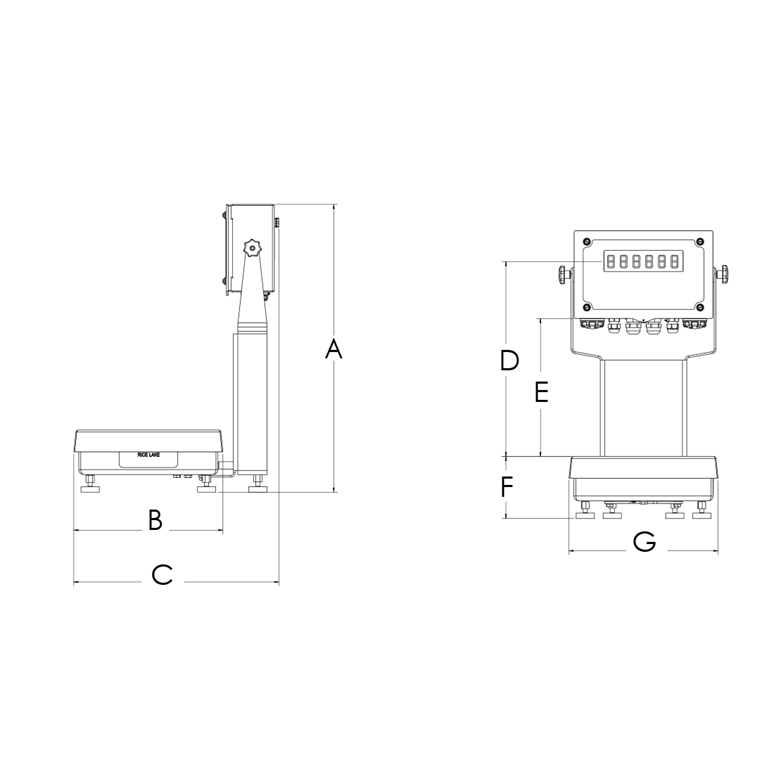

Dimensions
| Platform Size |
A |
B |
C |
D |
E |
F |
G |
| 10 × 10 in |
19.56 in |
10.25 in |
15.83 in |
13.31 in |
9.31 in |
4.25 in |
10.25 in |
| 12 × 12 in |
19.56 in |
12.25 in |
16.83 in |
13.31 in |
9.31 in |
4.25 in |
12.25 in |
Note: 1 in = 25.4 mm
Get performance and precision you can rely on with the Ready-n-Weigh CW-90B and 680 Indicator—designed for optimal durability, digital connectivity, and industrial-grade reliability. Request a quote today and streamline your operations with smart, scalable weighing.
Free Shipping: Available across 48 continental USA. Extra charges may apply for residential, farm, or rural areas.
Express Shipping: Overnight and faster shipping options available at additional costs. Quotes obtainable via email.
Delivery Time: Typically 5 to 7 business days, varying by location and external conditions.
Tracking Information: Provided via email upon shipment. Accessible through account login. Additional information available upon request.
Return Policy: 15-day return period for unused, original condition products. A 25% restocking fee applies. Buyer covers original and return shipping costs.
Customer Support: Contact at (844)-735-5386 or info@selletonscales.com for queries or concerns about shipping.
