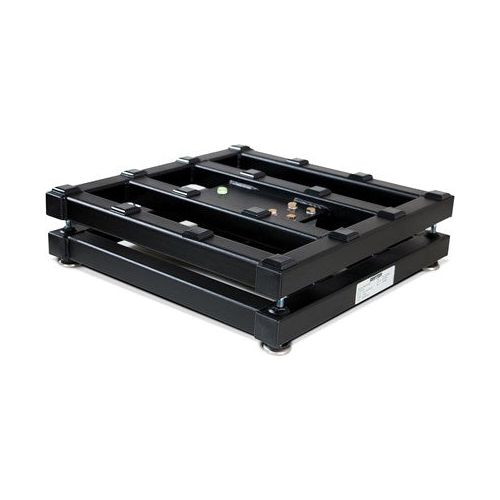

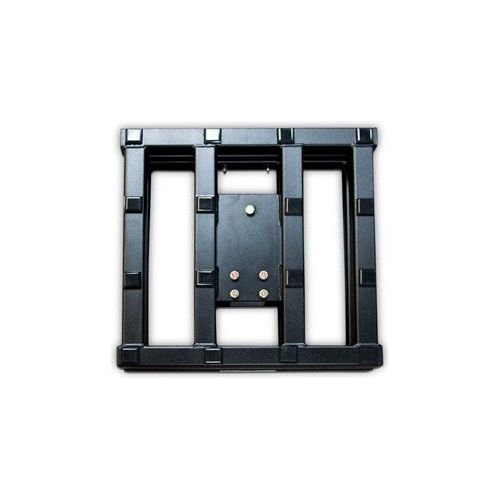

Painted mild steel tubular frame with 304 stainless steel cover
NTEP Certified IP66 aluminum, environmentally sealed load cell
Base isolates load cell from overloads and shock loads for extended durability
Five-point overload protection for consistent performance
Adjustable support feet provide strong grip without scratching surfaces
Ideal for dry industrial environments

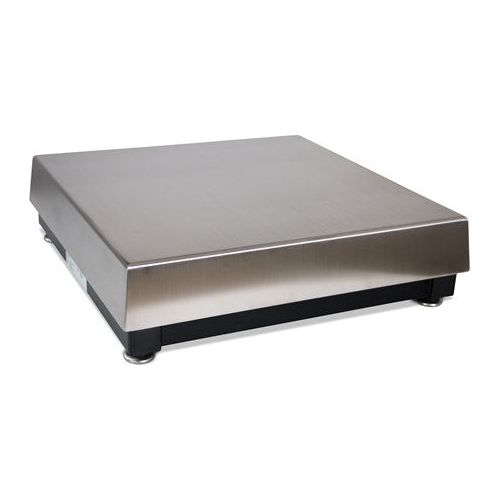

The BenchMark® MS Mild Steel Bench Scale is engineered for accuracy, durability, and long service life in dry industrial environments. Its rugged construction features a painted mild steel frame and a sanitary 304 stainless steel cover, combining strength with ease of cleaning.
Equipped with an IP66 aluminum, environmentally sealed load cell, this scale ensures precise and Legal for Trade measurements in demanding applications. Its shock-absorbing design with five-point overload protection enhances longevity by shielding critical components from physical stress.
Whether used for shipping, batching, or general industrial weighing, the BenchMark MS offers a versatile and cost-effective solution with standard and custom platform sizes to fit your needs.
| Feature | Specification |
|---|---|
| Load Cell | IP66 aluminum, environmentally sealed (NTEP Certified) |
| Output Impedance | 350 ohm |
| Maximum Overload | 150% to 200% depending on capacity |
| Overload Protection | Five-point, independently adjusted |
| Frame Material | Powder-coated mild steel (black) |
| Cover Material | AISI304L stainless steel, Ra=45 ±10 |
| Cable Length | 10 ft (3 m) |
| Temperature Range | 14 °F to 104 °F (-10 °C to 40 °C) |
| Approvals | NTEP 95-072, MC AM-5082 |
| Warranty | Two-year limited |

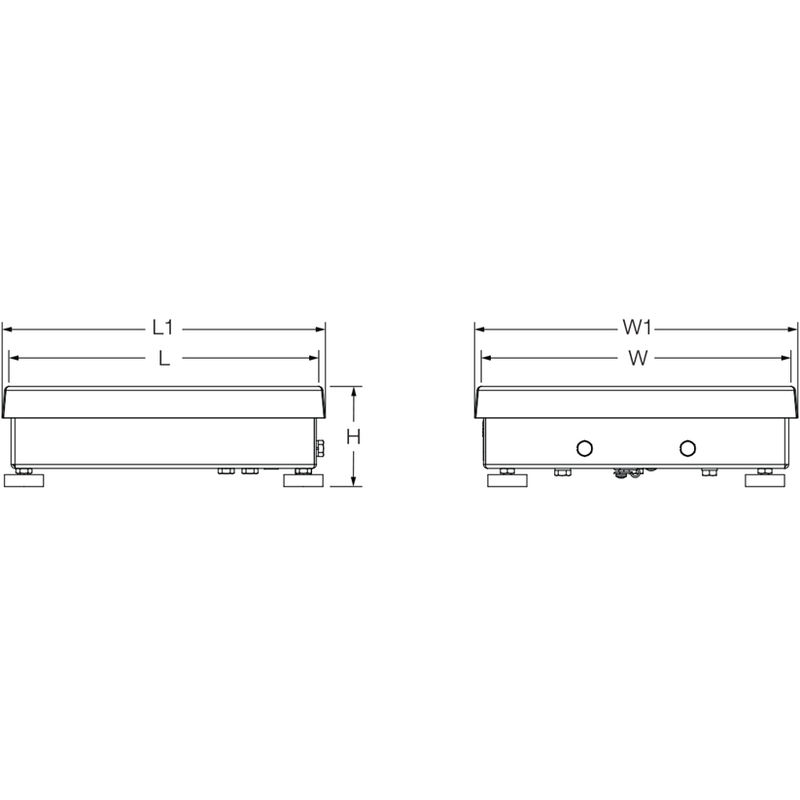

| Size | H | W | L | W1 | L1 |
|---|---|---|---|---|---|
| 12 × 12 in | 4.12 in | 12.00 in | 12.00 in | 12.50 in | 12.50 in |
| 12 × 18 in | 4.12 in | 18.00 in | 12.00 in | 18.50 in | 12.50 in |
| 18 × 18 in | 5.25 in | 18.00 in | 18.00 in | 18.75 in | 18.75 in |
| 24 × 18 in | 5.25 in | 18.00 in | 24.00 in | 18.75 in | 24.75 in |
| 24 × 24 in | 5.25 in | 24.00 in | 24.00 in | 24.75 in | 24.75 in |
Note: 1 inch = 25.4 mm
Built for strength, accuracy, and affordability, the BenchMark MS is the perfect fit for dry industrial weighing. Standard or custom sizes available. Contact us now for a quote or to learn more.
