Key Highlights:
-
Built for extreme sanitary environments—meets HACCP and sanitary design standards
-
Features an IP69K stainless steel hermetically sealed load cell for harsh washdown conditions
-
Constructed with continuous welds on a rigid 304 stainless steel frame and cover
-
Open-frame design and no exposed threads for easy cleaning and zero bacteria entrapment
-
Includes four adjustable stainless steel support feet for stable and level placement
-
Easy-to-remove top cover and heavy-duty frame for reliable performance under pressure
-
NTEP-certified load cell with FM approval and three-year limited warranty

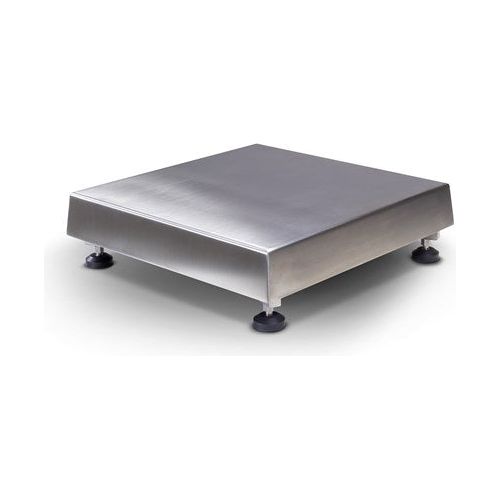

The BenchMark® HE-X Bench Scale by Rice Lake is designed for the most demanding sanitary processing environments, where cleanliness is not optional. Engineered with 304 stainless steel, continuous welds, and a hermetically sealed IP69K load cell, this scale stands up to the rigors of harsh washdowns and resists bacterial growth at every turn.

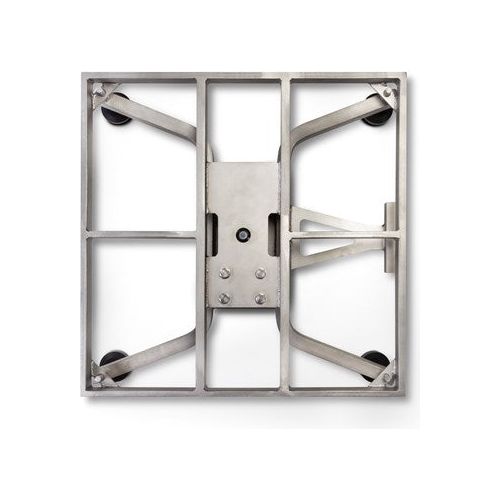

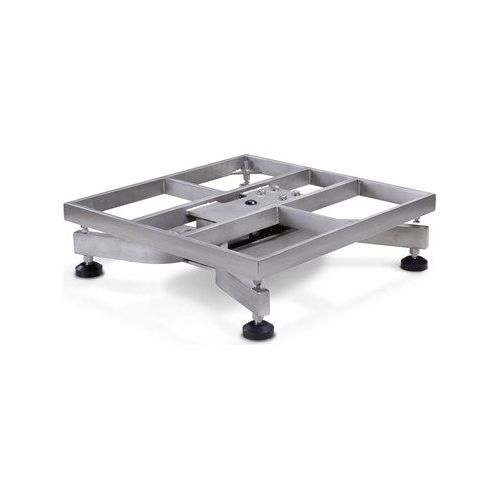

Ideal for food, pharmaceutical, and biotech industries, the HE-X features an open-frame design that eliminates exposed threads and hard-to-clean corners. It includes adjustable stainless steel feet for stability and a removable top cover for fast, effective cleaning.
Whether your facility requires strict compliance with HACCP or sanitary design principles, the HE-X delivers consistent, Legal for Trade performance in a rugged package.
Specifications
| Feature |
Specification |
| Load Cell |
IP69K stainless steel, hermetically sealed (NTEP certified) |
| Output Impedance |
1000 ohm |
| Maximum Overload |
150% to 200% (depending on capacity) |
| Overload Protection |
Five-point, independently adjusted |
| Scale Frame |
AISI304L, glass bead blasted |
| Scale Cover |
AISI304L, straight line finish, Ra = 45 ±10 |
| Cable Length |
10 ft (3 m) |
| Operating Temperature |
14 °F to 104 °F (-10 °C to 40 °C) |
| Warranty |
Three-year limited (includes water ingress) |
| Certifications |
Load cell FM approved |

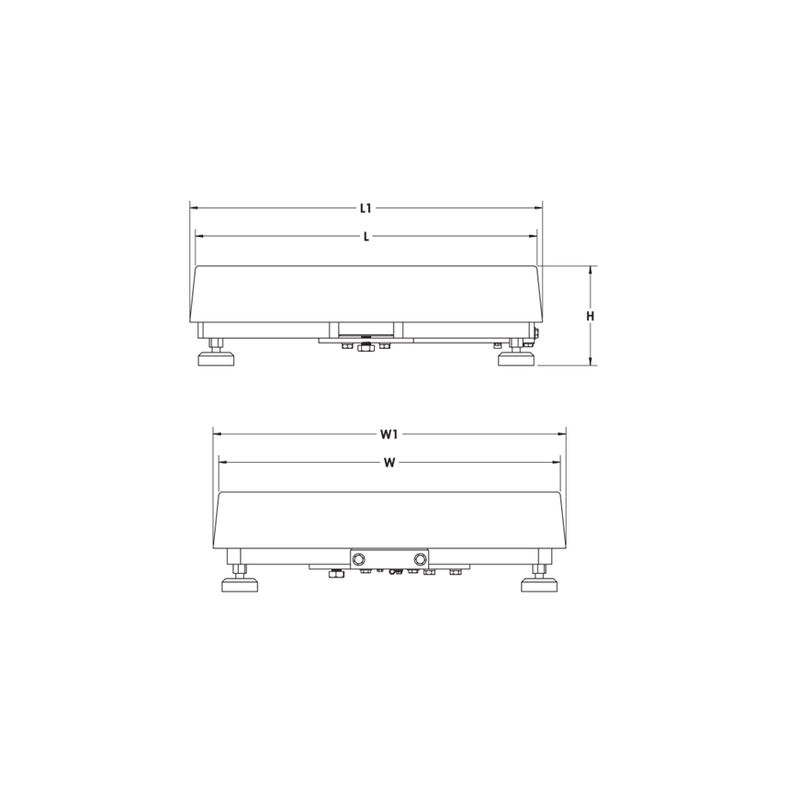

Dimensions
| Platform Size |
H |
W |
L |
W1 |
L1 |
| 12 × 18 in |
5.25 in |
18.00 in |
12.00 in |
18.50 in |
12.50 in |
| 18 × 18 in |
5.25 in |
18.00 in |
18.00 in |
18.75 in |
18.75 in |
| 18 × 24 in |
5.25 in |
24.00 in |
18.00 in |
24.75 in |
18.75 in |
| 24 × 24 in |
5.25 in |
24.00 in |
24.00 in |
24.75 in |
24.75 in |
Note: 1 in = 25.4 mm
Protect your process and product integrity with the BenchMark HE-X Extreme Washdown Bench Scale—precision-built for high-pressure, hygienic environments. Request a quote today to customize this scale for your facility.
