Trim Signal or Excitation for Up to 10 Load Cells
The JB1010T Signal/Excitation Trim Junction Box offers a universal solution for trimming load cells using either signal or excitation methods. Designed for tanks, trucks, hoppers, and floor scales, the JB1010T supports trimming of 1 to 10 load cells—even odd numbers—without requiring special modification.

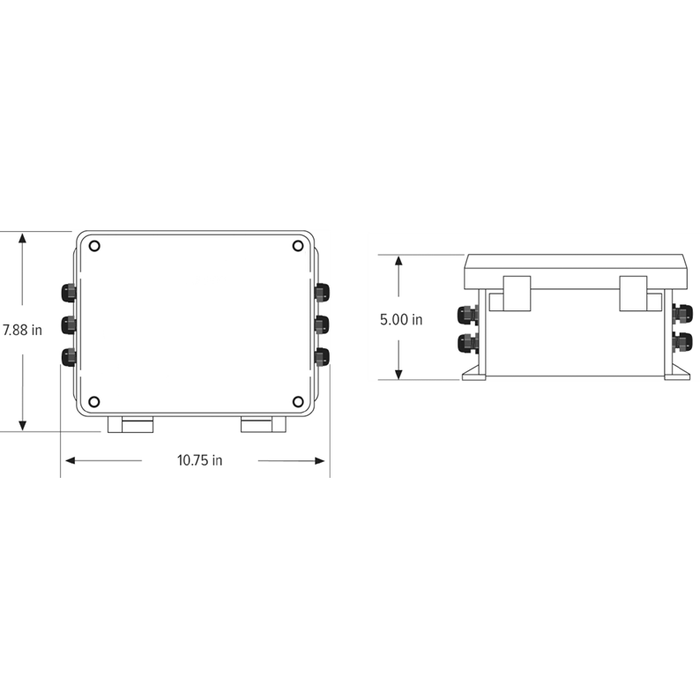

A fiberglass-reinforced polyester (FRP) enclosure, NEMA Type 4X rated, ensures rugged durability and resistance to moisture, dust, and corrosion. With built-in transient protection and cermet potentiometers for individual or section trim, the JB1010T is ready for field use in both new installations and retrofit scenarios.
Key Features
-
Dual Trim Modes
Offers both signal and excitation trimming to accommodate various load cell systems.
-
Supports 1 to 10 Load Cells
Can trim odd or even cell counts without special wiring adjustments.
-
Transient Protection Built In
Helps safeguard load cell electronics from voltage spikes and environmental stress.
-
NEMA 4X Enclosure
Weather-resistant fiberglass housing is ideal for harsh industrial conditions.
-
Universal Field Compatibility
Perfect for replacing old junction boxes or expanding existing weighing systems.
Applications
-
Tank and hopper weighing
-
Truck and railroad scales
-
Floor scale installations
-
Scale system expansions or upgrades
Reliable Performance with Flexible Trimming Options

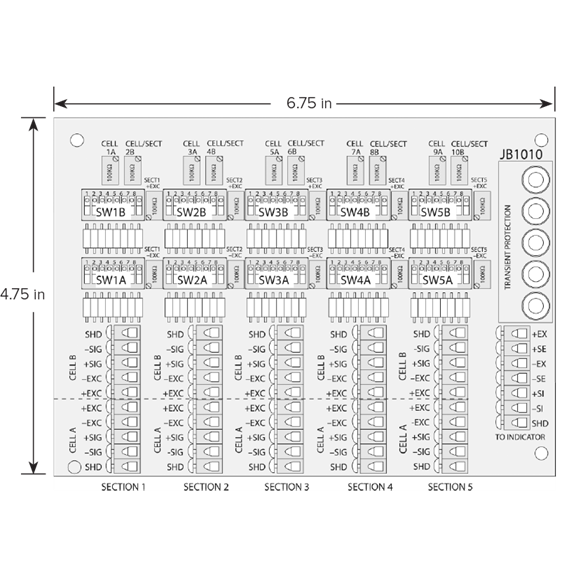

Whether you're trimming a new scale system or updating an older one, the JB1010T is built to deliver long-lasting performance. The internal configuration allows precise adjustment of individual load cells or entire sections using high-resolution 25-turn cermet potentiometers. Installation is fast and straightforward with waterproof cable strain reliefs and standard screw terminals.
Specifications
