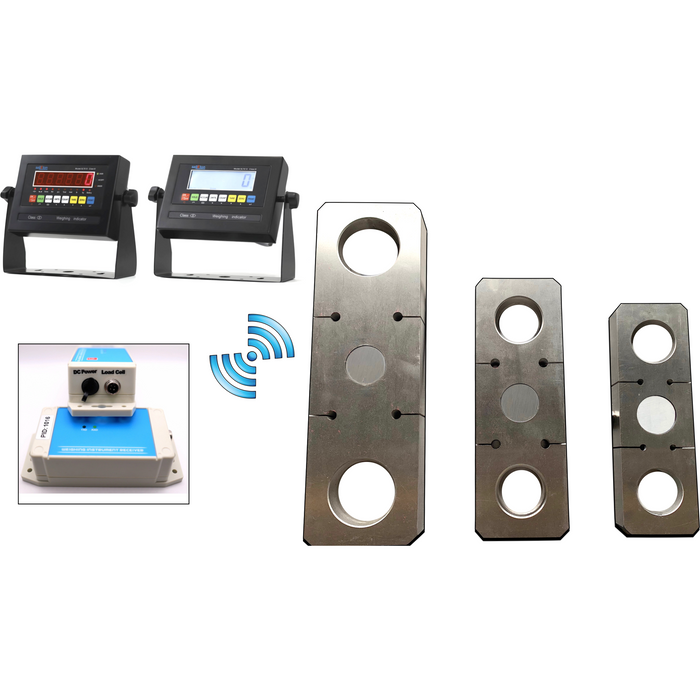

SL-927-W Wireless Tension Link Scale

The SellEton SL-927-W Wireless Tension Link Scale is your ideal solution.

This high-quality hanging crane scale is designed to provide accurate and reliable measurements for industrial applications involving cranes, hoists, and winches. With its advanced digital technology and robust construction, the SL-927-W enhances safety and efficiency in managing high-capacity loads, making it an essential tool for your operational needs.

Key Benefits:

• Accurate Load Management: Utilizes sophisticated tension link technology for precise weight measurements, which is crucial for industrial operations.
• Clear, Easy-to-Read Display: This model features a large 1-inch LCD, which allows for quick and easy reading of results, even from a distance.
• Extended Battery Life: Includes a rechargeable battery capable of up to 72 hours of continuous use, with an automatic shutoff feature to conserve power in varying light conditions.
• Durable Design: Constructed from Alloy Steel, this scale is built to withstand the demanding conditions of industrial environments.
• Wireless Functionality: Offers a 300-foot wireless range, providing flexibility and reducing risks associated with manual monitoring.
• Flexible Cable Options: The unit comes with a standard 26-foot load cell cable, but longer options are available to suit different setup needs.
• Reliable Power: It comes with a SellEton SL-7510 Mild Steel Indicator, selectable between lb and kg, powered by a rechargeable battery for continuous operation.
• NTEP Certified (Legal for trade): COC # 22-056

Indicator Key Features:

• Enclosure Options: Available in Painted Steel, Stainless Steel, or IP67 NEMA 4X Washdown Stainless Steel.
• Power Options: Includes an AC adapter; optional battery available.
• Weighing Units: Supports lb/kg, g/oz, lb (LCD only).
• Functions: Gross/Tare/Pre-Set Tare/Zero, multiple hold functions, count and accumulation weighing.
• Alarms: Features overload/underload alarms and an automatic error warning alarm.
• Display: 1” LED or LCD with backlight; displays up to 50,000 graduations.
• Connectivity: Capable of connecting to a remote display and multiple printers.
• Certifications: NTEP approved for 5,000 divisions. (COC # 22-027)
• Additional Features: Power saving mode, automatic date and time update, manual zero range setting, splash-proof keyboard, and display.

• Technical: Full Duplex RS-232 Serial Port, drives up to 6 350mA load cells.

Indicator Specifications:

• Display: LCD or LED, 1-inch with a 6-digit numeric readout.
• Units: lb, kg (primary), oz, g (LCD only).
• Accuracy: Class III, 5,000 e.
• Resolution: Up to 120,000 dd industrial, 10,000 dd HB44.
• Excitation Voltage: 5V DC.
• Output Current: Max 120 mA.
• Load Cell Compatibility: Up to 6 load cells of 350 Ω each.
• Display Resolution: 30,000; ADC: 2,000,000.
• Zero Stability Error: TKspn < ± 6 ppm/K.
• Sensitivity: Internal 0.3 μV/d.
• Input Voltage: -30 to +30mV DC.
• Power Supply: 100~240VAC @ 50/60Hz, consumption 5W @ 9VDC.
• Operating Temperature: 14 °F to 104 °F (-10 °C to +40 °C).
• Internal Resolution: 24-bit A/D Sigma-Delta, 1,048,000 d.
• Display Increment: Selectable 1, 2, 5, 10, 20, 50.
• Decimal Point: Selectable 0, 1, 2, 3, 4.
• Conversion Rate: 12 samples/second typical.
• Analog Signal Input Range: 1mV / V to 3mV/V.
• Analog Signal Sensitivity: Minimum 0.1 uV/graduation.
• Measurement Rate: 0~15mV.
• Auto Zero Tracking: 0 - 5 dd increments.

Customization Options for the SL-927-W Wireless Crane Scale

Enhance your operations with a range of add-on features designed to meet your specific needs:

• Printer Integration: Easily attach a printer for instant weight documentation, streamlining record-keeping processes.

• Scoreboard Options: Opt from six sizes of scoreboards for superior visibility, allowing distant viewing of weight data beyond the standard LCD indicator.

• Data Collection Software: Utilize our specialized software to track and manage weight records efficiently and efficiently.

• Indicator Stands: Select from various stands to ensure your indicator is optimally positioned for ease of use and visibility.

• Explosion-Proof Indicator: Equip your scale for use in intrinsically safe environments with our SL-7510-SS-C-EX Explosion Proof Indicator, preventing ignition in explosive atmospheres.

• Water-Resistant Upgrades: Enhance your scale's resilience in outdoor or moist conditions, ensuring continuous performance and durability.

• Output Options: Choose from 4-20mA or 0-5V relay outputs to seamlessly integrate with existing systems for enhanced data communication.

With the SL-927-W Wireless Tension Link Scale, you can feel the satisfaction and confidence of having accurate, real-time data at your fingertips. Integrating this scale into your operations will streamline your processes, enhance safety, and ensure precision in every load managed. Upgrade your equipment to SellEton Scales and experience a seamless, efficient workflow in your industrial tasks.
