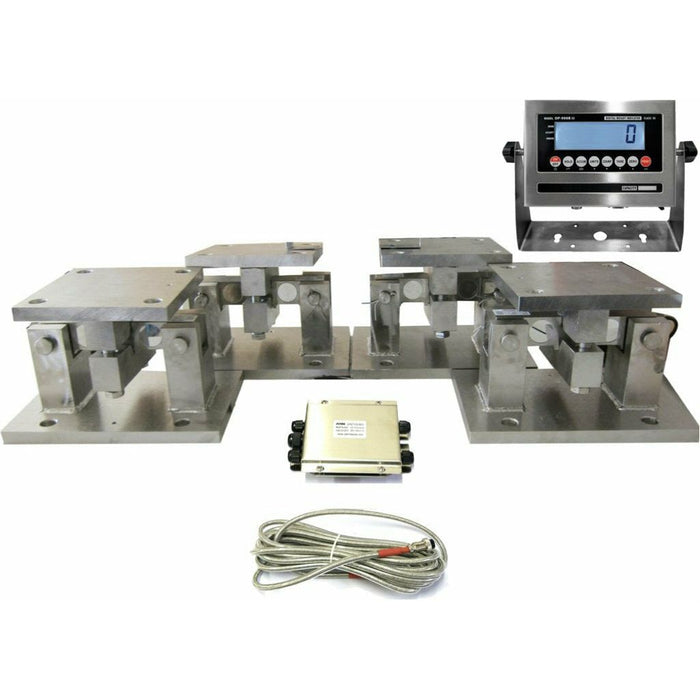

SellEton SL-313-TM Load cell Conversion kit weigh module for Scale Tank, Hoppers ( Double Ended Beam )

The SellEton SL-313-TM Load Cell Conversion Kit streamlines your weighing process and enhances accuracy, transforming any setup into a high-performance scale unit. Ideal for various industrial applications, including machinery, mixers, and more, this kit ensures reliable and precise weight data crucial for your operational success.

Key Benefits:

• Enhanced Accuracy: Utilize the double-ended beam load cell with stabilizer mounts for precise measurements under varying conditions.
• Robust Construction: Features plated alloy steel load cells and IP 67-certified alloy steel mounts designed to withstand harsh industrial environments.
• Comprehensive Kit: This kit has a stainless steel LCD or LED indicator, charger, connection cables, and a stainless steel junction box with a 4-channel summing card for seamless integration.
• Optimized Capacity: Each kit supports a total weight capacity of all four load cells, which is recommended to be 40% higher than your maximum load to prevent overload stress.
• Ease of Installation: The easy setup process ensures that tanks, hoppers, and other equipment can quickly turn into efficient weighing stations.
• Reliable Power: It comes with an SL-7510-SS-C Stainless Steel Indicator that is selectable between lb and kg and powered by a rechargeable battery for continuous operation.

Indicator Key Features:

• Enclosure Options: Available in Painted Steel, Stainless Steel, or IP67 NEMA 4X Washdown Stainless Steel.
• Power Options: Includes an AC adapter; optional battery available.
• Weighing Units: Supports lb/kg, g/oz, lb (LCD only).
• Functions: Gross/Tare/Pre-Set Tare/Zero, multiple hold functions, count and accumulation weighing.
• Alarms: Features overload/underload alarms and an automatic error warning alarm.
• Display: 1” LED or LCD with backlight; displays up to 50,000 graduations.
• Connectivity: Capable of connecting to a remote display and multiple printers.
• Certifications: NTEP approved for 5,000 divisions. (COC # 22-027)
• Additional Features: Power saving mode, automatic date and time update, manual zero range setting, splash-proof keyboard, and display.

• Technical: Full Duplex RS-232 Serial Port, drives up to 6 350mA load cells.

Indicator Specifications:

• Display: LCD or LED, 1-inch with a 6-digit numeric readout.
• Units: lb, kg (primary), oz, g (LCD only).
• Accuracy: Class III, 5,000 e.
• Resolution: Up to 120,000 dd industrial, 10,000 dd HB44.
• Excitation Voltage: 5V DC.
• Output Current: Max 120 mA.
• Load Cell Compatibility: Up to 6 load cells of 350 Ω each.
• Display Resolution: 30,000; ADC: 2,000,000.
• Zero Stability Error: TKspn < ± 6 ppm/K.
• Sensitivity: Internal 0.3 μV/d.
• Input Voltage: -30 to +30mV DC.
• Power Supply: 100~240VAC @ 50/60Hz, consumption 5W @ 9VDC.
• Operating Temperature: 14 °F to 104 °F (-10 °C to +40 °C).
• Internal Resolution: 24-bit A/D Sigma-Delta, 1,048,000 d.
• Display Increment: Selectable 1, 2, 5, 10, 20, 50.
• Decimal Point: Selectable 0, 1, 2, 3, 4.
• Conversion Rate: 12 samples/second typical.
• Analog Signal Input Range: 1mV / V to 3mV/V.
• Analog Signal Sensitivity: Minimum 0.1 uV/graduation.
• Measurement Rate: 0~15mV.
• Auto Zero Tracking: 0 - 5 dd increments.

Customization Options for the SL-313-TM Load Cell Kit

Enhance your operations with a range of add-on features designed to meet your specific needs:

• Printer Integration: Easily attach a printer for instant weight documentation, streamlining record-keeping processes.

• Scoreboard Options: Opt from six sizes of scoreboards for superior visibility, allowing distant viewing of weight data beyond the standard LCD indicator.

• Data Collection Software: Utilize our specialized software to track and manage weight records efficiently and efficiently.

• Indicator Stands: Select from various stands to ensure your indicator is optimally positioned for ease of use and visibility.

• Explosion-Proof Indicator: Equip your scale for use in intrinsically safe environments with our SL-7510-SS-C-EX Explosion Proof Indicator, preventing ignition in explosive atmospheres.

• Output Options: Choose from 4-20mA or 0-5V relay outputs to seamlessly integrate with existing systems for enhanced data communication.

When you choose the SellEton SL-313-TM Load Cell Conversion Kit, you're not just buying a product but investing in peace of mind. Imagine the confidence you'll feel with every precise measurement, knowing your operations are running smoothly with accurate data that helps you make informed decisions. Enhance your industrial efficiency today and experience the reliability of high-quality load cell kits!

Please contact our sales team for more information or to discuss your specific requirements. We're here to help you find the perfect weighing solution for your industrial needs.
