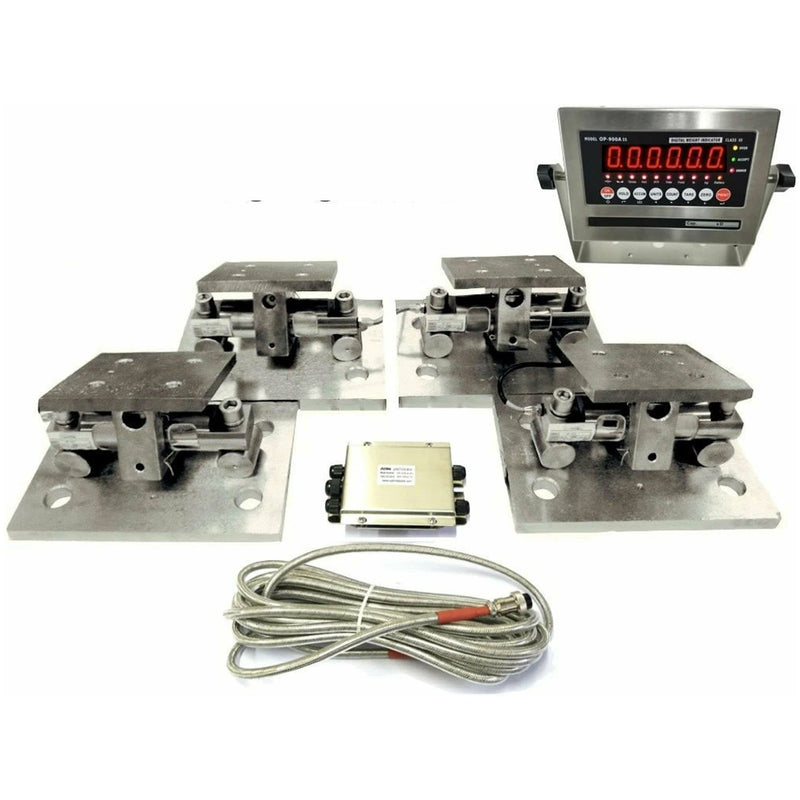

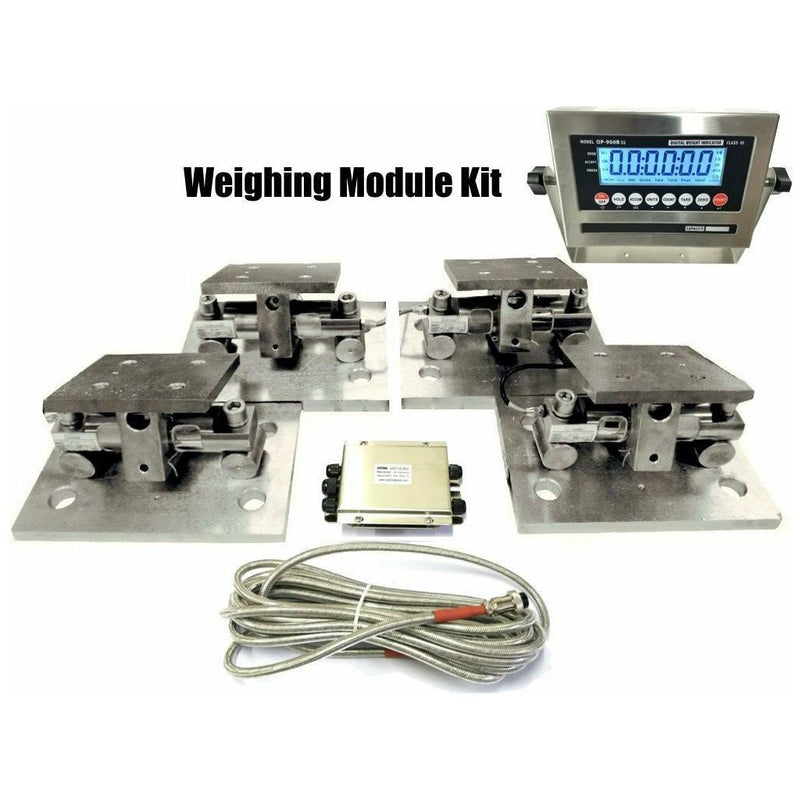

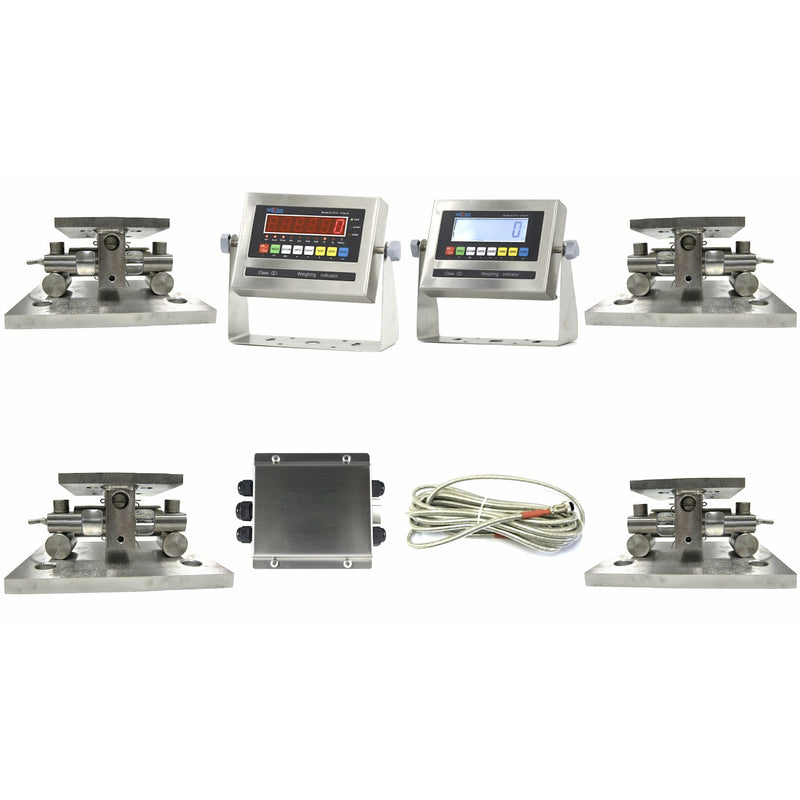

SellEton SL-320-TM Load cell Conversion kit weigh module for Scale Tank, Hoppers ( Circular Motion )

$4,949.99
$4,949.99
Sold out

Customizations Total: $0.00

  • Description
  • Brochure
  • Shipping Policy

SellEton offers Double-ended beam load cell conversion kits. This kit could be used to make tanks, hoppers, vessels, machinery, mixers & much more into a scale unit. Our SL-320-TM Load cell conversion kit module is specifically used in applications that have Circular & Linear movement.

Load cells are mounted to the feet or bottom of the platform. Stainless Steel Indicator, charger, connection cable & Stainless Steel junction box with a 4 channel summing card is also included with this package.

All packages include total weight capacity of all (4) load cells. As a general rule, it is best to have 40 % higher capacity than needed. this way, load cells don’t go under stress of too much weight.



Features:

Double-ended (Plated Alloy Steel) load cell with Stabilizer mounts

Stainless Steel LCD or LED indicator

Stainless Steel Junction box ( 4 Channel )

IP 67 Alloy Steel Mounts

Limited Warranty: 2 years



Indicator:

  • Stainless Steel casing
  • AC adapter included (Battery is optional)
  • Multiple weighing units: (lb/kg); (g/oz/lb:oz) available on LCD only
  • Gross/Tare/Pre-Set Tare/Zero
  • Multiple Hold functions
  • Count weighing
  • Accumulation weighing
  • Overload / Underload alarm
  • Power saving mode
  • Automatic date and time update
  • Ability to modify gravity based on
  • different geographical locations
  • 100% manual zero range setting
  • Automatic error warning alarm
  • Splash-proof  keyboard and display
  • Connects to a remote display
  • Connects to multiple printers
  • NTEP approved for 5,000 divisions
  • Certificate Number: 20-069
  • Displays up to 50,000 graduations
  • 1” LED or LCD display with backlight
  • Mounting bracket and Hardware (included)
  • Operates on 110V AC adapter (included)
  • Full Duplex RS-232 Serial Port
  • Drives up to 6 350Ω OHMS load cells



SellEton’s Shipping policy:

FREE SHIPPING to a business address in US 48 continental States.

Hawaii, Alaska & Puerto Rico customers please call for a shipping quote.



Please click on the PDF icon to view Brochure.
Brochure will open in a new tab.
