Tired of the hassle and limitations of traditional floor scales in harsh environments?

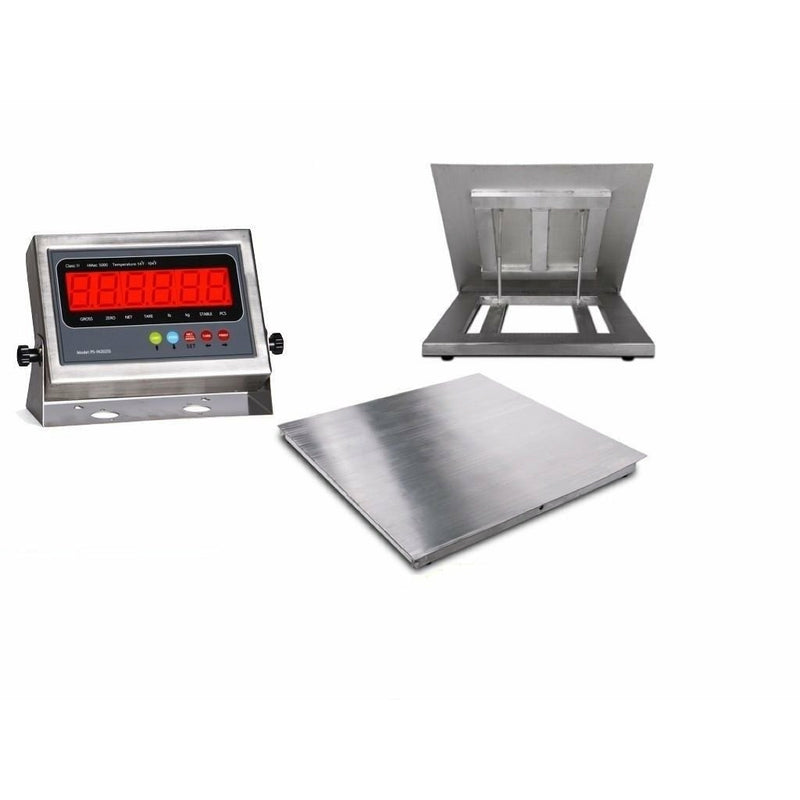

Discover the ultimate solution with the SellEton 4'x4' Stainless Steel Floor Scale & Indicator. Specifically designed to endure rigorous washdown processes, this top-of-the-line scale is your steadfast partner in industrial settings where precision and durability are paramount. The robust 304 stainless steel frame and deck ensure long-lasting reliability, while the sleek, brush-finished surface offers easy maintenance and sanitation.
Key Benefits:
- Exceptional Durability: This scale is constructed with a strong 304 stainless steel tube frame and withstands the toughest industrial conditions.
- Ease of Cleaning: Its flat top design and stainless steel composition make it simple to clean and maintain, perfect for hygienic-sensitive areas.
- Precision Weighing: Equipped with four stainless steel shear beam load cells, the scale delivers precise measurements with a 1000 x .2 lb capacity.
- Sturdy and Adjustable: Features four adjustable swivel steel feet, allowing stable setup on uneven surfaces.
- High-Quality Indicator: This product comes with a stainless steel indicator that is pre-configured and calibrated to 5000 divisions for immediate use.
- Water-Resistant: Stainless steel NEMA 4x junction box with signal trim board protects against water and dust ingress.
- Reliable Operation: This product features a SellEton PS-IN202 NTEP Certified Indicator with lb/kg options, powered by a rechargeable battery for uninterrupted use.
Indicator Key Features:
- Ease of Use: Simple calibration and operation process.
- Scale Base Compatibility: Works with any scale base.
- Remote Display Capability: This can be a remote display through slave mode.
- Connectivity Options: Offers connections for printers, scoreboards, and computers, including a mode for livestock auctions.
- Power Flexibility: Operates on an external AC/DC adapter or a rechargeable battery.
- Mounting Versatility: Comes with a stainless steel bracket for mounting on a table or wall.
Indicator Specifications:
- Display: 1.5-inch super large LED display.
- A/D Conversion Rate: Configurable.
- Load Cell Compatibility: Supports power for eight 350-ohm load cells.
- Units: Measurements in pounds (Lb) or kilograms (Kg).
- Operation: 6-button interface.
- Communication Port: RS-232 x 1.
- Power Supply: 110v cord.
- Mounting Bracket: Stainless steel for table stand or wall mount.
- Size: 9.3 inches x 6.5 inches x 2.8 inches.
Printer Specifications:
- Technology: Thermal printing.
- Dots Per Line: 384.
- Resolution: 8 dots per millimeter.
- Printing Speed: Maximum of 2.4 inches per second.
- Paper Feed: 0.005 inches.
- Bit/Line: 32 bits per line.
- Dot Dimensions: 6x8 (Width x Height).
-
Features: Supports graphics, paper checks, and online/offline status checks.
- Ports: Includes serial and infrared ports.
- Buffering: 32K.
-
Compatibility: ESC/P commands are compatible with IBM / EPSON printers.
- Operating Voltage: 7.5V.
- Current: Normal 1-1.5A, Peak 2-3A.
- Paper Width: 1.9 inches.
Customization Options for the SL-800-Series Floor Scale
Enhance your operations with a range of add-on features designed to meet your specific needs:
-
Printer Integration: Easily attach a printer for instant weight documentation, streamlining record-keeping processes.
-
Scoreboard Options: Opt from six sizes of scoreboards for superior visibility, allowing distant viewing of weight data beyond the standard LCD indicator.
-
Pit-Frame Installation: Choose between a permanent, in-ground pit frame installation or versatile industrial portable pit frames for flexible placement.
-
Data Collection Software: Utilize our specialized software to track and manage weight records efficiently and efficiently.
-
Ramp Access: Implement optional ramps to facilitate simple and safe loading and unloading using carts or pallet jacks.
-
Indicator Stands: Select from various stands to ensure your indicator is optimally positioned for ease of use and visibility.
-
Explosion-Proof Indicator: Equip your scale for use in intrinsically safe environments with our SL-7510-SS-C-EX Explosion Proof Indicator, preventing ignition in explosive atmospheres.
-
Water-Resistant Upgrades: Enhance your scale's resilience in outdoor or moist conditions, ensuring continuous performance and durability.
-
Bumper Guards: Install bumper guards to shield your scale from accidental impacts with forklifts or other heavy machinery.
-
Output Options: Choose from 4-20mA or 0-5V relay outputs to seamlessly integrate with existing systems for enhanced data communication.
Custom Manufacturing
If you require custom-made scales, SellEton Scales can manufacture scales in any size using carbon steel, galvanized steel, stainless steel, and aluminium.
Feel the confidence and ease of the SellEton Stainless Steel Floor Scale. Ideal for industries requiring stringent cleanliness and accuracy, this scale ensures that your operations run smoothly and efficiently. Say goodbye to the traditional scale challenges and hello to a seamless weighing experience that enhances your workflow and productivity. Invest in a scale that not only meets but exceeds your industrial needs.
Please contact our sales team for more information or to discuss your specific requirements. We're here to help you find the perfect weighing solution for your industrial needs.
Attention:
If you plan to use the scale outdoors, it is essential to have a Stainless Steel indicator, Stainless steel Load cells, & Stainless steel junction box. This ensures rust resistance and minimizes errors in readings caused by environmental factors.
Please note that our scales are not waterproof "AS IS." However, we offer an upgrade option to make them suitable for rainy or humid regions. This upgrade ensures reliable performance and longevity.
