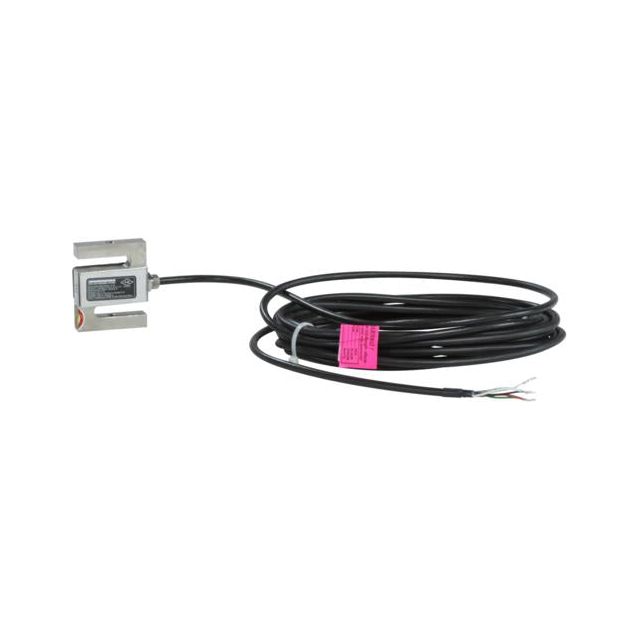

Rice Lake RL20000I Alloy Steel, S-Beam Load Cell

Rice Lake RL20000I Alloy Steel, S-Beam Load Cell

$333.99 - $1,141.99
$333.99
$333.99 - $1,141.99
$333.99

Key Features:

  • Versatile S-Beam Design: Ideal for scale conversions, tension and compression weighing applications, and industrial force measurement.
  • Durable Alloy Steel Construction: Built from high-alloy steel with nickel plating, providing exceptional strength, corrosion resistance, and long-term durability.
  • Wide Capacity Range: Available from 25 lb to 20,000 lb, making it suitable for various industrial and commercial weighing applications.
  • Compact and Rugged Design: Engineered for high-impact and demanding weighing environments.
  • Environmental Protection: IP67-rated sealing ensures resistance to dust, moisture, and harsh conditions for long-lasting reliability.
  • High-Precision Weighing Performance:
    • Full-scale output: 3.0 mV/V
    • Combined error: 0.02% full scale
    • Insulation resistance: 5,000 megohm
  • Safe Overload and High Durability:
    • Can withstand 150% full-scale overload, ensuring reliable performance under extreme conditions.
  • Multiple Cable Length Options for Easy Installation:
    • 20 ft standard cable
    • 30 ft cable (pn 17044 and 17045)
    • 35 ft cable (pn 21356)
  • Certified for Compliance:
    • NTEP Certified (Approval No. 90-158) for legal trade applications
    • cFMus approved, meeting industry safety and performance standards
  • Reliable Warranty: Backed by a two-year limited warranty, ensuring confidence in long-term use.

Enhance your weighing applications with the Rice Lake RL20000I Load Cell, built for precision, durability, and seamless integration. Order today to optimize your weighing system.

Specifications:

Specification   Details
Full Scale Output
3.0 mV/V
Input Resistance
385 (±5) ohm
Output Resistance
350 (±3) ohm
Material/Finish
High-alloy steel, nickel-plated
Operating Temperature
0 °F to 150 °F (-18 °C to 65 °C)
Compensated Temperature
14 °F to 104 °F (-10 °C to 40 °C)
Safe Overload
150% full scale
Rated Excitation
5 to 10 VDC (15 V max)
Combined Error
0.02% full scale
Insulation Resistance
5,000 megohm
Seal Type
Environmentally sealed, IP67
Cable Length
20 ft / 30 ft (pn 17044, 17045) / 35 ft (pn 21356)
Warranty
Two-year limited
Approvals
NTEP 90-158, cFMus

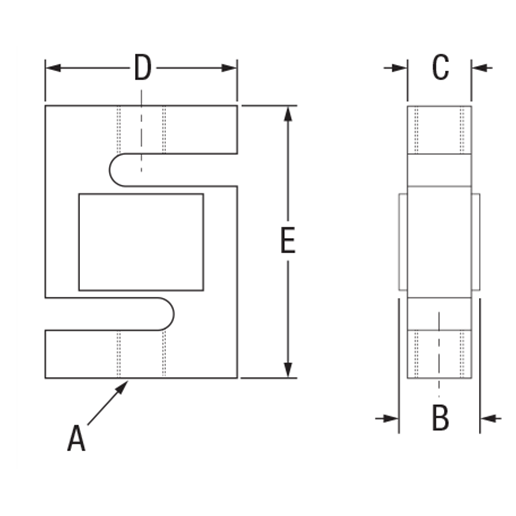

Load Cell Dimensions

Capacity (lb) A B   C D E
25 to 300 1/4-28 UNF 0.75
0.50 2.00 2.50
500 to 1,500 1/2-20 UNF 1.00
0.75 2.00 2.50
2,000 to 2,500 1/2-20 UNF 1.25
1.00 2.00 2.50
3,000 1/2-20 UNF 1.25
1.00 3.00 4.00
5,000 to 10,000 3/4-16 UNF 1.25
1.00 3.00 4.00
15,000 1-12 UNF 1.50
1.25 4.00 5.50
20,000 1 1/4-12 UNF 2.25
2.00 5.00 7.00
