Wire Rope | Rice Lake

Original price $66.99 - Original price $284.99
Original price
$66.99
$66.99 - $284.99
Current price $66.99

Key Highlights

  • Enhances alignment and increases load cell repeatability

  • Naturally dampens vibrations to ensure consistent performance

  • Available for standard use or Cardinal® FH/EP models

  • Custom wire ropes available for specific tension/capacity needs

  • Constructed to handle capacities up to 2,880

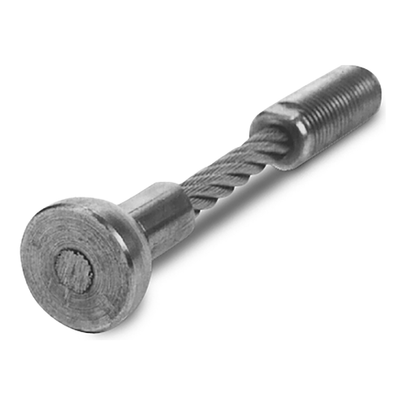

Wire Rope Assemblies are essential for improving the performance of suspended weighing systems by reducing unwanted forces such as side loads and vibrations. These assemblies allow for greater flexibility and more consistent load alignment, which significantly enhances the accuracy and repeatability of your load cells.

At SellEton Scales, we offer a wide range of wire rope assemblies, including preconfigured models for Cardinal® FH and EP scales, and customizable options to meet unique specifications. Our assemblies feature high-strength construction, various thread configurations, and are suitable for both standard and flexure-based systems.

Whether you're upgrading your existing system or creating a new custom solution, these assemblies serve as a critical component in protecting your load cells and ensuring long-term reliability.

Note: Wire ropes are not recommended for use with shock loads, chemical exposure, or torsional forces. Use safety chains or rods as backup when necessary.

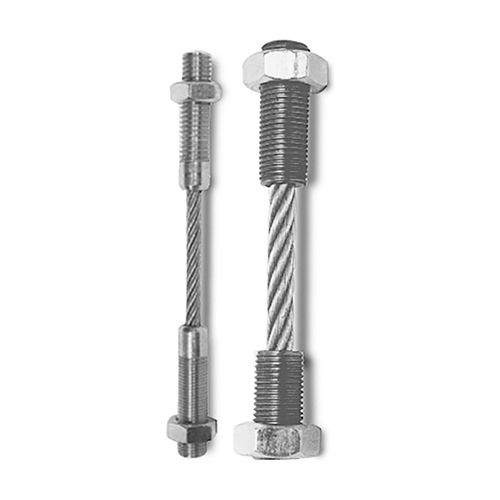

Standard Wire Rope Assemblies Dimensions

Part # A (in) B&C (in) D (in)      E Thread          F Thread        G (in) H (in) Safe Load
17760 0.87 0.50 0.87
1/4-20 UNC-2A
1/4-28 UNF-2A
0.12 4.00 400 lb
17762 1.25 0.50 1.25
3/8-16 UNC-2A
3/8-24 UNF-2A
0.18 5.00 850 lb
17766 1.62 0.50 1.62
1/2-13 UNC-2A
1/2-20 UNF-2A
0.25 6.50 1,400 lb
17765 1.62 0.50 1.62
1/2-13 UNC-2A
1/2-20 UNF-2A
0.25 5.50 1,400 lb
17764 1.00 - 1.37           1/2-20 UNF-2A
1/2-20 UNF-2A
0.25 4.00 1,400 lb
17768 2.00 - 2.50
3/8-24 UNF-2A
3/8-24 UNF-2A
0.12 5.50 400 lb
17769** 1.25 - 0.75
1/4-28 UNF-2A
1/4-28 UNF-2A
0.12 3.00 400 lb
17771** 1.25 - 0.75
1/2-20 UNF-2A
1/2-20 UNF-2A
0.25 3.00 1,400 lb
115292*** 1.25 - 0.75
1/4-28 UNF-2A
1/4-28 UNF-2A
0.12 3.00 300 lb
33084**** 1.31 - 1.00
1/2-20 UNF
1/2-20 UNF
0.125 3.62 850 lb

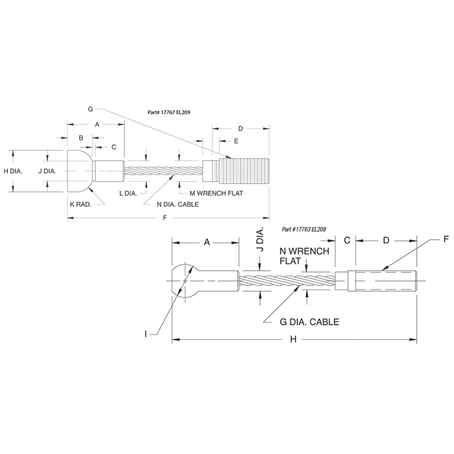

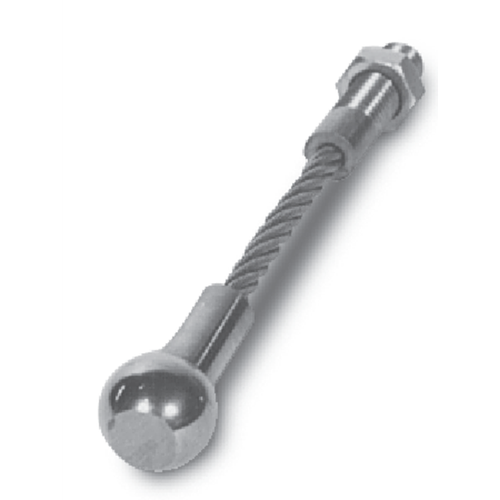

Cardinal® Wire Rope Assemblies Dimensions

Part # A B C D E F Thread G H I J       K L&M N Safe Load
17763 1.50 0.50 1.50 1/2-13 UNC 0.25 6.00 0.81 0.43
0.43 1,400 lb
17767 1.71 0.75 0.09 2.00 0.43 3/4-10 UNC-2A 1.25 0.60 0.50
0.625 0.375 2,880 lb



Choose SellEton Scales for wire rope assemblies that bring precision, safety, and flexibility to your weighing systems. Upgrade today to enhance your load cell performance and system reliability.
