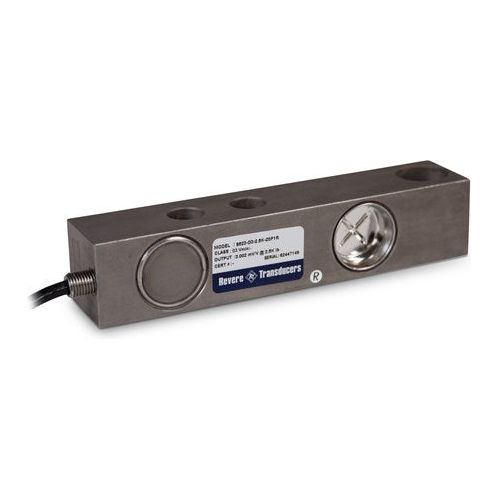

Key Features:

  • Premium Stainless Steel Construction – Designed for durability and corrosion resistance, ensuring long-term performance in hostile industrial environments.
  • IP67 Welded-Seal Protection – Fully sealed against moisture, dust, and contaminants, making it ideal for harsh weighing applications.
  • Ideal for Platform Scales & Process Weighing – Engineered for precision and stability, commonly used in industrial and commercial weighing systems.
  • Safe Overload & Sideload Protection – Can withstand 150% full-scale overload and 100% full-scale sideload, ensuring long-lasting reliability.
  • Minimal Deflection for Consistent Accuracy –
    • 1,000 lb: 0.016 in
    • 2,500 lb: 0.03 in
    • 4,000 lb: 0.041 in
    • 5,000 lb: 0.035 in
    • 10,000 lb: 0.042 in
  • Long Cable for Easy Installation – Includes a 20 ft cable, allowing for flexible mounting and system integration.
  • Certified for Industrial Use – cFMus-approved, meeting industry standards for legal trade and commercial weighing.

Available Capacities: 1,000 lb to 10,000 lb
Warranty: One-year limited


9523 Load Cell Specifications

Specification
Details
Full Scale Output
3.0 mV/V
Output Resistance
350 (±3.5) ohm
Input Resistance
350 (±3.5) ohm
Material/Finish
Stainless steel
Operating Temperature
0°F to 150°F (-18°C to 65°C)
Seal Type
Welded-Seal, IP67
Safe Overload
150% full scale
Safe Sideload
100% full scale
Rated Excitation
5 to 10 VDC (15 V max)
Combined Error
0.03% full scale
Non-Repeatability
0.01% full scale
Insulation Resistance
5,000 megohm
Deflection at Capacity
1,000 lb: 0.016 in, 2,500 lb: 0.03 in, 4,000 lb: 0.041 in, 5,000 lb: 0.035 in, 10,000 lb: 0.042 in
Cable Length
20 ft
Cable Color Code
Red (+Excitation), Black (-Excitation), Green (+Signal), White (-Signal)

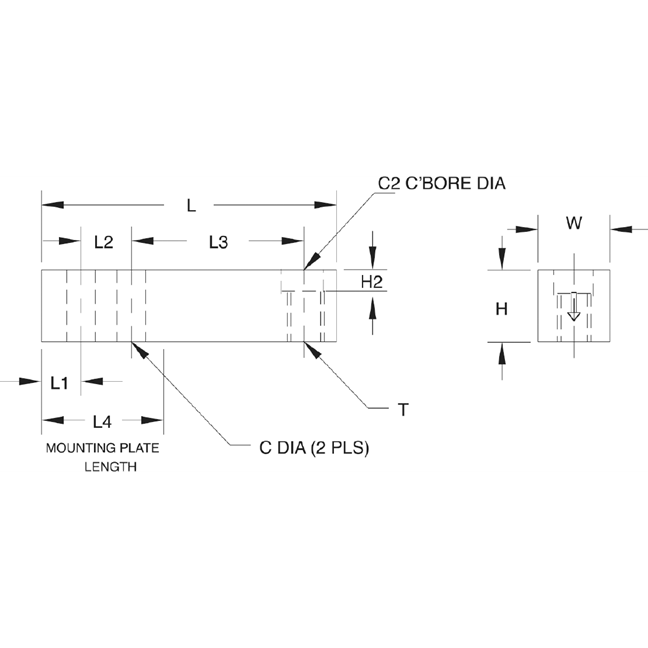

9523 Load Cell Dimensions (inches)

Rated Capacity (lb)
C C2 H H2 L L1 L2 L3 L4 T W
1,000 to 4,000
0.53 0.81 1.25 0.56 6.12 1.62 1.00 3.00 3.38 1/2-20 UNF 1.25
5,000 to 10,000
0.78 1.19 1.50 0.59 7.71 1.71 1.50 3.75 4.08 3/4-16 UNF 1.50
