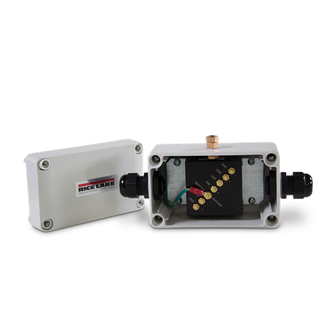

TP75 DC Transient Protector | Rice Lake

Original price $384.99 - Original price $384.99
Original price
$384.99
$384.99 - $384.99
Current price $384.99

Surge Protection for Load Cells in Harsh Outdoor and Industrial Environments

Key Highlights

  • Protects load cells and indicators from damaging voltage transients

  • Avalanche diode-based design ensures ultra-fast surge response

  • Six-wire protection with isolated shield line

  • Supports unlimited parallel load cells and up to eight in series

  • NEMA Type 4X enclosure for washdown and outdoor conditions

  • Two cable strain reliefs for secure connections

  • Designed for tank, hopper, truck, and railroad scale systems

  • Impact-resistant polycarbonate housing withstands tough environments

  • Compact, surface-mountable unit with terminal lugs provided

  • Covered by a one-year limited warranty

The TP75 DC Transient Protector is a dedicated surge protection solution for weighing systems in industrial and outdoor environments. Engineered to guard load cells and indicators against voltage transients, this protector features a six-wire design with separate shield line, ideal for precision systems requiring full signal integrity.

Its avalanche diode-based circuitry provides a rapid 5-nanosecond response, diverting high-energy surges before they reach sensitive components. Built to support an unlimited number of parallel load cells and up to eight load cells in a series, the TP75 is scalable and reliable.

Encased in a NEMA Type 4X-rated polycarbonate enclosure, it resists corrosion, impact, and water ingress—even during high-pressure washdowns up to 40 psi. The unit includes two nylon cable strain reliefs and internal terminal lugs for simple installation.

Perfect for truck scales, hopper scales, tank systems, and rail applications, the TP75 offers long-lasting protection where it’s needed most.

Specifications

Category Specification
Protection Type Six-wire with separate shield line
Max Excitation Voltage 22.8 VDC
Response Time Five nanoseconds
Peak Surge Current 100 amps
Supported Load Cells Unlimited in parallel, up to eight in series
Grounding Requirement 10 AWG wire or larger (wire not included)
Cable Fittings (2) Nylon strain reliefs for 0.187 to 0.312 in cable diameter
Enclosure NEMA Type 4X impact-resistant polycarbonate, 40 psi max washdown
Operating Temperature -4 °F to 149 °F (-20 °C to 65 °C)
Dimensions (L × W × H) 3.16 × 2.20 × 1.18 in
Mounting Surface mount, terminal lugs included
Warranty One-year limited



Safeguard your load cell systems with the TP75 DC Transient Protector. From washdown zones to rugged field installations, it’s engineered for durability, reliability, and rapid protection. Order now from SellEton Scales or request a quote based on your setup.
