Precision Load Alignment Washers for Heavy-Duty Bolted Connections
Key Highlights
-
Available in mild steel and stainless steel construction
-
Designed to compensate for angular misalignment in bolted joints
-
Ideal for load cells, mounting plates, structural equipment, and machinery
-
Reduces stress and deformation in bolted assemblies
-
Ensures even load distribution and improved mechanical integrity
-
Offered in sizes ranging from ¼ inch to 2 inch bolt diameters

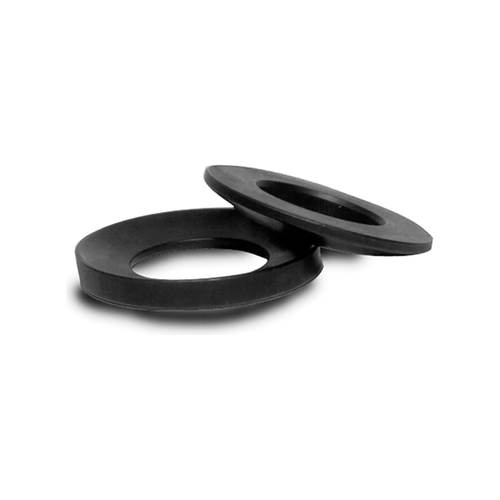

Spherical Washer Sets are engineered to correct misalignment in bolted connections by allowing precise seating of bolt heads and nuts. Made from either mild steel or stainless steel, these washer sets consist of a matching convex and concave pair, creating a spherical surface that adjusts to angular deviations between connected parts.
These washers are critical in high-precision environments where accurate load transfer and mechanical integrity are essential—such as in load cell installations, industrial mounting systems, and structural assemblies. Their robust construction and precision-machined profiles ensure optimal performance under compressive loads, while minimizing wear, loosening, and fatigue over time.
Specifications – Mild Steel
Part # | Bolt Size | A | B | C | D | |
---|---|---|---|---|---|---|
15196 | 0.25 in | 0.62 in | 0.20 in | 0.28 in | 0.31 in | |
15197 | 0.38 in | 0.88 in | 0.25 in | 0.41 in | 0.44 in | |
15198 | 0.50 in | 1.12 in | 0.31 in | 0.53 in | 0.56 in | |
15199 | 0.62 in | 1.38 in | 0.31 in | 0.66 in | 0.69 in | |
15200 | 0.75 in | 1.62 in | 0.38 in | 0.78 in | 0.81 in | |
15201 | 1.00 in | 2.00 in | 0.50 in | 1.06 in | 1.12 in | |
15202 | 1.25 in | 2.62 in | 0.50 in | 1.31 in | 1.38 in | |
15203 | 1.50 in | 2.88 in | 0.53 in | 1.56 in | 1.62 in | |
15205 | 2.00 in | 3.88 in | 0.81 in | 2.06 in | 2.12 in |
Specifications – Stainless Steel
Part # | Bolt Size | A | B | C | D | |
---|---|---|---|---|---|---|
33218 | 0.50 in | 1.12 in | 0.31 in | 0.53 in | 0.56 in | |
33220 | 0.75 in | 1.62 in | 0.38 in | 0.78 in | 0.81 in |
Ensure optimal alignment and load distribution with premium Spherical Washer Sets from SellEton Scales. Choose from mild steel or stainless steel to meet your structural or weighing system needs. Order now or contact us for technical assistance.
