Key Highlights
-

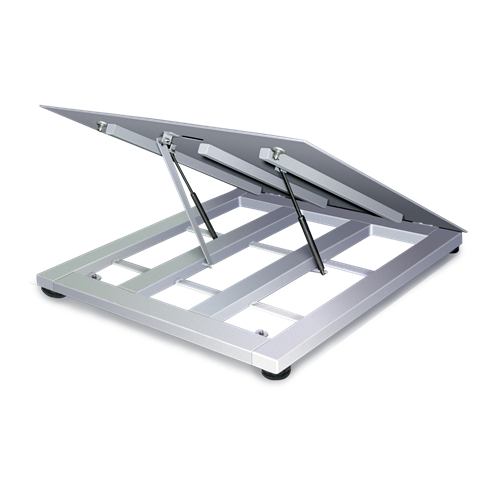

Smooth 304 stainless steel top deck with easy-lift gas shock mechanism
-
Manual drop-in-place safety bar for secure underdeck cleaning
-
Rigid 304 stainless steel frame, glass bead blasted finish
-
Meets HACCP requirements for food and chemical environments
-
Hermetically sealed IP69K stainless steel load cells (4 total)
-
Top access stainless steel TuffSeal® JB4SS junction box
-
20 ft SURVIVOR® EL147HE hostile environment load cell cable
-
Remote-mount junction box up to 10 ft away
-
4 adjustable stainless steel SUREFOOT™ feet
-
Built-in 1/2-20 NF eyebolt lifting holes for easy installation
Product Description

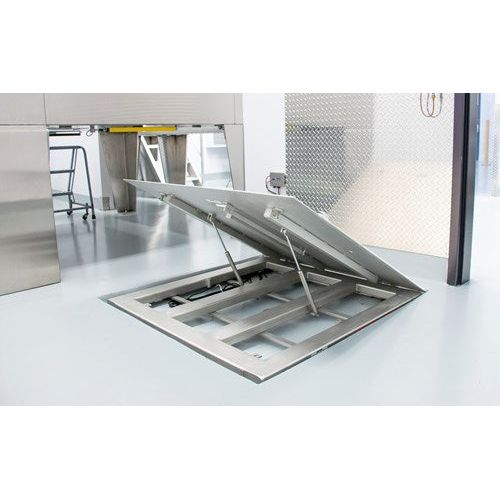

The RoughDeck® QC Floor Scale is engineered for extreme washdown environments that demand rigorous cleanliness and performance. Designed specifically for industries such as food processing, chemical manufacturing, and pharmaceutical production, this scale’s smooth stainless steel deck is easily lifted via gas shocks, allowing full underdeck access. The manual safety bar locks into place for extended cleaning without compromising safety.
Built with IP69K hermetically sealed stainless steel load cells, a 304 stainless steel tube frame, and a remote-mount junction box, this Legal for Trade scale supports high-pressure sanitation procedures while ensuring operational efficiency. If your facility demands compliance, hygiene, and uptime, the RoughDeck QC delivers on every front.
RoughDeck QC Floor Scale Specifications
| Feature |
Specification |
| End Load Capacity |
100% full scale at 2,000 lb and 5,000 lb
80% at 10,000 lb |
| Cable Length |
20 ft (6.1 m) |
| Construction |
AISI304L stainless steel, glass bead blasted finish |
| Deck Material |
3/16 in thick smooth stainless steel top plate |
| Junction Box |
TuffSeal® JB4SS, stainless steel, NEMA Type 4X |
| Load Cells |
Four stainless steel, hermetically sealed IP69K shear beam |
| Support Feet |
Four adjustable stainless steel SUREFOOT™ feet |
| Remote Junction Box |
Mountable up to 10 ft from scale |
| Lifting Holes |
Center hole threaded for 1/2-20 NF eyebolt |
| Manual Safety Bar |
Drop-in-place bar for secure cleaning support |
| Welding |
Stitch (consult for continuous) |
| Warranty (Limited) |
Weldment: Five-year
Load cells: Two-year
All other: One-year |
| Approvals |
NTEP CC 92-001, Class III 5,000 d |

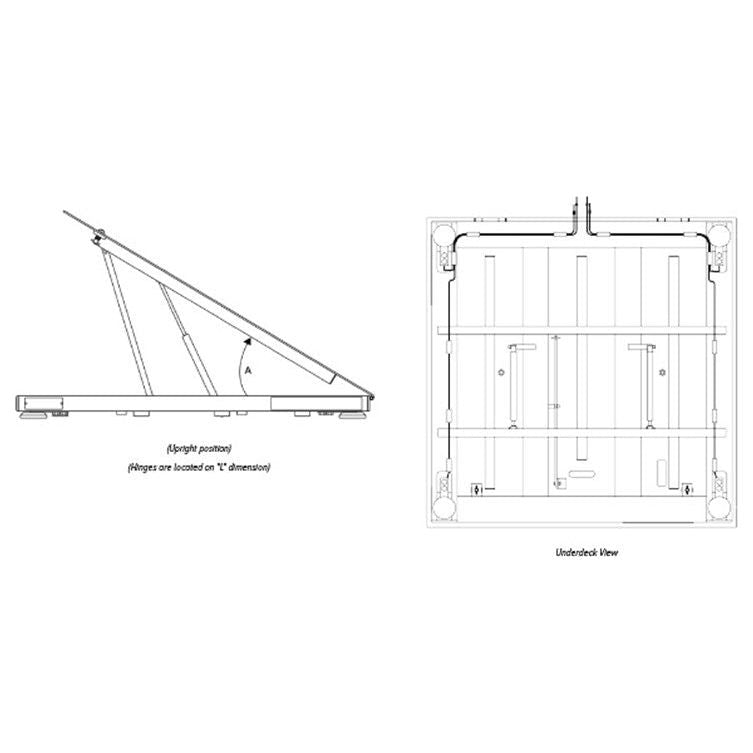

RoughDeck QC Floor Scale Dimensions
| Scale Size |
Degree of Lift |
| 2.5 ft x 2.5 ft |
37° |
| 3 ft x 3 ft |
30° |
| 4 ft x 4 ft |
30° |
| 4 ft x 5 ft |
30° |
| 4 ft x 6 ft |
26° |
| 5 ft x 5 ft |
25° |
| 5 ft x 7 ft |
24° |
Note: 1 inch = 25.4 mm

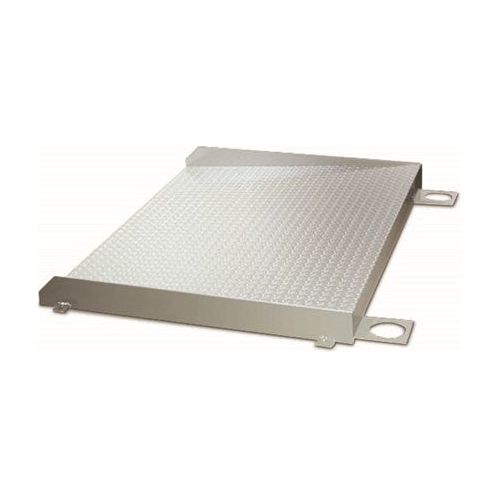

RoughDeck QC Ramp Angles of Incline
| Ramp Part # |
Ramp Size (W x L x H) |
Ramp Angle |
| 69193 |
2.5 ft x 4.0 ft x 3.5 in |
4.0° |
| 69194 |
3.0 ft x 4.0 ft x 3.5 in |
4.0° |
| 69195 |
4.0 ft x 4.0 ft x 3.5 in |
4.0° |
| 69217 |
4.0 ft x 4.0 ft x 4.5 in |
5.2° |
| 69218 |
4.0 ft x 4.0 ft x 4.5 in |
5.2° |
| 69222 |
4.0 ft x 5.0 ft x 5.5 in |
5.1° |
| 69219 |
5.0 ft x 4.0 ft x 4.5 in |
5.2° |
| 69220 |
5.0 ft x 4.0 ft x 4.5 in |
5.2° |
| 69223 |
5.0 ft x 5.0 ft x 5.5 in |
5.1° |
From HACCP compliance to fast cleaning and rugged durability, the RoughDeck QC is built for cleanliness, safety, and performance in the harshest environments. Order now or contact us to customize your QC configuration for your facility's hygienic standards.
