Key Features:
- Complete kit includes RL1600 stainless steel compression mounts and RL75016SS environmentally protected load cells
- Built with stainless steel construction for durability in harsh environments
- Self-checking design allows direct bolting to tank legs without extra mounting plates
- Double-ended shear beam design ensures high accuracy and reliability
- Compatible with VPG® Sensortronics® 65016W SS load cells
-
Capacity range: 1,000 lb to 75,000 lb per module
-
Applications: Ideal for medium to heavy-capacity tanks, bins, and hoppers in bulk material management
-
Includes JB4SS stainless steel NEMA Type 4X junction box for signal trimming
- Comes with 25 ft hostile environment EL147HE SURVIVOR® load cell cable
- Designed for indoor and outdoor process control operations
- Incorporates self-checking capabilities for thermal expansion and contraction

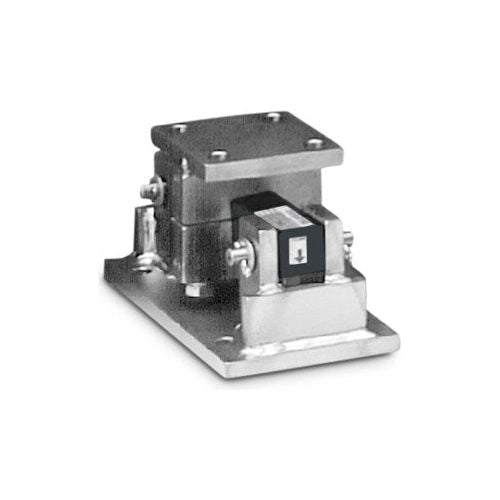

The Rice Lake RL1600 Series SS Stainless Steel Weigh Module is built for long-term durability and high-performance weighing in industrial applications. Designed for tank, bin, and hopper weighing, this weigh module provides superior accuracy and stability. The stainless steel construction ensures corrosion resistance, making it ideal for both indoor and outdoor environments.
The RL1600 Series incorporates a self-checking mechanism, eliminating the need for additional mounting plates or load buttons. This feature enhances stability, ensuring accurate weight measurements even under varying conditions.
This module kit includes RL75016SS environmentally protected stainless steel double-ended shear beam load cells, providing precision and reliability. Additionally, the included JB4SS NEMA Type 4X stainless steel junction box and 25 ft EL147HE SURVIVOR® hostile environment load cell cable ensure seamless integration into your weighing system.
Dimensions
| Capacity (lb/in) |
|
C |
H |
H1 |
H2 |
L |
L1 |
L2 |
L3 |
T |
W |
W1 |
W2 |
W3 |
| 1,000 to 5,000 |
|
0.56 |
5.00 |
0.50 |
0.50 |
9.25 |
2.75 |
4.00 |
6.25 |
1/2-13 UNC |
5.00 |
3.75 |
2.75 |
4.00 |
| 10,000 to 25,000 |
|
0.78 |
7.87 |
0.75 |
0.75 |
12.00 |
6.00 |
8.00 |
7.50 |
3/4-10 UNC |
8.00 |
6.00 |
6.00 |
8.00 |
| 50,000 to 75,000 |
|
0.78 |
9.25 |
1.00 |
1.00 |
16.25 |
6.50 |
9.00 |
11.50 |
1 1/4-7 UNC |
12.00 |
9.50 |
6.50 |
9.00 |
Why Choose the RL1600 Series Weigh Module?
The Rice Lake RL1600 Series offers precision, durability, and ease of installation in industrial weighing applications. Whether used in food processing, bulk material management, or other industrial operations, this weigh module ensures reliability and accuracy.
Ready to upgrade your weighing system? Order the RL1600 Series Stainless Steel Weigh Module today and experience superior performance!
