Key Highlights
-
Stainless steel, hermetically sealed design with IP68/IP69K protection
-
Available in capacities from 10,000 to 125,000 lb
-
Integrated lightning protection for added durability
-
NTEP Certified (CC 20-081) and cFMus approved
-
Wide operating temperature range: 0 °F to 150 °F
-
Precision output with 3.0 mV/V full scale
-
Suitable for industrial and harsh environment weighing
-
Two-year limited warranty

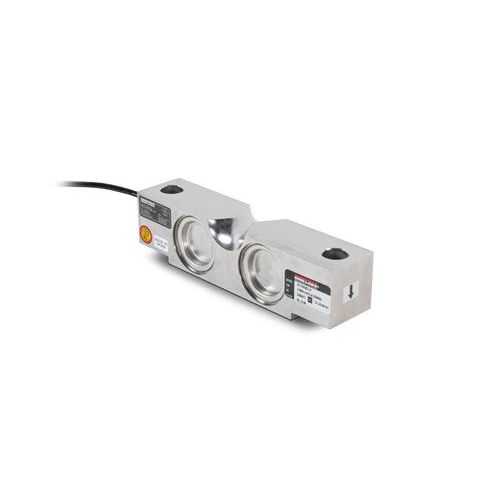

The Rice Lake RL75058S-LP is a premium stainless steel, double-ended shear beam load cell designed for high-capacity and high-performance weighing applications. Built with hermetic sealing and rated IP68/IP69K, this load cell thrives in harsh, washdown, or corrosive environments, making it ideal for heavy-duty industrial applications.
With capacities ranging from 10,000 lb up to 125,000 lb, and integrated lightning protection, the RL75058S-LP is engineered for durability, safety, and precision. This load cell offers 3.0 mV/V output, low combined error of 0.02% full scale, and high insulation resistance, ensuring accurate and stable readings across a wide range of environmental conditions.
Available with either 35 ft or 60 ft cable lengths, and polyurethane-jacketed for added protection, the RL75058S-LP supports a variety of weighing system integrations, including truck scales, hopper systems, and other custom industrial configurations.
Specifications
| Feature |
Specification |
| Rated Capacities |
10,000 to 125,000 lb |
| Material/Finish |
Stainless Steel |
| Seal Type |
Hermetically sealed, IP68/IP69K |
| Output |
3.0 mV/V |
| Input Resistance |
700 ±14 ohm |
| Output Resistance |
700 ±7 ohm |
| Excitation Voltage |
5–10 VDC (15 V max) |
| Temperature Range |
Compensated: 14–104 °F; Operating: 0–150 °F |
| Safe Overload |
150% full scale |
| Safe Sideload |
100% full scale |
| Insulation Resistance |
≥ 5,000 megohm |
| Cable Lengths |
35 ft or 60 ft |
| Cable Jacket |
Polyurethane |
| Warranty |
Two-year limited |
| Certifications |
NTEP CC 20-081, cFMus |
Cable Color Code
| Color |
Function |
| Red |
+Excitation |
| Black |
–Excitation |
| Green |
+Signal |
| White |
–Signal |

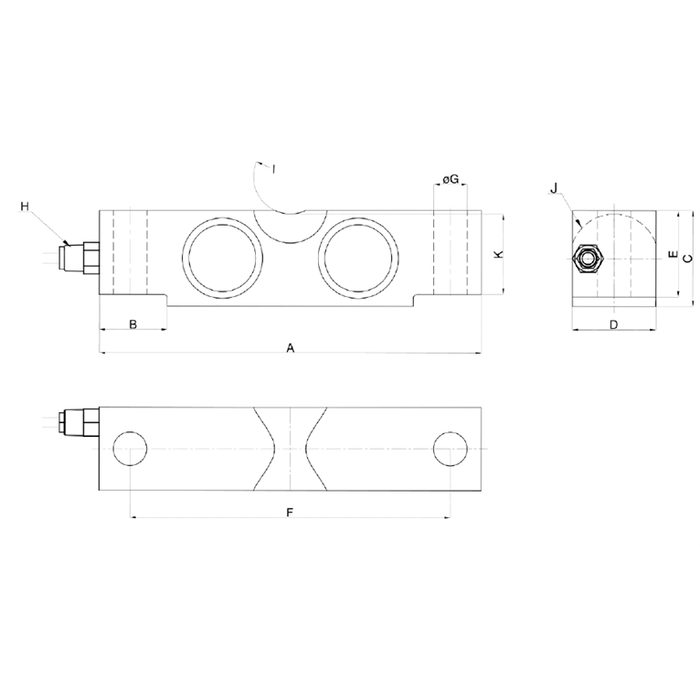

Dimensions Table (in inches)
| Capacity (lb) |
A |
B |
C |
D |
E |
F |
ØG |
H |
I |
J |
K |
| 10,000 to 25,000 |
7.75 |
1.38 |
1.94 |
1.69 |
1.70 |
6.50 |
0.68 |
1/4-18 NPT |
R19.1 |
R22.9 |
1.63 |
| 40,000 |
10.25 |
1.93 |
2.44 |
1.94 |
2.10 |
8.50 |
0.81 |
1/4-18 NPT |
R25.4 |
R28.5 |
2.00 |
| 50,000 to 75,000 |
10.25 |
1.93 |
2.94 |
2.44 |
2.65 |
8.50 |
1.06 |
1/2-14 NPT |
R25.4 |
R34.8 |
2.54 |
| 100,000 to 125,000 |
15.25 |
3.13 |
3.86 |
2.90 |
3.43 |
12.75 |
1.62 |
1/2-14 NPT |
R38.1 |
R45.7 |
3.30 |
Upgrade your heavy-duty industrial weighing systems with the RL75058S-LP Stainless Steel Load Cell from Rice Lake. Engineered for rugged environments and built to last, this precision load cell offers unmatched protection, reliability, and performance. Perfect for high-capacity scales and harsh settings, it's the ideal solution for industries that demand accuracy under pressure.
