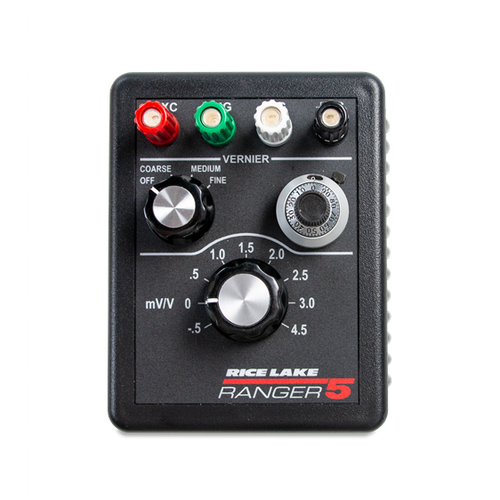

Ranger 5 Variable Range Simulator | Rice lake

Original price $798.99 - Original price $798.99
Original price
$798.99
$798.99 - $798.99
Current price $798.99

Key Highlights:

  • Compact and portable with ABS plastic case, weighs less than 1 lb

  • Fixed rotary switch provides nine steps from -0.5 mV/V to 4.5 mV/V

  • 10-turn vernier knob with locking graduated dial for fine adjustment

  • Selectable Vernier Ranges: Off, Fine, Medium, and Coarse

  • Ideal for A/D offset and gain calibration

  • Designed for testing, troubleshooting, and digital weight indicator calibration

  • Supports banana plugs or 14-gauge wire with binding post connectors


The Ranger 5 Variable Range Simulator is a precision calibration tool built to meet the needs of advanced technicians and field engineers. Designed specifically for troubleshooting and calibrating digital weight indicators, the Ranger 5 delivers unmatched versatility in a compact, lightweight form.

This simulator features a rotary switch that offers nine fixed steps from -0.5 mV/V to 4.5 mV/V, allowing users to simulate a broad range of input signals with ease. In addition, the 10-turn vernier dial provides enhanced accuracy for fine-tuning gain and offset calibration, with four selectable settings for different levels of control—Off, Fine, Medium, and Coarse.

With a rugged ABS enclosure, binding post connectors, and a precise temperature coefficient of ±5 ppm/°C, the Ranger 5 is built to withstand the field environment while ensuring consistent, repeatable results. Whether you're testing analog-to-digital converters or simulating various load cell conditions, the Ranger 5 is your reliable go-to simulator.



Ranger 5 Specifications

Specification
Details
Fixed Output Range
-0.5 mV/V to 4.5 mV/V (in 0.5 mV/V steps)
Vernier Ranges
Off, up to 0.5 mV/V (Fine), up to 1 mV/V (Medium), up to 1.5 mV/V (Coarse)
Impedance
350 ohm nominal
Nonlinearity
Less than 0.02%
Connectors
Binding posts (banana plug or 14 AWG wire compatible)
Temperature Coefficient
± 5 ppm/°C
Dimensions (L × W × H)
4.5 × 3.5 × 1.25 in
Enclosure Material
ABS plastic
Weight
Less than 1 lb
Warranty
One-year limited warranty

Reliable Calibration at Your Fingertips

Designed for professionals who demand accuracy and portability, the Ranger 5 simplifies the calibration process for weight indicators with both fixed steps and variable tuning capabilities. Rugged and lightweight, it’s the perfect tool for your test bench or field toolkit.
