Economical and efficient simulator for basic indicator testing
Smooth 10-turn potentiometer with large, easy-grip vernier knob
Output range from 0 to 3 mV/V for standard load cell simulation
Lightweight ABS plastic enclosure, weighs under 1 lb
Ideal for scale system troubleshooting, bench testing, and setpoint simulation
700 ohm impedance to match common load cell standards
Quick-connect binding posts for banana plugs or 14 AWG wire

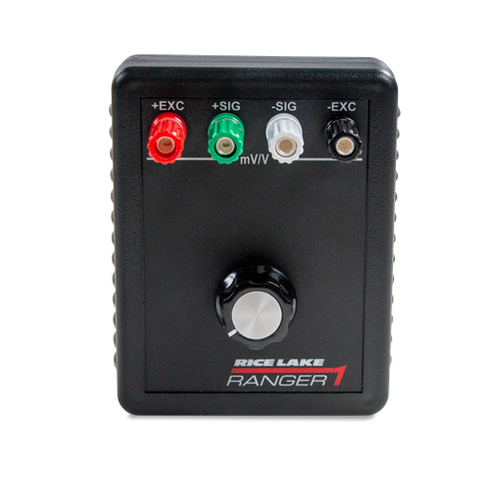

The Ranger 1 Variable Range Simulator from Rice Lake Weighing Systems offers a cost-effective solution for technicians needing to test and troubleshoot scale systems and indicators. Designed for simplicity and efficiency, the Ranger 1 delivers precise, adjustable output through a smooth 10-turn potentiometer, allowing for stable simulation from 0 to 3 mV/V.
Its compact ABS plastic housing makes it highly portable and rugged enough for everyday use in the field or workshop. Whether you're performing a stability check, setpoint simulation, or diagnosing indicator input issues, the Ranger 1 gives you a reliable reference tool without complexity.
With a nominal impedance of 700 ohms, it's compatible with most single-cell applications, and binding post terminals allow for fast wiring using banana jacks or 14 AWG leads. For basic calibration needs or quick diagnostic checks, the Ranger 1 remains a trusted and accessible solution.
| Specification | Details | |
|---|---|---|
| Output Range | 0 to 3 mV/V | |
| Impedance | 700 ohm nominal | |
| Temperature Range | 0 °F to 122 °F (-18 °C to 50 °C) | |
| Connectors | Binding posts for banana jacks or 14 AWG wire | |
| Temperature Coefficient | ±100 ppm/°C | |
| Dimensions (L × W × H) | 4.5 × 3.5 × 1.25 in (114 × 89 × 32 mm) | |
| Enclosure | ABS plastic | |
| Weight | Less than 1 lb | |
| Warranty | One-year limited |
Simple, compact, and dependable, the Ranger 1 offers a no-frills approach to load cell simulation. It’s an ideal tool for field techs and calibration pros who want reliable performance without complexity.
Talk to our team for more information on how the Ranger 1 can support your calibration and diagnostic needs.
