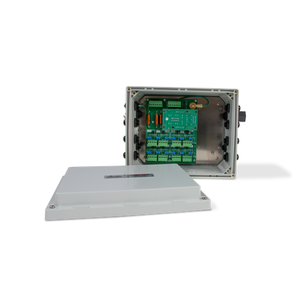

JB8SPT TuffSeal® Signal Trim Junction Box | Rice Lake

JB8SPT TuffSeal® Signal Trim Junction Box | Rice Lake

$804.99 - $804.99
$804.99
$804.99 - $804.99
$804.99

Heavy-Duty Signal Trimming with Built-In Surge Protection

Built for the most demanding outdoor environments, the JB8SPT TuffSeal® junction box offers advanced signal trimming and surge protection for truck, livestock, and railroad scale systems. It features a durable NEMA Type 4X-rated enclosure, removable connectors for easy field maintenance, and a conformal coated circuit board to prevent moisture and debris damage.

Designed for even-numbered load cell configurations (2, 4, 6, or 8 cells), this rugged junction box provides both individual and section trimming. Integrated transient protection safeguards your load cell system against unexpected power surges, while the PreVent™ breather vent equalizes internal pressure to avoid condensation buildup.

Key Features

  • Transient Surge Protection
    Built-in board protects internal electronics from damaging voltage spikes.

  • PreVent™ Breather Vent
    Minimizes internal condensation, ideal for outdoor applications.

  • Individual and Section Trimming
    Fine-tune load cell output easily with precision potentiometers.

  • Removable Connectors
    Pluggable screw-type terminals make installation and replacement quick and clean.

  • Expansion-Ready Design
    Features an integrated expansion port for system growth or integration.

Applications

  • Truck Scales

  • Livestock Scales

  • Railroad Track Scales

JB8SPT Specifications

Feature Details
Cable Fittings (9) 3/8 in NPT (0.157–0.314 in); (2) 1/2 in NPT (0.272–0.472 in)
Material/Rating NEMA Type 4X
Connectors Pluggable screw type, 12–28 AWG
Trimming Capability Individual cell and section trimming
Potentiometers 100,000 ohm, 25-turn cermet
Circuit Board 5.7 × 7.2 in, conformal coated
Temperature 0 °F to 122 °F (–18 °C to 50 °C)
Expansion Port Yes
Warranty One-year limited
Replacement Junction Boxes, Boards or Components Table
Model Complete J-Box Replacement Replacement Board Only Replacement Cord Grips Replacement Pressure & Condensation Vent Desiccant Packs
JB4SS 88956 88958 58983=PG7, 59001=PG11 88733 PreVent™ breather (vent), 88734 (vent nut) 92240
JB4ES 91779 89446 58983=PG7, 59001=PG11 88733 PreVent™ breather (vent), 88734 (vent nut) 92240
JB4SP / JB4SPT 91780 / 92762 88958 / 89894 58983=PG7, 59001=PG11 88733 PreVent™ breather (vent), 88734 (vent nut) 16039
JB4EP / JB4EPT 91781 / 92763 89446 / 89894 58983=PG7, 59001=PG11 88733 PreVent™ breather (vent), 88734 (vent nut) 16039
EL204 73428 88958 N/A N/A N/A
JB8SP 91782, 173807 - FM Approved 89889, 172415 - FM Approved 15655 (cord grip), 15656 (nut)=3/8" NPT, 15628 (cord grip), 15630 (nut)=1/2" SPT 88733 PreVent™ breather (vent), 88734 (vent nut) 16039
JB8SPT 91783 89889 (load cell), 89894 (transient protection) 15655 (cord grip), 15656 (nut)=3/8" NPT, 15628 (cord grip), 15630 (nut)=1/2" SPT 88733 PreVent™ breather (vent), 88734 (vent nut) 16039
EL304A 21169 21301 N/A N/A N/A
JB1010 36231 36351 N/A N/A N/A
JB1010ST 68813 68811 N/A N/A N/A
EL210 91781, JB4EP* 92472 58983=PG7, 59001=PG11 N/A N/A
EL211A 91780, JB4SP* 92473 (no section trim) 58983=PG7, 59001=PG11 N/A N/A
EL604-AL 88956, JB4SS* 88958 58983=PG7, 59001=PG11 N/A N/A
EL604STA 88956, JB4SS* 88958 58983=PG7, 59001=PG11 N/A N/A
EL604ETA 91779, JB4ES* 89446 58983=PG7, 59001=PG11 N/A N/A
EL504 21165 21296 N/A N/A N/A
JB808S 91782, JB8SP* 92471 15655 (cord grip), 15656 (nut)=3/8" NPT, 15628 (cord grip), 15630 (nut)=1/2" SPT N/A N/A
JB818ST 91783, JB8SPT* 77445, 89889, 89894 15655 (cord grip), 15656 (nut)=3/8" NPT, 15628 (cord grip), 15630 (nut)=1/2" SPT N/A N/A
