Key Highlights
-
Converts virtually any scale into a precision piece counting system
-
AC powered with optional rechargeable battery for portability
-
Compatible with floor scales, bench scales, or balances
-
Supports single or dual-channel scale input
-
Built-in 150-item memory for fast recall and repeat operations
-
Features WeighVault™ software for streamlined ID entry and reporting
-
Equipped with RS-232, Ethernet, USB, and wireless LAN options
-
Accepts scanner input for barcode integration
-
Ideal for inventory control, order fulfillment, and part verification tasks
Product Description

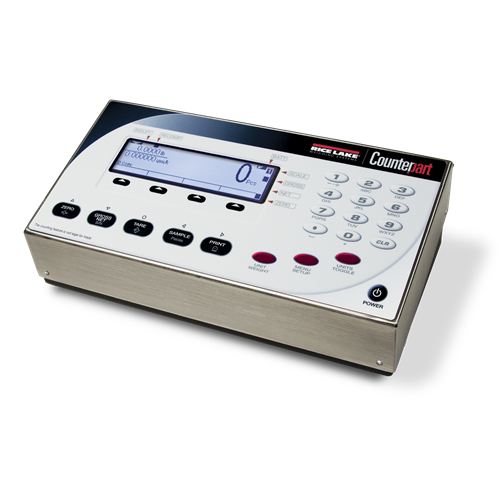

Rice Lake’s Counterpart® Configurable Counting Indicator is a powerful, flexible solution that transforms almost any standard weighing platform into a full-featured piece counting system. Whether you’re using a floor scale for heavy bulk components or a balance for micro parts, Counterpart adapts with ease—delivering unparalleled counting accuracy and workflow efficiency.

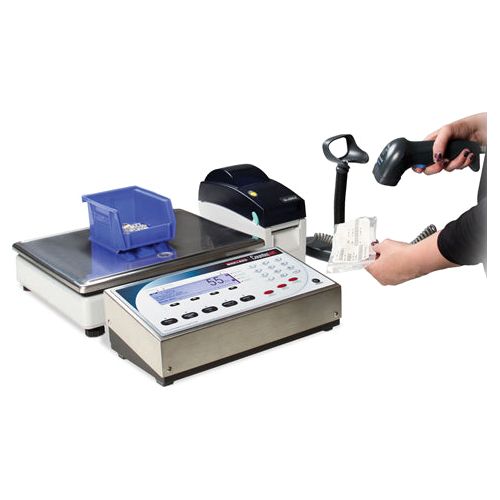

With a graphical LCD display, intuitive alphanumeric keypad, and support for 150 stored items, the Counterpart simplifies complex inventory processes. Operators can scan barcodes, recall saved products, and print custom labels using the built-in EPL-compatible printer formatting.
Counterpart is also ideal for networked environments, offering Ethernet TCP/IP, RS-232, and optional wireless LAN connectivity. With WeighVault™ software, you gain enterprise-level control over part IDs, tare weights, location tracking, and reporting—all from your desktop or network.
Whether used on the production floor, in a warehouse, or at a quality check station, the Counterpart delivers unmatched flexibility, durability, and ease of integration.
Specifications
| Feature |
Details |
| Power Source |
100–240 VAC, 47/63 Hz, 5 W (9–12 V output), optional Li-ion battery |
| Excitation Voltage |
5 VDC |
| Analog Signal Input |
0 to 4.5 mV/V |
| Input Sensitivity |
1.5 µV/grad (recommended) |
| A/D Conversion Rate |
7.5, 15, 30 samples/sec |
| Display |
240 × 64 pixel VGA LCD, transmissive, adjustable contrast |
| Keypad |
Full alphanumeric (24 tactile keys) |
| Digital I/O |
Four outputs |
| Load Cell Support |
Up to 8 × 350 ohm or 16 × 700 ohm load cells |
| Scale Channels |
1 or 2 |
| Resolution |
Internal: 1,000,000 counts; Display: up to 100,000 |
| Com Ports |
2 × RS-232, Ethernet, USB (optional), 20 mA, scanner input |
| Annunciators |
PCS, motion, gross/net/zero, low battery, scale ID, recomp |
| Units of Measure |
lb, kg, g, oz |
| Printer Support |
EPL label format (customizable for most printers) |
| Battery Runtime |
24–32 hrs (1 × 350 ohm load cell base), 6–8 hrs charge time |
| Temperature Range |
32 °F to 104 °F (0 °C to 40 °C) |
| Humidity |
85% |
| Memory |
150 item ID storage |

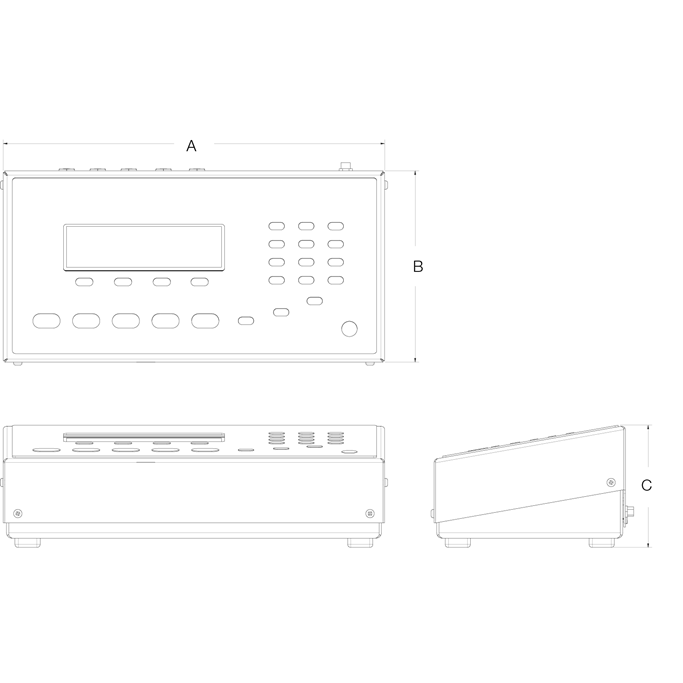

| Enclosure Dimensions |
12.25 × 6.25 × 4.00 in (311 × 159 × 102 mm) |
| Weight |
Approx. 4.4 lb (2 kg) |
| Warranty |
Two-year limited |
Optional Features
-
Rechargeable Lithium-ion Battery
-
Wireless LAN (Wi-Fi)
-
USB Port for External Keyboard
-
WeighVault™ Software for networked data collection and reporting
Applications
-
Industrial and commercial part counting
-
Receiving and shipping verification
-
Kit building and production line counting
-
Accurate packaging and inventory control
Approvals
Effortless Counting Starts Here
Upgrade your platform scale into a fully functional piece-counting system with the Counterpart® Configurable Counting Indicator—designed for smart integration, accuracy, and productivity.
