Key Highlights
-
Compact Stainless Steel Design: Built for long-lasting durability in demanding applications.
-
Vertical Mounting Capability: Specifically engineered for perpendicular installation where standard compression or tension mounts are not suitable.
-
Hermetically Sealed, IP69 Rated: Withstands moisture, dust, and harsh industrial environments.
-
High Accuracy: Provides a full-scale output of 2.0 mV/V with ±0.03% non-linearity.
-
Reliable Performance: Stable input/output resistance and high insulation resistance ensure consistent readings.
-
Extended Cable Length: Includes a 25 ft cable with color-coded wiring for easy installation.

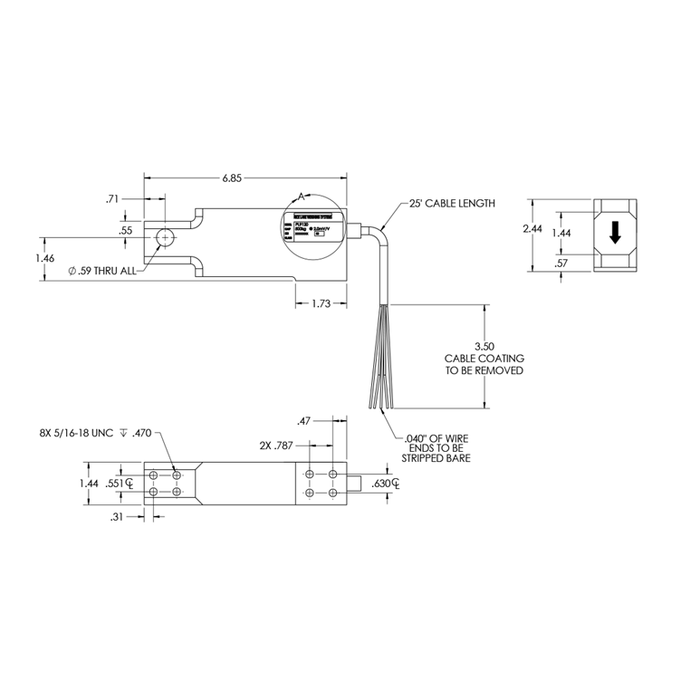

The PL9120 Stainless Steel Load Cell is a versatile and durable solution for applications requiring vertical or perpendicular mounting. Unlike traditional compression or tension mounts, the PL9120 is specifically designed for installations on vertical surfaces, making it ideal for specialized industrial, transportation, and structural weighing applications.
Constructed from stainless steel and rated IP69, this load cell provides hermetic sealing for superior protection against moisture, dust, and extreme conditions. With a full-scale output of 2.0 mV/V and non-linearity of just ±0.03%, it delivers accurate and reliable measurements even in challenging environments.
The included 25 ft shielded cable with clear color coding ensures straightforward wiring and secure connectivity. Backed by a one-year limited warranty, the PL9120 offers both durability and peace of mind for critical weighing operations.
Specifications
| Feature |
Specification |
| Full Scale Output |
2.0 mV/V |
| Output Resistance |
350 ohm (nominal) |
| Input Resistance |
385 ohm (nominal) |
| Material/Finish |
Stainless steel |
| Temperature Range |
14 °F to 104 °F (-10 °C to 40 °C) |
| Rated Excitation |
5 to 15 VDC |
| Non-linearity |
±0.03% full scale |
| Insulation Resistance |
5 mega ohms at 50 VDC |
| Seal Type |
Hermetically sealed, IP69 |
| Cable Length |
25 ft |
| Wire Color Code |
Red +Excitation, Green +Signal, Black -Excitation, White -Signal, Yellow Shield |
| Warranty |
One-year limited |
Choose the PL9120 Stainless Steel Load Cell for accurate, durable, and space-efficient weighing where perpendicular mounting is required.
Request a quote or place your order today to equip your system with reliable precision.
