Load Ranger Wireless Wheel Pad Scale

Load Ranger Wireless Wheel Pad Scale

$2,295.00 - $3,520.00
$2,295.00
$2,295.00 - $3,520.00
$2,295.00

Key Features

  • Wireless Communication – Supports up to 16 individual wheel pads communicating with the indicator via an industrial RF radio module.
  • Portable and Durable – Integrated wheels and non-slip rubber under the platform for stability and easy transport.

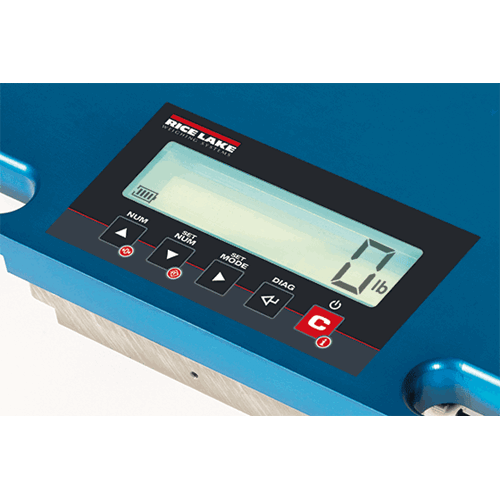

  • Built-in Indicator – Each pad features a built-in indicator with a 1-inch character display for quick and easy readings.
  • Long Battery Life – Internal rechargeable battery with 40 hours of continuous use per charge.
  • Rugged Construction – IP67-rated for protection against dust and water, making it suitable for various environments.

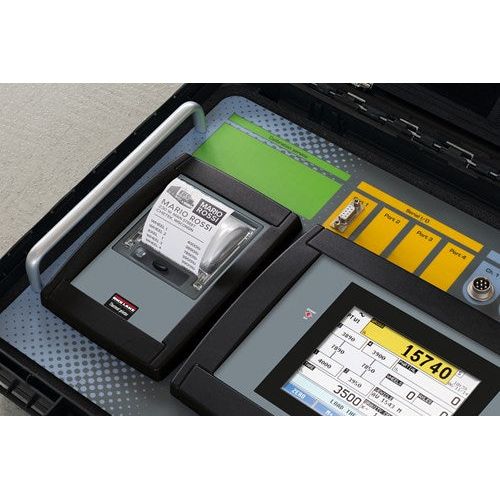

  • Optional Remote Indicator – Touchscreen indicator with a backlit graphic display, real-time clock, and integrated thermal receipt printer for enhanced usability.
  • Multi-Scale Function Mode – Weighs up to 16 individual pads (eight sets) simultaneously for accurate wheel and axle weight measurements.
  • Data Storage & Reporting – Stores up to 1,000 records and generates reports of the last 3,500 vehicles weighed.
  • Versatile Applications – Features include static axle weighing, center of gravity calculation, preset tare, and data selection.
  • Optional Accessories – Leveling modules, aluminum ramps, and NTEP Class IIII certification (select models only).

Portable & Precise Vehicle Weighing Solution

The Load Ranger Wireless Wheel Pad Scale is the perfect solution for mobile and temporary vehicle weighing applications. With its high-precision sensors and wireless connectivity, Load Ranger allows for real-time axle and wheel weight monitoring, making it ideal for industrial, commercial, and regulatory use.

Paired with an optional remote touchscreen indicator, the Load Ranger system provides advanced data tracking, automatic tare functions, and on-demand ticket printing, ensuring seamless integration into your workflow.



Load Ranger Specifications

Feature Details
Power Rechargeable battery (40-hour life), UL-approved wall adapter
Display 1-inch character display on each scale
Accuracy ±0.05% of rated capacity
Wireless Communication 2.4 GHz RF module
Construction Heavy-duty aluminum alloy
Operating Temperature 14°F to 104°F (-10°C to 40°C)
Storage Temperature -4°F to 140°F (-20°C to 60°C)
Wireless Communication Range Up to 160 ft (50 m)
Warranty Two-year limited
Approval NTEP 20-003P Class IIII (select models)



Load Ranger Dimensions

Platform Dimensions

Model
A
B
C
D
E
RF-MD
1 ft 8 in
2 ft
2.28 in
1 ft 4 in
1 ft 10 in
RF-WD
1 ft 10 in
2 ft 8 in
2.28 in
1 ft 6 in
2 ft 6 in
RF-XWD
2 ft
3 ft 3 in
2.28 in
1 ft 8 in
3 ft 1 in


Loading Surface Dimensions

Model
F
G
RF-MD
1 ft 3 in
1 ft 4 in
RF-WD
1 ft 11 in
1 ft 6 in
RF-XWD
2 ft 5 in
1 ft 8 in

Free Shipping: Available across 48 continental USA. Extra charges may apply for residential, farm, or rural areas.
Express Shipping: Overnight and faster shipping options available at additional costs. Quotes obtainable via email.
Delivery Time: Typically 5 to 7 business days, varying by location and external conditions.
Tracking Information: Provided via email upon shipment. Accessible through account login. Additional information available upon request.
Return Policy: 15-day return period for unused, original condition products. A 25% restocking fee applies. Buyer covers original and return shipping costs.
Customer Support: Contact at (844)-735-5386 or info@selletonscales.com for queries or concerns about shipping.
