Designed for single-ended beam load cells
Ball and cup interface provides point loading for enhanced accuracy
Made from 440C stainless steel for corrosion resistance and durability
Multiple thread sizes and dimensions to suit various load cell models
Replacement options available for specific branded load cells
Compatible with ball bearings and load receivers

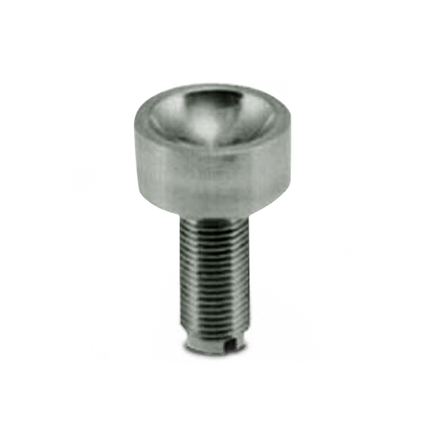

SellEton’s Load Cups are engineered to deliver precise point loading in compression-style weighing applications. By utilizing a ball and cup interface, they ensure optimal load transfer directly to the load cell, minimizing lateral force and enhancing weighing accuracy.
Crafted from high-strength 440C stainless steel, these cups are ideal for harsh industrial environments where corrosion resistance is key. Whether you're setting up a new system or replacing an existing part, these load cups are available in a variety of sizes and thread types to match the most widely used single-ended beam load cells.
Choose from standard models or specialized replacements, including a compatible option for the Cardinal® SCA-50,000 load cell. When paired with ball bearings and load receivers, these cups offer reliable and repeatable load cell performance.
| Part # | A | B | C | Thread Size (D) | |||
|---|---|---|---|---|---|---|---|
| 31911 | 1.70 in | 0.54 in | 1.07 in | 1/2-20 UNF | |||
| 212364 | 1.70 in | 0.54 in | 1.07 in | M8 | |||
| 33654 | 1.12 in | 0.54 in | 0.78 in | 1/2-20 UNF | |||
| 33653 | 1.50 in | 0.80 in | 1.12 in | 3/4-16 UNF | |||
| 33652 | 2.00 in | 0.85 in | 1.75 in | 1-12 UNF | |||
| 33651 | 2.85 in | 0.85 in | 1.75 in | 1-12 UNF | |||
| 33650 | 2.85 in | 0.85 in | 1.75 in | 1-14 UNF | |||
| 33647 | 2.75 in | 0.50 in | 0.75 in | 1/2-20 UNF | |||
| 72364 | 1.78 in | 0.53 in | 0.78 in | 1/2-20 UNF | |||
| 69431 | – | – | – | Replacement for Cardinal® SCA-50,000 |
Upgrade your weighing assembly with precision Load Cups from SellEton. Choose the right size for your load cell and enjoy enhanced accuracy, performance, and durability.
