JB8SP TuffSeal® Signal Trim Junction Box | Rice Lake

JB8SP TuffSeal® Signal Trim Junction Box | Rice Lake

$534.99 - $568.99
$534.99
$534.99 - $568.99
$534.99

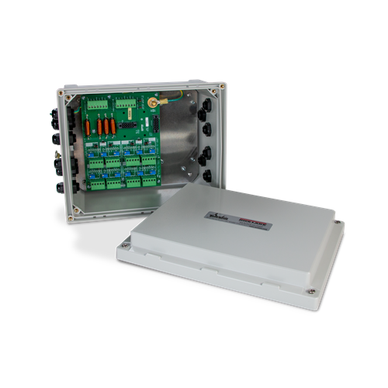

Rugged Junction Box for Precise Load Cell Trimming

The JB8SP TuffSeal® is built to handle tough environments where multiple load cells need to be trimmed and protected. Designed for truck, livestock, and railroad scales, this rugged NEMA Type 4X junction box offers exceptional protection with its polycarbonate enclosure, PreVent™ breather vent, and conformal coated circuit board.

Supporting two to eight load cells (even numbers only), the JB8SP makes setup easy with pluggable connectors and precise individual cell and section trimming. Its expansion port adds versatility for future system growth, and the removable connectors simplify service and replacements.

Key Features

  • Durable Polycarbonate Enclosure
    Seals out dust, moisture, and debris for reliable outdoor operation.

  • PreVent™ Breather Vent
    Reduces internal condensation by equalizing pressure during temperature changes.

  • Signal Trimming Options
    Offers both individual cell and range (section) trim capability.

  • Tool-Free Maintenance
    Easily service load cells using removable screw-type connectors.

  • Conformal Coated Circuit Board
    Adds an extra layer of protection to sensitive electronics in harsh conditions.

Applications

  • Truck Scales

  • Livestock Weighing Systems

  • Railroad Track Scales

JB8SP Specifications

Feature Details
Cable Fittings (9) 3/8 in NPT (0.157–0.314 in), (2) 1/2 in NPT (0.272–0.472 in)
Material/Rating NEMA Type 4X polycarbonate enclosure with SS screws and solid overlapping lid
Connectors Pluggable screw type, 12–28 AWG
Trimming Individual cell and range/section trim
Potentiometers 100,000 ohm, 25-turn cermet

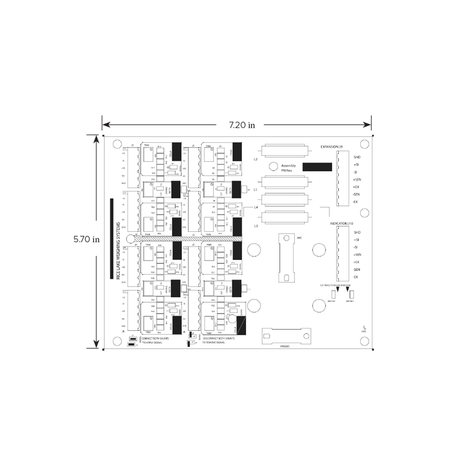

Circuit Board Size 5.7 × 7.2 in, with conformal coating
Operating Temperature 0 °F to 122 °F (–18 °C to 50 °C)
Expansion Port Yes
Approvals cFMus
Warranty One-year limited
Replacement Junction Boxes, Boards or Components Table
Model Complete J-Box Replacement Replacement Board Only Replacement Cord Grips Replacement Pressure & Condensation Vent Desiccant Packs
JB4SS 88956 88958 58983=PG7, 59001=PG11 88733 PreVent™ breather (vent), 88734 (vent nut) 92240
JB4ES 91779 89446 58983=PG7, 59001=PG11 88733 PreVent™ breather (vent), 88734 (vent nut) 92240
JB4SP / JB4SPT 91780 / 92762 88958 / 89894 58983=PG7, 59001=PG11 88733 PreVent™ breather (vent), 88734 (vent nut) 16039
JB4EP / JB4EPT 91781 / 92763 89446 / 89894 58983=PG7, 59001=PG11 88733 PreVent™ breather (vent), 88734 (vent nut) 16039
EL204 73428 88958 N/A N/A N/A
JB8SP 91782, 173807 - FM Approved 89889, 172415 - FM Approved 15655 (cord grip), 15656 (nut)=3/8" NPT, 15628 (cord grip), 15630 (nut)=1/2" SPT 88733 PreVent™ breather (vent), 88734 (vent nut) 16039
JB8SPT 91783 89889 (load cell), 89894 (transient protection) 15655 (cord grip), 15656 (nut)=3/8" NPT, 15628 (cord grip), 15630 (nut)=1/2" SPT 88733 PreVent™ breather (vent), 88734 (vent nut) 16039
EL304A 21169 21301 N/A N/A N/A
JB1010 36231 36351 N/A N/A N/A
JB1010ST 68813 68811 N/A N/A N/A
EL210 91781, JB4EP* 92472 58983=PG7, 59001=PG11 N/A N/A
EL211A 91780, JB4SP* 92473 (no section trim) 58983=PG7, 59001=PG11 N/A N/A
EL604-AL 88956, JB4SS* 88958 58983=PG7, 59001=PG11 N/A N/A
EL604STA 88956, JB4SS* 88958 58983=PG7, 59001=PG11 N/A N/A
EL604ETA 91779, JB4ES* 89446 58983=PG7, 59001=PG11 N/A N/A
EL504 21165 21296 N/A N/A N/A
JB808S 91782, JB8SP* 92471 15655 (cord grip), 15656 (nut)=3/8" NPT, 15628 (cord grip), 15630 (nut)=1/2" SPT N/A N/A
JB818ST 91783, JB8SPT* 77445, 89889, 89894 15655 (cord grip), 15656 (nut)=3/8" NPT, 15628 (cord grip), 15630 (nut)=1/2" SPT N/A N/A
