Key Features
-
Sums two, three, or four single load cell outputs
-
Jumpers for enabling/disabling individual load cells
-
Fiberglass Reinforced Polyester (FRP), NEMA Type 4X enclosure
-
PreVent™ breather vent protects against condensation
-
Signal trim with individual cell adjustments
-
Spring clamp screwless connectors (12 to 28 AWG)
-
Expansion port for modular system configurations
-
Conformal coated circuit board for durability
-
Wide temperature range: 0 °F to 122 °F
-
One-year limited warranty
-
Ideal for tank and hopper scale applications

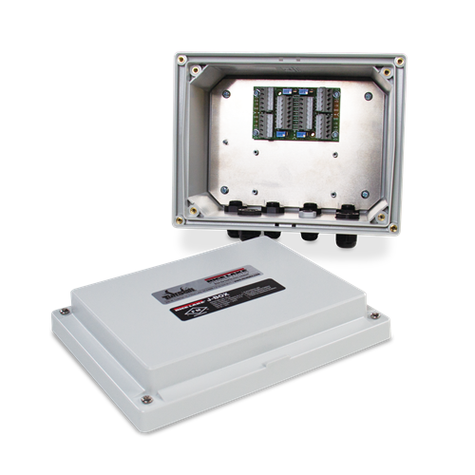

The Rice Lake JB4SP and JB4SPT TuffSeal® Signal Trim Junction Boxes are specially designed to sum the outputs of up to four load cells, offering precision, protection, and expandability in modular scale systems. These junction boxes are ideal for use as sub-junction boxes in multiple load cell configurations for tank and hopper scales.
Constructed with a Fiberglass Reinforced Polyester (FRP) enclosure, rated NEMA Type 4X, they are engineered to withstand harsh environments while protecting internal electronics from moisture and corrosion. The PreVent™ breather vent enhances this by eliminating condensation buildup inside the housing.
Each JB4SP or JB4SPT comes equipped with individual signal trimming, screwless spring clamp connectors, and a conformal coated circuit board, delivering long-term stability and accuracy. The inclusion of an expansion port makes them suitable for scalable installations, especially in industrial weighing environments.
JB4SP and JB4SPT Signal Trim Junction Box Specifications
| Material |
Fiberglass Reinforced Polyester (FRP) |
| Enclosure Rating |
NEMA Type 4X |
| Load Cell Capacity |
Two, Three, or Four Single Load Cells |

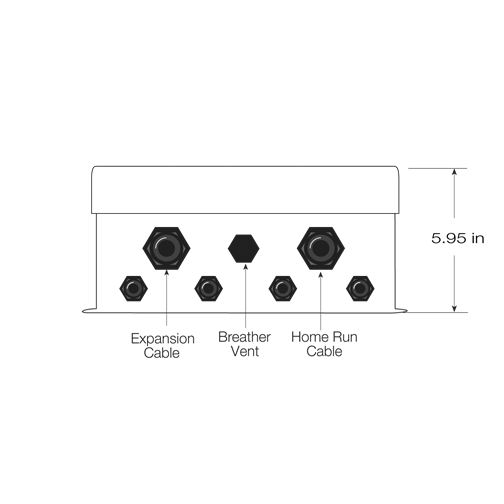

| Cable Fittings |
(4) PG7: 0.118 – 0.255 in, (2) PG11: 0.197 – 0.394 in |
| Connectors |
Spring Clamp, Screwless (12 to 28 AWG) |
| Trimming Type |
Signal Trim (Individual Cell) |
| Potentiometers |
100,000 ohm, 25-turn cermet |
| Circuit Board |
3.8 × 2.3 in with conformal coating |
| Temperature Range |
0 °F to 122 °F (-18 °C to 50 °C) |
| Warranty |
One-Year Limited |
| Approvals |
cFMus |

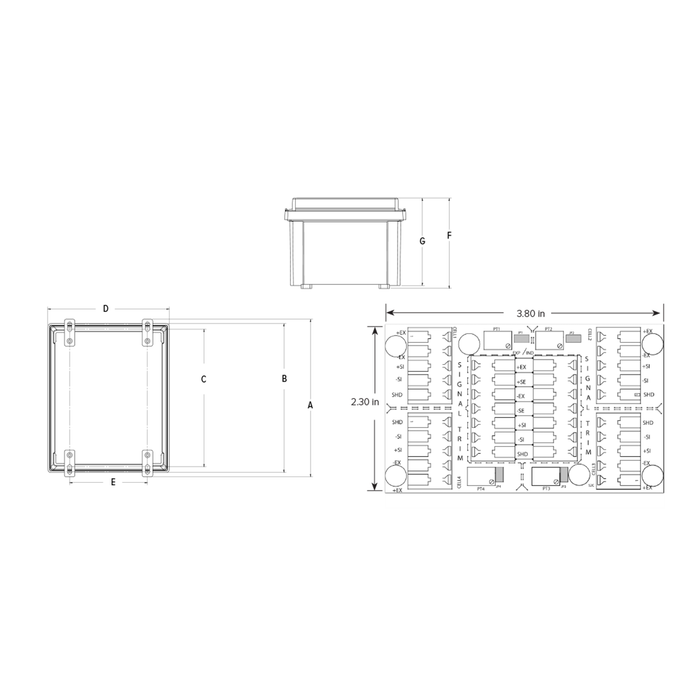

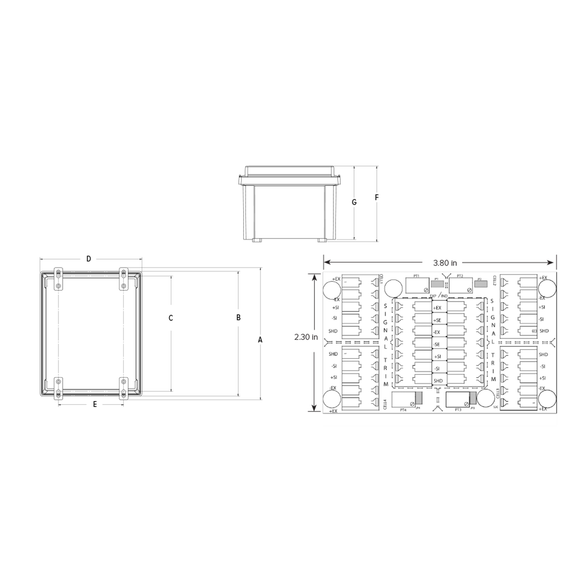

Enclosure Dimensions (inches)
| A |
B |
C |
D |
E |
F |
G |
| 10.04 |
9.52 |
8.50 |
7.43 |
4.00 |
5.95 |
5.71 |
Complete Replacement Parts Table
| Model |
Complete J-Box Replacement |
Replacement Board Only |
Replacement Cord Grips |
Replacement Pressure & Condensation Vent |
Desiccant Packs |
| JB4SS |
88956 |
88958 |
58983=PG7, 59001=PG11 |
88733 PreVent™ breather (vent), 88734 (vent nut) |
92240 |
| JB4ES |
91779 |
89446 |
58983=PG7, 59001=PG11 |
88733 PreVent™ breather (vent), 88734 (vent nut) |
92240 |
| JB4SP / JB4SPT |
91780 / 92762 |
88958 / 89894 |
58983=PG7, 59001=PG11 |
88733 PreVent™ breather (vent), 88734 (vent nut) |
16039 |
| JB4EP / JB4EPT |
91781 / 92763 |
89446 / 89894 |
58983=PG7, 59001=PG11 |
88733 PreVent™ breather (vent), 88734 (vent nut) |
16039 |
| EL204 |
73428 |
88958 |
N/A |
N/A |
N/A |
| JB8SP |
91782, 173807 - FM Approved |
89889, 172415 - FM Approved |
15655 (cord grip), 15656 (nut)=3/8" NPT, 15628 (cord grip), 15630 (nut)=1/2" SPT |
88733 PreVent™ breather (vent), 88734 (vent nut) |
16039 |
| JB8SPT |
91783 |
89889 (load cell), 89894 (transient protection) |
15655 (cord grip), 15656 (nut)=3/8" NPT, 15628 (cord grip), 15630 (nut)=1/2" SPT |
88733 PreVent™ breather (vent), 88734 (vent nut) |
16039 |
| EL304A |
21169 |
21301 |
N/A |
N/A |
N/A |
| JB1010 |
36231 |
36351 |
N/A |
N/A |
N/A |
| JB1010ST |
68813 |
68811 |
N/A |
N/A |
N/A |
| EL210 |
91781, JB4EP* |
92472 |
58983=PG7, 59001=PG11 |
N/A |
N/A |
| EL211A |
91780, JB4SP* |
92473 (no section trim) |
58983=PG7, 59001=PG11 |
N/A |
N/A |
| EL604-AL |
88956, JB4SS* |
88958 |
58983=PG7, 59001=PG11 |
N/A |
N/A |
| EL604STA |
88956, JB4SS* |
88958 |
58983=PG7, 59001=PG11 |
N/A |
N/A |
| EL604ETA |
91779, JB4ES* |
89446 |
58983=PG7, 59001=PG11 |
N/A |
N/A |
| EL504 |
21165 |
21296 |
N/A |
N/A |
N/A |
| JB808S |
91782, JB8SP* |
92471 |
15655 (cord grip), 15656 (nut)=3/8" NPT, 15628 (cord grip), 15630 (nut)=1/2" SPT |
N/A |
N/A |
| JB818ST |
91783, JB8SPT* |
77445, 89889, 89894 |
15655 (cord grip), 15656 (nut)=3/8" NPT, 15628 (cord grip), 15630 (nut)=1/2" SPT |
N/A |
N/A |
Why Choose JB4SP or JB4SPT?
When performance and durability matter, the JB4SP and JB4SPT TuffSeal® Junction Boxes provide the flexibility and accuracy required in demanding industrial weighing systems. With signal trimming, moisture-resistant protection, and scalable design, they’re the right choice for tank and hopper scale setups.
Get yours today from SellEton Scales — your authorized Rice Lake dealer — and build smarter, scalable, and more protected weighing systems.
