The JB1010ST Signal Trim Junction Box is built to handle complex weighing systems requiring individual and section signal trimming for up to 10 single load cells. Housed in a rugged stainless steel NEMA Type 4X enclosure, this compact box delivers precision trimming with excellent protection against harsh environments and transient surges.
Supports Up to 10 Load Cells
Ideal for tank, truck, and railroad scale applications with high cell counts.
Advanced Trim Control
Offers both individual and section trimming via multi-turn cermet potentiometers.
Transient Protection
Gas discharge tubes safeguard sensitive electronics from electrical surges.
Compact and Durable Design
Low-profile enclosure (just 1.75 in deep) with a stainless steel, weather-resistant build.
Legal-for-Trade Ready
Includes sealing screws, seal wire, and a ground stud for legal-for-trade applications.
Truck and railroad scales
Large-capacity tank and hopper systems
Multi-load cell summing with precision tuning
Whether you're configuring a new scale or upgrading an existing system, the JB1010ST offers a compact and reliable solution for signal management. Designed for long-term durability, the junction box features multiple cable fittings and intuitive screw terminal connectors for fast and secure installations.
| Parameter | Details |
|---|---|
| Cable Fittings | Eleven nylon 0.079 to 0.314 in waterproof strain reliefs |
| Material Rating | Stainless steel enclosure, NEMA Type 4X |
| Connectors | Electrovert 0.197 in screw terminals (5 positions), up to #14 AWG |

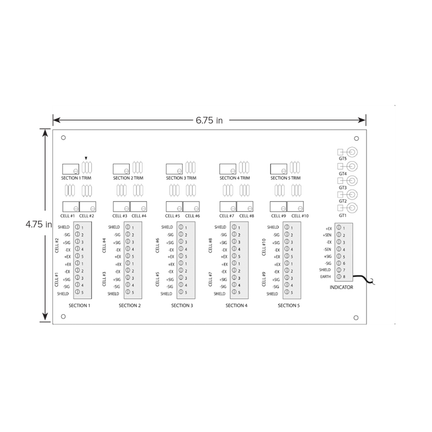

| Trimming | Individual cell (100K ohm cermet) and section trim (100 ohm) |
| Temperature Range | 0 °F to 122 °F (-18 °C to 50 °C) |
| Protection | Transient protection with gas discharge tubes |

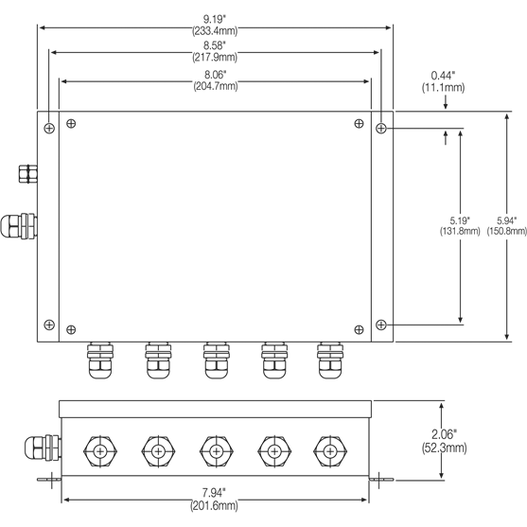

| Enclosure Depth | Only 1.75 inches |
| Warranty | One-year limited |
| Model | Complete J-Box Replacement | Replacement Board Only | Replacement Cord Grips | Replacement Pressure & Condensation Vent | Desiccant Packs |
|---|---|---|---|---|---|
| JB4SS | 88956 | 88958 | 58983=PG7, 59001=PG11 | 88733 PreVent™ breather (vent), 88734 (vent nut) | 92240 |
| JB4ES | 91779 | 89446 | 58983=PG7, 59001=PG11 | 88733 PreVent™ breather (vent), 88734 (vent nut) | 92240 |
| JB4SP / JB4SPT | 91780 / 92762 | 88958 / 89894 | 58983=PG7, 59001=PG11 | 88733 PreVent™ breather (vent), 88734 (vent nut) | 16039 |
| JB4EP / JB4EPT | 91781 / 92763 | 89446 / 89894 | 58983=PG7, 59001=PG11 | 88733 PreVent™ breather (vent), 88734 (vent nut) | 16039 |
| EL204 | 73428 | 88958 | N/A | N/A | N/A |
| JB8SP | 91782, 173807 - FM Approved | 89889, 172415 - FM Approved | 15655 (cord grip), 15656 (nut)=3/8" NPT, 15628 (cord grip), 15630 (nut)=1/2" SPT | 88733 PreVent™ breather (vent), 88734 (vent nut) | 16039 |
| JB8SPT | 91783 | 89889 (load cell), 89894 (transient protection) | 15655 (cord grip), 15656 (nut)=3/8" NPT, 15628 (cord grip), 15630 (nut)=1/2" SPT | 88733 PreVent™ breather (vent), 88734 (vent nut) | 16039 |
| EL304A | 21169 | 21301 | N/A | N/A | N/A |
| JB1010 | 36231 | 36351 | N/A | N/A | N/A |
| JB1010ST | 68813 | 68811 | N/A | N/A | N/A |
| EL210 | 91781, JB4EP* | 92472 | 58983=PG7, 59001=PG11 | N/A | N/A |
| EL211A | 91780, JB4SP* | 92473 (no section trim) | 58983=PG7, 59001=PG11 | N/A | N/A |
| EL604-AL | 88956, JB4SS* | 88958 | 58983=PG7, 59001=PG11 | N/A | N/A |
| EL604STA | 88956, JB4SS* | 88958 | 58983=PG7, 59001=PG11 | N/A | N/A |
| EL604ETA | 91779, JB4ES* | 89446 | 58983=PG7, 59001=PG11 | N/A | N/A |
| EL504 | 21165 | 21296 | N/A | N/A | N/A |
| JB808S | 91782, JB8SP* | 92471 | 15655 (cord grip), 15656 (nut)=3/8" NPT, 15628 (cord grip), 15630 (nut)=1/2" SPT | N/A | N/A |
| JB818ST | 91783, JB8SPT* | 77445, 89889, 89894 | 15655 (cord grip), 15656 (nut)=3/8" NPT, 15628 (cord grip), 15630 (nut)=1/2" SPT | N/A | N/A |
