Flintec® BK2 Stainless Steel, Single-Ended Beam Load Cell

Flintec® BK2 Stainless Steel, Single-Ended Beam Load Cell

$243.00 - $243.00
$243.00
$243.00 - $243.00
$243.00

Key Features:

  • Ultra-Low Profile Design – Half the height of traditional load cells, making it perfect for low-profile floor scales.
  • Durable Stainless Steel Construction – Ensures longevity and reliable performance in industrial settings.
  • Environmentally Sealed Protection – IP67-rated for resistance against dust and moisture in indoor applications.
  • Matched Output Calibration – mV/V/ohm calibration simplifies the calibration process for seamless integration.
  • Wide Capacity Range – Available from 200 kg to 2,000 kg for various weighing applications.
  • High Load Tolerance – Supports up to 200% full-scale overload and 100% safe sideload capacity.
  • Versatile Operating Conditions – Functions efficiently between 0 °F and 150 °F (-18 °C to 65 °C).
  • Certified for Industrial Use – NTEP approved, with EX and OIML certifications available upon request.
  • Flexible Cable Options – Comes with a 10 ft standard cable, with an option for 30 ft upon request.



Flintec® BK2 Load Cell Specifications

Specification
Details
Full Scale Output   2.0 mV/V, mV/V/ohm calibration
Output Resistance
1,000 (± 2) ohm
Input Resistance
1,100 (± 50) ohm
Material/Finish
Stainless steel
Temperature Range (Compensated)
14 °F to 104 °F (-10 °C to 40 °C)
Temperature Range (Operating)
0 °F to 150 °F (-18 °C to 65 °C)
Seal Type
Environmentally sealed, IP67
Safe Overload
200% full scale
Safe Sideload
100% full scale
Rated Excitation
5 to 15 VDC
Combined Error
0.030% full scale
Insulation Resistance
5,000 megohm
Cable Length
10 ft (Optional: 30 ft)
Cable Diameter
0.196 in (Polyurethane jacket)
Cable Color Code
Green: +Excitation, Black: –Excitation, White: +Signal, Red: –Signal, Yellow: Shield
Warranty
One-year limited
Approvals
NTEP, EX (Available upon request), OIML (Available upon request)

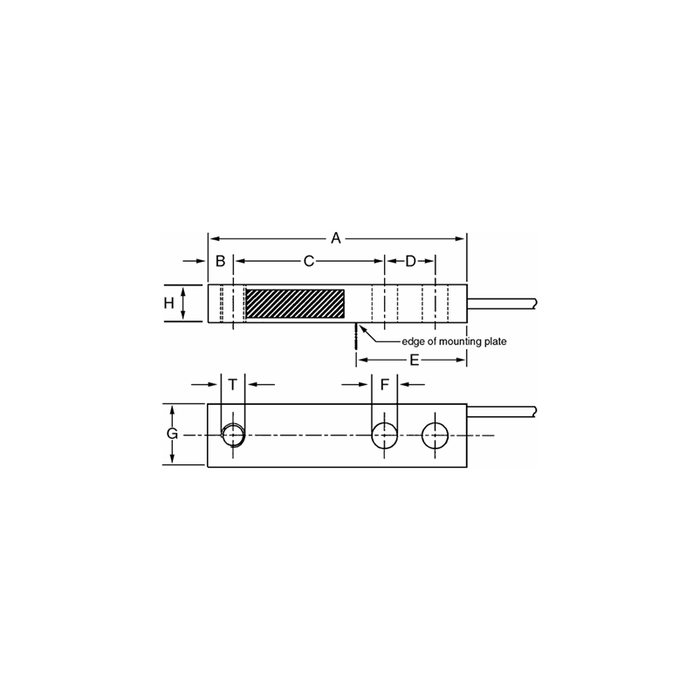

BK2 Load Cell Dimensions

Rated Capacity (kg/mm)   A B C D E F G H T*
200
128.5 12.7 76.2 25.4 53.8 13(2x) 31.8 16.1 1/2-20 UNF
500
128.5 12.7 76.2 25.4 53.8 13(2x) 31.8 16.1 1/2-20 UNF
1,000
128.5 12.7 76.2 25.4 53.8 13(2x) 31.8 19.1 1/2-20 UNF
2,000
130.2 12.7 76.2 25.4 53.8 13(2x) 31.8 25.4 1/2-20 UNF

Metric thread option available upon request.

Upgrade to a Compact & High-Performance Load Cell Today!

The Flintec BK2 Stainless Steel Beam Load Cell is engineered for low-profile applications while maintaining high accuracy and durability. Whether you need it for floor scales or industrial weighing, this load cell ensures seamless performance and easy integration. Order today from SellEton Scales and enhance your weighing system with top-tier precision!

Free Shipping: Available across 48 continental USA. Extra charges may apply for residential, farm, or rural areas.
Express Shipping: Overnight and faster shipping options available at additional costs. Quotes obtainable via email.
Delivery Time: Typically 5 to 7 business days, varying by location and external conditions.
Tracking Information: Provided via email upon shipment. Accessible through account login. Additional information available upon request.
Return Policy: 15-day return period for unused, original condition products. A 25% restocking fee applies. Buyer covers original and return shipping costs.
Customer Support: Contact at (844)-735-5386 or info@selletonscales.com for queries or concerns about shipping.
