13-stage transient protection filters both common and normal mode electrical noise
Duplex receptacle with shielded line cord and 9-ft power cable
Plugs directly into any grounded three-prong outlet
Includes indicator light for power and protection status
Equipped with 20 ft insulated #10 AWG ground cable
Stainless steel enclosure ensures durability in rugged environments
Mountable on any surface for versatile installation
Designed for scales, computers, printers, and sensitive electronics
Factory serviceable for extended equipment life
Backed by a one-year limited warranty

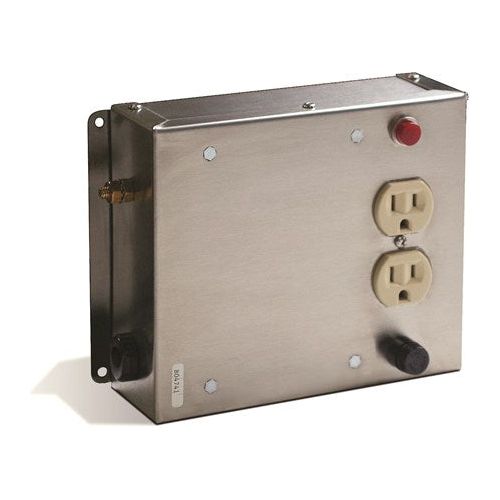

The EL226 AC Transient Protector provides advanced surge and noise suppression for environments where reliable, clean power is critical. Ideal for industrial and commercial use, it features 13-stage filtration that effectively blocks both common and normal mode transients from damaging connected equipment such as weighing scales, computers, and printers.
Engineered for convenience and durability, the EL226 includes a duplex receptacle, a 9-foot shielded line cord with a three-prong plug, and a 20-foot insulated ground cable for proper grounding. A visible indicator light confirms active protection and grounded installation, giving users confidence that their equipment is safe.
Encased in a rugged stainless steel enclosure and equipped with a fiberglass-reinforced epoxy circuit board, this transient protector withstands harsh operating conditions while delivering dependable performance. Its surface-mountable design allows flexible placement near sensitive equipment for localized protection.
| Category | Specification |
|---|---|
| Protection Type | 13-stage (common & normal mode transient filtering) |
| Voltage | 120 VAC, 50/60 Hz nominal |
| Maximum Current | 10 A RMS instantaneous / 7.5 A RMS continuous |
| Clamping Time | Less than 3–5 nanoseconds |
| EMI/RFI Protection | 13-stage suppression |
| Receptacle Type | Duplex outlet with shielded 9 ft power cord (three-prong plug) |
| Indicator Light | Yes – confirms protection and ground connection |
| Grounding | 20 ft insulated #10 AWG wire included |
| Enclosure | Stainless steel |
| Circuit Board | Fiberglass-reinforced 4-glass epoxy |
| Mounting | Surface mount |
| Operating Temperature | 14 °F to 104 °F (-10 °C to 40 °C) |
| Dimensions (L × W × H) | 8.00 × 6.00 × 2.50 in |
| Warranty | One-year limited |
Safeguard your sensitive equipment with the EL226 AC Transient Protector. With industrial-grade surge protection, fast clamping response, and durable construction, it's a must-have for stable and clean power delivery. Order now from SellEton Scales or request a quote for your setup.
