EL168 1-Cell Junction Splice Box

Name: EL168 1-Cell Junction Splice Box
Brand: Rice Lake Weighing Systems
Price: 102.00 USD
Availability: InStock

$102.00 - $102.00

$102.00

$102.00 - $102.00

$102.00

Backed by SellEton's 5 Year Limited Warranty — see terms

Downloads

Product Catalog

Description

Reliable Load Cell Cable Splicing Without the Hassle

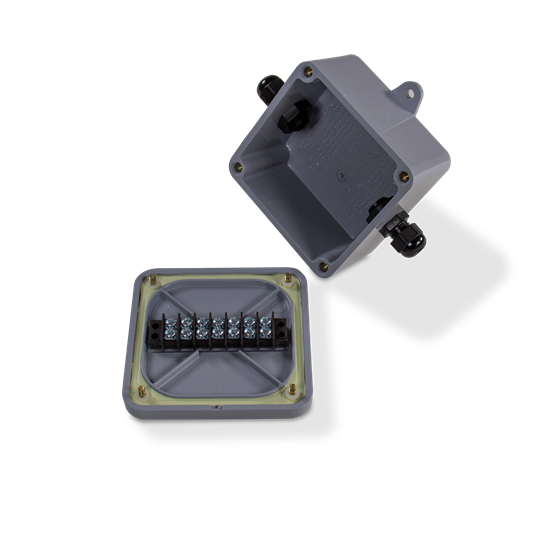

The EL168 1-Cell Junction Splice Box provides an efficient, no-solder solution for extending or splicing load cell cables. Designed with a rugged PVC enclosure and separate input/output cable fittings, this splice box is ideal for single-load-cell systems that require a clean and secure connection in tight or protected environments.

Key Features

Non-Metallic PVC Housing
Durable and corrosion-resistant for general industrial use.
Solder-Free Installation
No need for compression fittings or swaged terminals.
Strain-Relief Cable Fittings
Protects cable integrity by minimizing stress on connections.
Simple Terminal Block
Seven-position screw terminal accepts up to #16 AWG wire.

Typical Applications

Extending load cell cable in single-cell systems
Splicing damaged or shortened cables
Ideal for protected environments in industrial weighing

Specifications

Parameter	Details

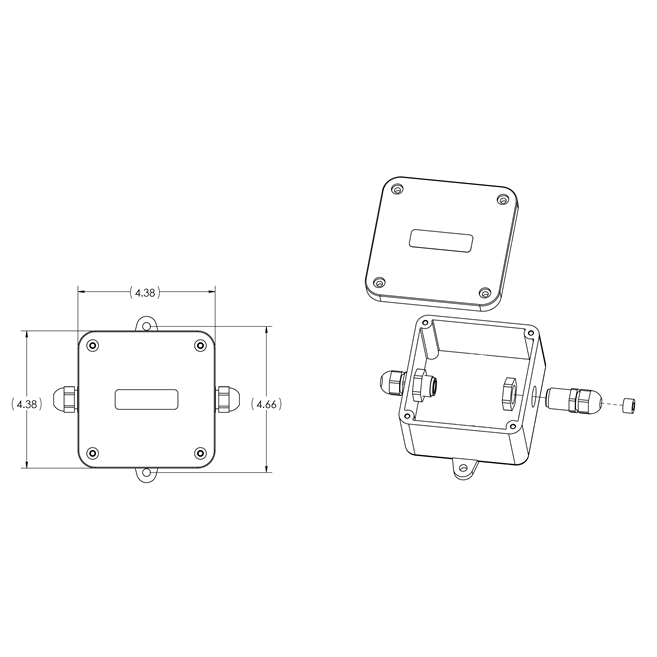

Dimensions (L×W×H)	4.0 × 4.0 × 2.5 in
Operating Temp	0 °F to 122 °F (-18 °C to 50 °C)
Cable Diameter Range	0.079 to 0.314 in (2 to 8 mm)
Terminal Block Rating	300 V / 15 A – 7-position screw terminals
Cable Fittings	Nylon waterproof strain-relief
Material	Non-metallic PVC
Warranty	5-Year SellEton Warranty
