NTEP Certified for legal-for-trade applications (5,000 × 5 lb)
Heavy-duty 34 in or 28 in Class II carriage with welded cleats and centering pin
Integrated iQUBE²® junction box with inclinometer for enhanced accuracy
Two 5,000 lb S-beam load cells ensure dependable weighing
Molded coiled cable (15 ft extended); cableless options also available
Compatible with CLS-680, CLS-920i, and VIRTUi³ weight displays
Wireless communication options: Wi-Fi, Bluetooth, and USB
OSHA compliant: includes de-rating requirement info
Measurement Canada Approved options available
The CLS Series Class II Forklift Scale is a premium on-board weighing system from Rice Lake Weighing Systems, designed to streamline your material handling operations without compromising accuracy or compliance. This NTEP-certified forklift scale is engineered to mount directly to most Class II forklifts, eliminating the need for additional steps in your weighing process and maximizing efficiency in real-time operations.
Built from robust steel plates connected by flexures, the CLS forklift scale withstands rugged warehouse conditions while providing reliable weight data. Each unit features dual 5,000 lb S-beam load cells, a welded centering pin, and an advanced iQUBE² junction box equipped with an inclinometer to account for tilt and angle adjustments.
This system offers versatile connectivity with wired and cableless options for the CLS-680, CLS-920i, or the innovative VIRTUi³ virtual display, compatible with mobile devices. For even more flexibility, users can add wireless connectivity via Bluetooth or Wi-Fi.
Installation is straightforward, and we provide guidance to ensure OSHA compliance, including load de-rating and center of gravity plate updates. Whether you're weighing pallets, crates, or heavy inventory directly from the forklift, the CLS Series guarantees precision, speed, and productivity.
| Parameter | Details |
|---|---|
| Capacity | 5,000 lb |
| Graduation | 5 lb |
| Carriage Class | Class II |
| Width Options | 28 in, 34 in |
| Load Cells | (2) 5,000 lb S-beam |
| Power Input | 9 to 36 VDC / 18 to 72 VDC (CLS-680) |
| Warranty | Two-year limited |
| Certification | NTEP, Measurement Canada |

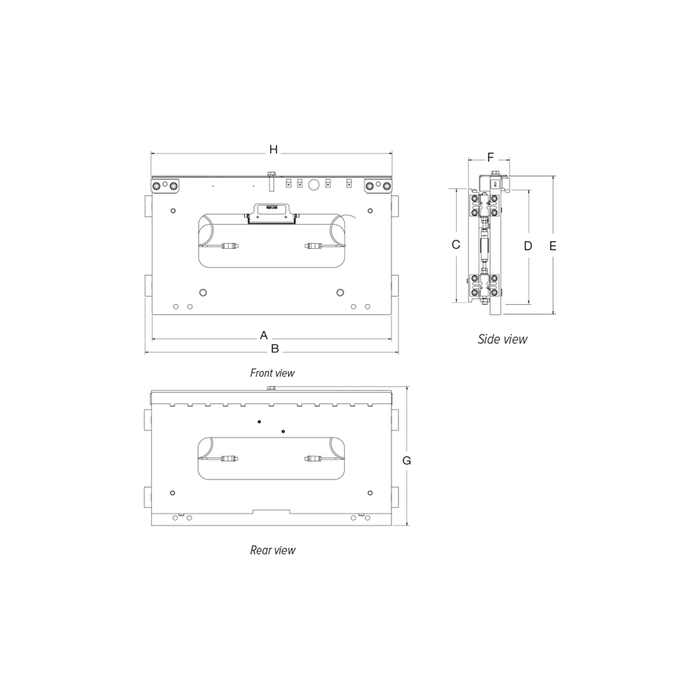

| Model | A | B | C | D | E | F | G | H |
|---|---|---|---|---|---|---|---|---|
| 28” | 28.00" | 30.00" | 16.00" | 16.29" | 19.50" | 4.49" | 21.80" | 28.24" |
| 34” | 34.00" | 36.00" | 16.00" | 16.29" | 19.50" | 4.49" | 21.80" | 34.24" |
CLS-680 Forklift Display
Compact, rugged aluminum build with RAM® mount
LED display, RS-232, Wi-Fi, Bluetooth, 9–72 VDC support
CLS-920i Forklift Display
Full-featured LCD display with configuration/calibration tools
Painted steel enclosure, optional Wi-Fi and Bluetooth
VIRTUi³ Virtual Indicator
Software-based scale indicator for PC/tablet
Connects via USB, RS-232, or Bluetooth
802.15 wireless modules with lithium-ion battery
24 hours run time, 8 hours recharge
Eliminates wiring hassle on forklifts
| Size | VCG | HCG | ET | Weight |
|---|---|---|---|---|
| 28” | 8.06 | 2.09 | 4.55 | 392 lb |
| 34” | 8.06 | 2.09 | 4.55 | 420 lb |
| 38” | 10.15 | 2.83 | 6.06 | 987 lb |
