Key Features:
-
Bright LED display with seven 0.8-inch digits for clear readability
-
Battery-backed time and date to prevent data loss
-
Full numeric keypad for fast tare and setpoint entry
-
Multiple communication ports: RS-232, RS-485/422, Micro USB, and Ethernet TCP/IP
-
Eight setpoints with 22 configurable types for process automation
-
Four configurable digital I/O points (TTL logic) for equipment integration
-
Customizable ticket formatting for gross, net, setpoint, and auxiliary printing
-
Local/remote operation for flexible weighing applications
-
Durable 304 stainless steel construction with IP69K washdown protection
-
Optional Ethernet (RJ45) connector and 16-bit analog output (0-10 VDC, 0-20 mA, 4-20 mA)
Product Overview:

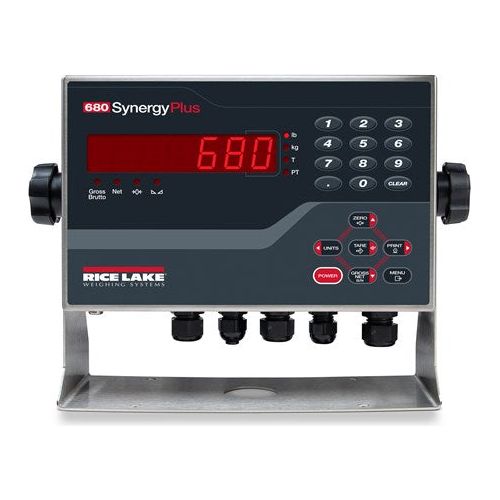

The Rice Lake 680 Synergy Series Digital Weight Indicator delivers high-performance weighing in industrial, automation, and washdown environments. Designed for efficiency and reliability, the 680 Series supports batching, filling, and process automation with eight setpoints and four digital I/O points.
Equipped with advanced connectivity options, the 680 Synergy seamlessly integrates with printers, computers, and industrial equipment. Its 304 stainless steel enclosure and IP69K rating ensure resistance to high-pressure, high-temperature washdowns, making it ideal for food processing and harsh industrial settings.
With its customizable batch engine, configurable print formats, and intuitive keypad interface, the 680 Synergy Series is an excellent choice for general-purpose weighing, automation, and process control applications.
Specifications:
| Specification |
Details |
| Power Input |
100 to 240 VAC, 50/60 Hz |
| Power Consumption |
2W (AC) with one 350Ω load cell, 15W max |
| Excitation Voltage |
10 VDC (±5 VDC), supports 8 × 350Ω or 16 × 700Ω load cells |
| Analog Signal Input Range |
-5 mV to +70 mV |
| Analog Signal Sensitivity |
1 µV/graduation recommended |
| A/D Sample Rate |
6.25 to 120 Hz, software selectable |
| Resolution |
Internal: 8,000,000 counts
Display: 1,000,000 counts |
| System Linearity |
Within 0.01% full scale |
| Digital I/O |
4 configurable I/O (5V TTL logic) |
| (Optional) Analog Output |
16-bit resolution, 0-10 VDC, 0-20 mA, 4-20 mA |
| Communication Ports |
(2) RS-232 (full-duplex)
RS-485/422 (five-wire)
Micro USB (device)
Ethernet TCP/IP (10/100)
|
| Annunciators |
Eight LED indicators |
| Display |
Seven 0.8-inch tall, seven-segment digits |
| Keys/Buttons |
18-key flat membrane panel with tactile feedback |
| Operating Temperature |
Certified: 14°F to 104°F (-10°C to 40°C)
Industrial: 14°F to 122°F (-10°C to 50°C) |
| Enclosure & Rating |
304 Stainless Steel, IP69K (IP66 with RJ45 option) |
| Weight |
6.25 lb (3 kg) |
| Warranty |
Two-year limited |
| EMC Immunity |
10 V/m |
| Approvals |
NTEP 19-021, Class III/IIIL, 10,000 d
Measurement Canada AM-6121C
OIML R76/2006-A-NL1-19.56
EU Test Certificate TC11562
UKCA
CE Marked
cULus Listed |
680 Synergy Series Dimensions:
| Measurement |
Value |
| A |
10.02 in (255 mm) |
| B |
11.58 in (294 mm) |
| C |
6.00 in (152 mm) |
| D |
8.57 in (218 mm) |
| E |
3.40 in (86 mm) |
| F |
4.05 in (103 mm) |
| G |
3.80 in (97 mm) |
| H |
4.74 in (120 mm) |
Why Choose the 680 Synergy Series Digital Weight Indicator?
The Rice Lake 680 Synergy Series is a robust and versatile weighing solution built for industrial, automation, and food processing environments. With advanced connectivity, batch processing, and durable stainless steel construction, it is a top-tier choice for demanding applications.
Upgrade your weighing system with the 680 Synergy Series! Contact us today for more details or to place your order.
