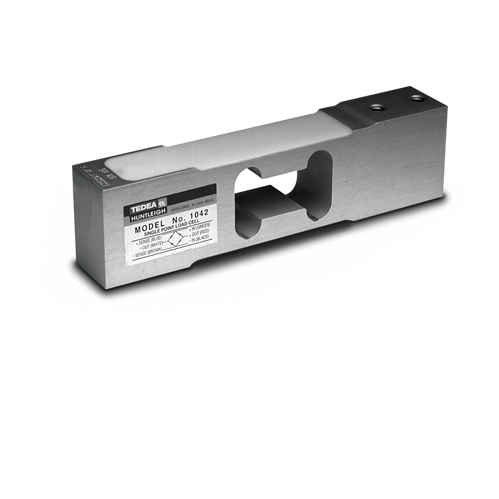

VPG® Tedea-Huntleigh® 1042 Aluminum, Single Point Load Cell
VPG® Tedea-Huntleigh® 1042 Aluminum, Single Point Load Cell

VPG® Tedea-Huntleigh® 1042 Aluminum, Single Point Load Cell

$230.00 - $230.00
$230.00
$242.00
$242.00 - $242.00
$242.00

Downloads

Product Catalog

Key Features:

  • Lower Profile, Two-Beam Design – Engineered for platform weighing and other precision applications, offering high immunity to side forces.
  • High-Quality Aluminum Construction – Lightweight yet durable, ensuring consistent and reliable weight measurements.
  • IP66 Environmental Protection – Sealed against dust, moisture, and water jets, making it ideal for industrial and commercial environments.
  • Wide Capacity Range – Available in 1 kg to 100 kg, catering to various weighing applications.
  • Exceptional Accuracy & Stability –
    • 0.02% combined error ensures high-precision weight measurements
    • Minimal deflection (0.015 in) for steady readings
  • Safe Overload Protection – Withstands 150% full-scale overload, preventing damage from excessive loads.
  • Long Cable for Flexible Installation – 10 ft of PVC-jacketed cable, allowing easy integration into various weighing systems.
  • Compatible with Larger Platforms – Supports a maximum platform size of 16 × 16 in, providing versatility in scale applications.
  • Certified for Legal Trade & Industrial Use – NTEP Certified, cFMus approved, and OIML certification available upon request.
  • One-Year Limited Warranty – Ensuring long-term reliability and manufacturer-backed support.

VPG Tedea-Huntleigh 1042 Load Cell Specifications

Specification   Details
Full Scale Output
2.0 mV/V
Output Resistance
350 (±3) ohm
Input Resistance
415 (±15) ohm
Material/Finish
Aluminum
Temperature Range (Compensated)
14 °F to 104 °F (-10 °C to 40 °C)
Temperature Range (Operating)
0 °F to 150 °F (-18 °C to 65 °C)
Seal Type
Environmentally sealed, IP66
Safe Overload
150% full scale
Rated Excitation
5 to 10 VDC (15 V maximum)
Combined Error
0.02% full scale
Insulation Resistance
2,000 megohm
Deflection at Capacity
0.015 in
Cable Length
10 ft
Cable Diameter
0.200 in PVC jacket
Cable Color Code
Green: +Excitation, Black: –Excitation, Red: +Signal, White: –Signal, Blue: +Sense, Brown: –Sense
Max Platform Size
16 × 16 in
Warranty
One-year limited
Approvals
NTEP, cFMus, OIML (Available upon request)

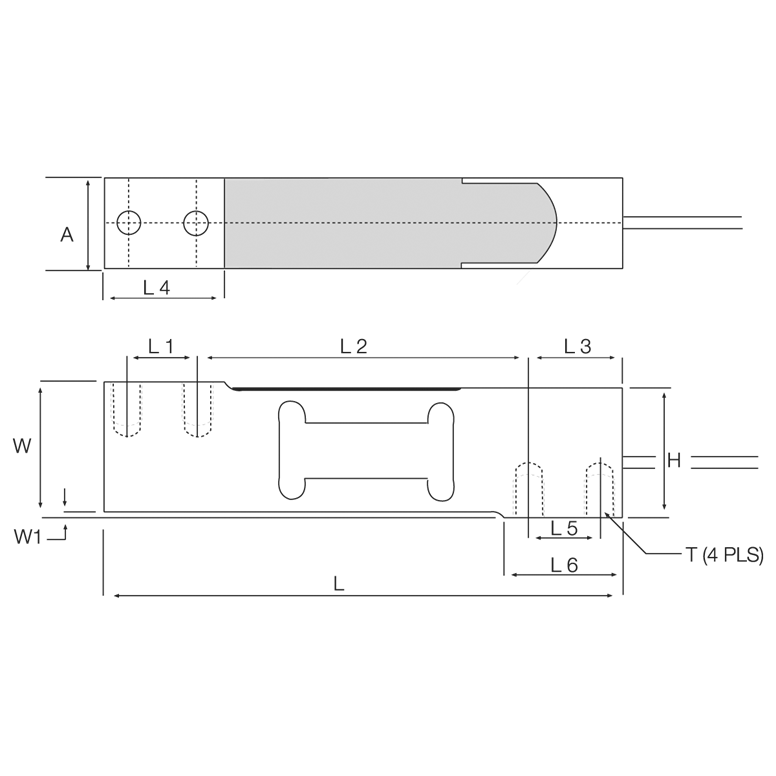

1042 Load Cell Dimensions

Rated Capacity (kg/mm) A H L L1   L2 L3 L4 L5 L6 W W1 T
1 to 30 20.0 39.0 150.0 19.0
100.0 25.0 34.0 19.0 34.0 40.0 1.0 1/4-20 UNC
50 to 100 25.2 39.0 150.0 19.0
100.0 25.0 34.0 19.0 34.0 40.0 1.0 1/4-20 UNC


The VPG Tedea-Huntleigh 1042 Aluminum Single-Point Load Cell is a cost-effective, high-accuracy solution for platform scales, industrial weighing, and commercial applications. This load cell ensures exceptional performance in harsh environments with IP66 protection, a durable two-beam design, and NTEP certification. Shop now at SellEton Scales and take your weighing system to the next level!

Contact our team today to request pricing and confirm availability.

Free Shipping: Available across 48 continental USA. Extra charges may apply for residential, farm, or rural areas.
Express Shipping: Overnight and faster shipping options available at additional costs. Quotes obtainable via email.
Delivery Time: Typically 5 to 7 business days, varying by location and external conditions.
Tracking Information: Provided via email upon shipment. Accessible through account login. Additional information available upon request.
Return Policy: 15-day return period for unused, original condition products. A 25% restocking fee applies. Buyer covers original and return shipping costs.
Customer Support: Contact at (844)-735-5386 or info@selletonscales.com for queries or concerns about shipping.
