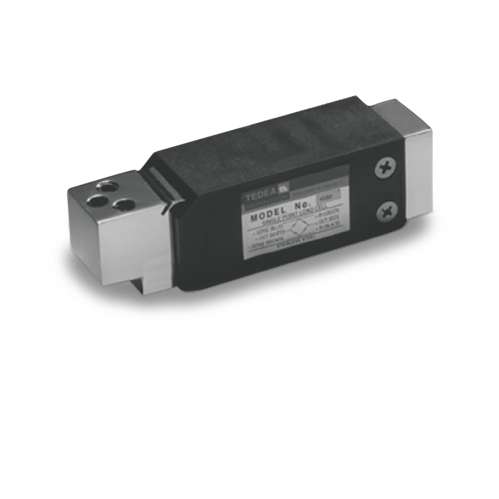

VPG® Tedea-Huntleigh® 1030 Aluminum, Single Point Load Cell
VPG® Tedea-Huntleigh® 1030 Aluminum, Single Point Load Cell

VPG® Tedea-Huntleigh® 1030 Aluminum, Single Point Load Cell

$340.00 - $340.00
$340.00
$357.00
$357.00 - $357.00
$357.00

Downloads

Product Catalog

Key Features:

  • Ultra-Low Profile, Three-Beam Design – Delivers high precision and stability, ensuring accurate measurements even with off-centre loads.
  • Anodized Aluminum Construction – Provides corrosion resistance and durability for long-term performance.
  • IP65 Environmental Protection – Sealed against dust and moisture, making it ideal for challenging environments.
  • Small Capacity for High-Precision Applications – Available in 5 kg to 10 kg, perfect for low-capacity weighing needs.
  • Exceptional Accuracy & Consistency –
    • 0.02% combined error for reliable weight measurements
    • Minimal deflection (0.015 in) for stable readings
  • Safe Overload Protection – Handles 150% full-scale overload, preventing damage from excessive weight.
  • Humidity-Resistant Protective Coating – Ensures long-term stability in extreme conditions.
  • Compact & Lightweight Design – Ideal for precision weighing in confined spaces.
  • Certified for Industrial & Commercial Use – cFMus and OIML certified, ensuring compliance with industry standards.
  • One-Year Limited Warranty – Providing reliable support and performance assurance.

VPG Tedea-Huntleigh 1030 Load Cell Specifications

Specification   Details
Full Scale Output
2.0 mV/V
Output Resistance
350 (±3) ohm
Input Resistance
415 (±15) ohm
Material/Finish
Anodized aluminum
Temperature Range (Operating)
0 °F to 150 °F (-18 °C to 65 °C)
Seal Type
Environmentally sealed, IP65
Safe Overload
150% full scale
Rated Excitation
5 to 10 VDC (15 V maximum)
Combined Error
0.02% full scale
Insulation Resistance
5,000 megohm
Deflection at Capacity
0.015 in
Cable Length
1 m
Cable Diameter
0.200 in PVC jacket
Cable Color Code
Green: +Excitation, Black: –Excitation, Red: +Signal, White: –Signal, Blue: +Sense, Brown: –Sense
Max Platform Size
13.78 × 13.78 in
Warranty
One-year limited
Approvals
cFMus, OIML

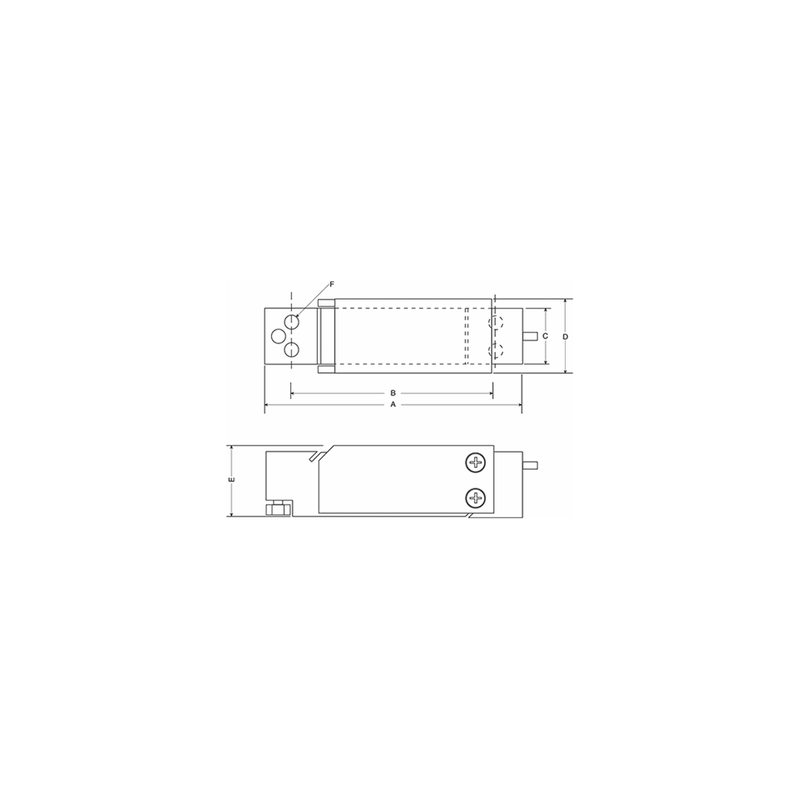

1030 Load Cell Dimensions

Rated Capacity (kg/mm) A B   C D E F
5 to 10 117.9 93.7
25.4 33.3 32.5 1/4-20 UNC × 10 DP


The VPG Tedea-Huntleigh 1030 Aluminum Single-Point Load Cell is engineered for compact, high-accuracy weighing applications. Its ultra-low profile and humidity-resistant coating ensure long-term stability in challenging conditions. Whether for industrial or commercial use, this load cell delivers outstanding performance. Find the perfect weighing solution today at SellEton Scales!

Contact our team today to request pricing and confirm availability.

Free Shipping: Available across 48 continental USA. Extra charges may apply for residential, farm, or rural areas.
Express Shipping: Overnight and faster shipping options available at additional costs. Quotes obtainable via email.
Delivery Time: Typically 5 to 7 business days, varying by location and external conditions.
Tracking Information: Provided via email upon shipment. Accessible through account login. Additional information available upon request.
Return Policy: 15-day return period for unused, original condition products. A 25% restocking fee applies. Buyer covers original and return shipping costs.
Customer Support: Contact at (844)-735-5386 or info@selletonscales.com for queries or concerns about shipping.
