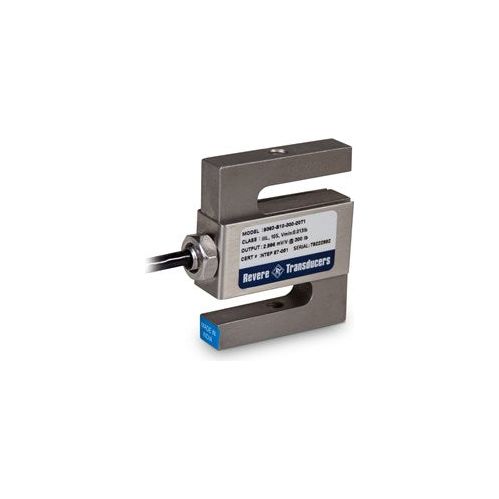

VPG® Revere 9363 Stainless Steel, S-Beam Load Cell

Name: VPG® Revere 9363 Stainless Steel, S-Beam Load Cell
Brand: Rice Lake Weighing Systems
SKU: RL-31317
Availability: InStock

$378.00 - $1,158.00

$378.00

$378.00 - $1,158.00

$378.00

Quantity

Backed by SellEton's 5 Year Limited Warranty — see terms

Downloads

Product Catalog User Manual

Description

The VPG® Revere 9363 is a stainless steel S-beam load cell with trimmed outputs for easy setup. Its compact, economical design suits scale conversions and general-purpose weighing.

Key features

Stainless steel. A stainless steel S-beam for tension or compression.
Easy to match. Trimmed outputs make multi-cell systems simpler to match.
Sealed. Environmentally sealed to IP67.
Legal for trade. NTEP certified from 100 to 10,000 lb; cFMus approved.
Ready to wire. Comes with 20 ft of cable.

Which one do I need?

NTEP certified capacities run from 100 to 10,000 lb. Rice Lake also lists non-NTEP capacities of 50, 15,000 and 20,000 lb. Pick your capacity in the drop down above.

Specifications

Full scale output: 3.0 mV/V
Output resistance: 350 (±3.5) ohm
Input resistance: 390 (±15) ohm
Material: Stainless steel
Combined error: 0.025% full scale
Non-repeatability: 0.01% full scale
Safe overload: 150% full scale
Rated excitation: 5 to 10 VDC (15 V maximum)
Insulation resistance: 5,000 megohm
Seal: Environmentally sealed, IP67
Temperature: Compensated 14 to 104 °F (-10 to 40 °C); operating 0 to 150 °F (-18 to 65 °C)
Cable: 20 ft
Cable color code: Red +excitation, black -excitation, green +signal, white -signal
Approvals: NTEP, cFMus

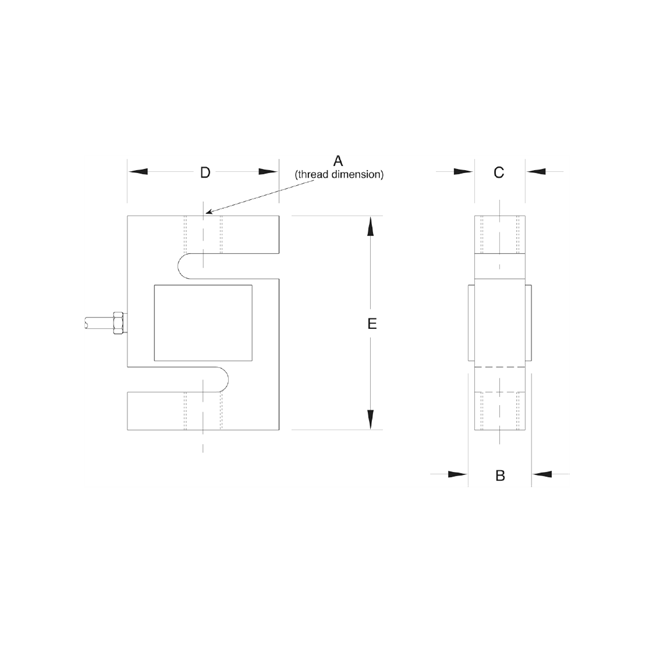

Dimensions (in)

Capacity (lb)	A (thread)	B	C	D	E
50 to 300	1/4-28 UNF	0.65	0.46	2.00	2.40
500 to 1,500	1/2-20 UNF	0.90	0.71	2.00	2.40
2,000 to 2,500	1/2-20 UNF	1.13	0.96	2.00	2.40
3,000	1/2-20 UNF	1.13	0.96	3.00	3.90
5,000	3/4-16 UNF	1.15	0.96	3.00	3.90
10,000	3/4-16 UNF	1.40	1.21	2.94	3.90
15,000	1-14 UNS	1.63	1.46	3.44	5.50
20,000	1 1/4-12 UNF	1.88	1.68	4.44	7.00

Upgrades and add-ons

Junction box. SL-JB junction boxes join two to twelve cells into one indicator cable.
