Key Features:
-

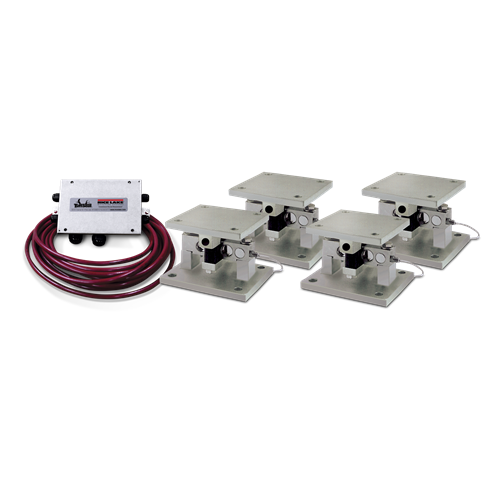

Complete kit includes:
- Three or four RL2100 HE stainless steel compression mounts
- NTEP Certified RL75060S or RL75058S-LP stainless steel, welded-seal double-ended beam load cells
- One JB4SS NEMA Type 4X stainless steel signal-trim junction box
- 25 ft of hostile environment EL147HE SURVIVOR® load cell cable
-
Load Cell Certification:
-
NTEP Certified (5,000 d, Class IIIL / 10,000 d, Class IIIL multiple cell)
- Designed for high-precision applications
-
All stainless steel construction for maximum durability in harsh environments
-
Bolt-in-place design:
- No additional load buttons or mounting plates required
-
Self-checking design with built-in lift-off/tip-over protection
- Handles eccentric and side loads up to 100% of capacity
-
Ideal for:
- Heavy-capacity tanks, blenders, reactors, and bulk inventory management
- Petroleum refining process control
- Blending/batching applications
- Washdown and high-capacity industrial environments
The SURVIVOR® RL2100 HE Heavy-Capacity Weigh Module is a robust weighing solution designed for hostile environments where durability and accuracy are critical. The articulating load plate, hardened load pin, and double-ended beam load cell allow for superior handling of side and eccentric loads.
With NTEP certification and Class IIIL load cells, the RL2100 HE provides high precision (0.02% total error) in high-capacity applications. The integral conduit adapter enhances washdown protection, ensuring long-term reliability in the toughest industrial conditions.
For businesses requiring a high-capacity, stainless steel weigh module that delivers exceptional accuracy and resilience, the RL2100 HE is the ideal solution.
Specifications
| Component |
|
Details |
| Capacity per Module |
|
20,000 to 100,000 lb |
| Load Cell Type |
|
RL75060S / RL75058S-LP Double-Ended Beam Load Cell |
| Load Cell Certification |
|
NTEP Certified (5,000 d, Class IIIL / 10,000 d, Class IIIL multiple cell) |
| Material |
|
Stainless Steel |
| Mounting Design |
|
Bolt-in-place (No additional mounting plates required) |
| Load Cell Protection |
|
Welded Seal, Washdown Ready |
| Side Load Tolerance |
|
Up to 100% of Capacity |
| Tip-Over Protection |
|
Yes |
| Junction Box |
|
JB4SS NEMA Type 4X Stainless Steel Signal Trim Box |
| Load Cell Cable |
|
25 ft EL147HE SURVIVOR® Hostile Environment Cable |
| Applications |
|
Heavy-Capacity Tanks, Blenders, Reactors, Bulk Inventory, Batching, Petroleum Refining |

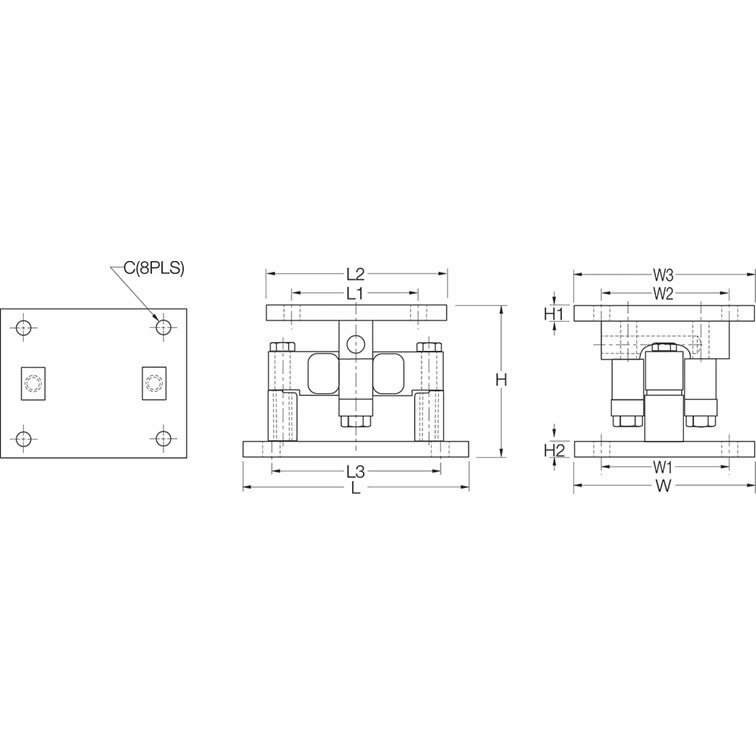

SURVIVOR RL2100 HE Dimensions
| Rated Capacity (lb) |
C (in) |
H (in) |
H1 (in) |
H2 (in) |
|
L (in) |
L1 (in) |
L2 (in) |
L3 (in) |
W (in) |
W1 (in) |
W2 (in) |
W3 (in) |
| 20,000 to 25,000 |
0.78 |
6.85 |
0.75 |
0.75 |
|
10.00 |
6.00 |
8.00 |
7.50 |
8.00 |
6.00 |
6.00 |
8.00 |
| 35,000 to 100,000 |
1.13 |
9.42 |
1.00 |
1.00 |
|
14.00 |
6.50 |
9.00 |
11.50 |
10.00 |
7.50 |
6.50 |
9.00 |
* Custom configurations available upon request
Upgrade to the RL2100 HE Heavy-Capacity Weigh Module Today
The SURVIVOR RL2100 HE Weigh Module is the perfect solution for heavy-duty weighing applications requiring precision, durability, and washdown protection. With NTEP-certified load cells, stainless steel construction, and a bolt-in-place design, this module ensures long-term accuracy and reliability in demanding industrial environments.
Contact our team for more information on how the RL2100 HE can improve your heavy-capacity weighing system!
