The SURVIVOR RL1700 HE Weigh Module is engineered for high-precision weighing in environments where hygiene and moisture control are critical. Featuring a stainless steel, weldless construction, this module allows fast and thorough cleaning, making it an excellent choice for food, chemical, and pharmaceutical industries.
With integral jacking and shipping bolts, installation is hassle-free, while the self-checking design prevents lifting, tipping, or shifting. The OIML C3-certified load cells ensure high accuracy in demanding industrial settings, providing consistent and reliable weight measurements.
For businesses requiring a waterproof, durable, and easy-to-clean weighing solution, the RL1700 HE is the perfect choice.
| Component | Details | |
|---|---|---|
| Capacity per Module | 5 kg to 5,000 kg | |
| Load Cell Type | RL9018SS (5 to 250 kg) / RLHTO (500 to 5,000 kg) Stainless Steel Load Cell | |
| Load Cell Protection | Hermetically Sealed, Waterproof | |
| Material | Stainless Steel | |
| Construction | Weldless for Easy Cleaning | |
| Mounting Design | Bolt-in-Place, No Additional Hardware Needed | |
| Load Cell Isolation | Protected from Overloads and Side Loads | |
| Self-Checking System | Yes, with Lift-Off and Tip-Over Protection | |
| Junction Box | JB4SS NEMA Type 4X Stainless Steel Signal Trim Box | |
| Load Cell Cable | 25 ft EL147HE SURVIVOR® Hostile Environment Cable | |
| Applications | Micro-Batching, Food Processing, Blending, Chemical Weighing |

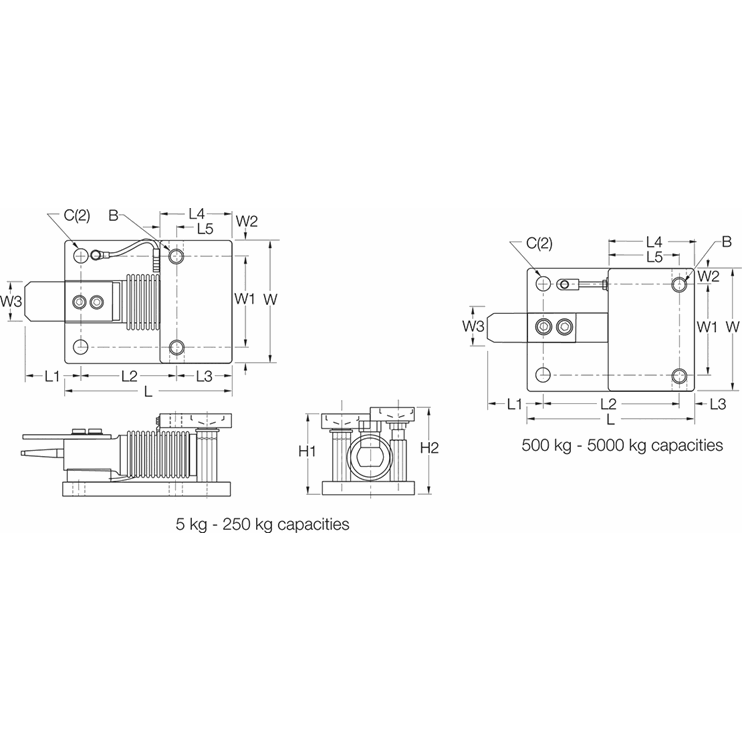

| Rated Capacity (kg) | C (mm) | B (Thread Size) | H1 (mm)* | H2 (mm) | L (mm) | L1 (mm) | L2 (mm) | L3 (mm) | L4 (mm) | L5 (mm) | W (mm) | W1 (mm) | W2 (mm) | W3 (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 5 to 250 | 13.1 | 1/2-20 UNF | 80.0 | 86.1 | 131.8 | 63.8 | 76.0 | 42.0 | 56.0 | 14.1 | 101.4 | 70.0 | 15.5 | 25.4 | |
| 500 to 2,000 | 13.1 | 5/8-18 UNF | 101.6 | 109.4 | 165.1 | 71.2 | 129.5 | 15.5 | 75.5 | 60.0 | 110.0 | 70.0 | 20.0 | 31.8 | |
| 5,000 | 19.8 | 3/4-10 UNF | 135.0 | 143.0 | 215.0 | 81.0 | 161.0 | 20.0 | 90.0 | 70.0 | 150.0 | 90.0 | 30.0 | 40.0 |
* H1 = Weighing Position
* H2 = Jacked-Up Position for Load Cell Shipping or Removal
The SURVIVOR RL1700 HE Weigh Module is the ideal solution for precision weighing in washdown environments. With stainless steel durability, self-checking safety features, and a waterproof design, this module ensures accurate and consistent measurements for food processing, blending, and micro-batching applications.
Contact our team for more information on how the RL1700 HE can enhance your weighing system!
