Key Features:
-

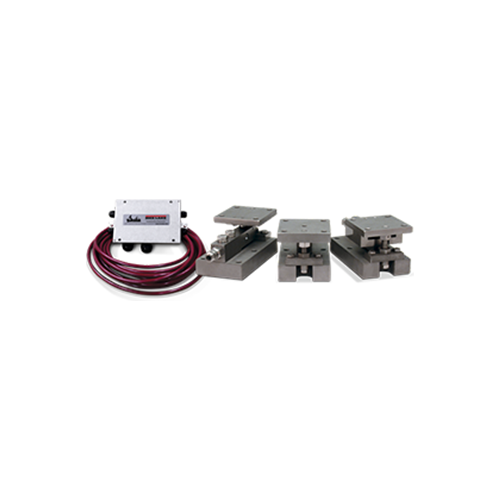

Complete kit includes:
- One fixed-pin module, one side-stop module, and one or two free-sliding assemblies
- Flintec SB4 stainless steel hermetically sealed load cell per module
- One JB4SS NEMA Type 4X stainless steel signal trim junction box
- 25 ft of hostile environment EL147HE SURVIVOR® load cell cable
-
All stainless steel construction for maximum durability in harsh environments
-
Bolt-in-place design eliminates the need for additional mounting plates or load buttons
-
Load cell outputs are mV/V/ohm calibrated for reduced maintenance costs
-
Unique patented blind load hole technology minimizes unwanted side and eccentric loads
-
Self-checking system with low-profile design for maximum stability
-
Jacking screw allows the vessel to be lifted clear of load cells for maintenance
-
Vessel slides laterally on PTFE-coated surfaces to accommodate thermal expansion/contraction
-
Ideal for:
- Medium-capacity blenders and tanks
- Batching and blending applications
- Pharmaceutical processing
- Food processing
- Petroleum refining and batching

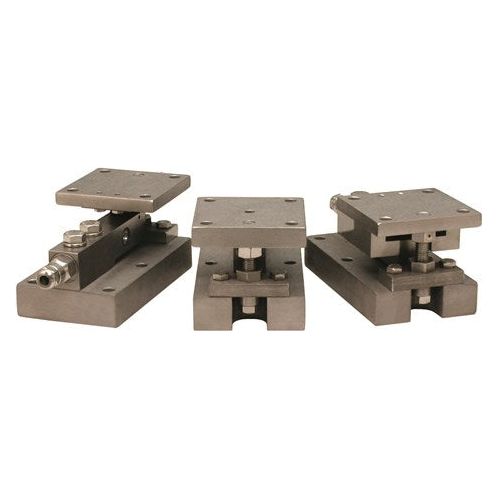

The SURVIVOR Paramounts HE Weigh Module System is an advanced weighing solution designed for applications with high mechanical movement due to expansion, contraction, or vibration. The three-module design includes:
-
Fixed-Pin Module: Acts as a reference point, allowing controlled rotation
-
Side-Stop Module: Enables movement in one direction to accommodate expansion and contraction
-
Free-Sliding Module(s): Allows free lateral movement to prevent unwanted side forces
This system ensures superior accuracy in high-motion environments by eliminating mechanical side loads while maintaining stability and precision. The integral jacking/shipping bolts enhance safety by preventing accidental lift-off, allowing for quick field removal of load cells without damage.
For industries requiring high-accuracy weighing with built-in mechanical compensation, the Paramounts HE System is an unmatched solution.
Specifications
| Component |
|
Details |
| Capacity per Module |
|
5 kN to 100 kN |
| Load Cell Type |
|
Flintec SB4 Stainless Steel Hermetically Sealed Load Cell |
| Load Cell Protection |
|
IP-rated for harsh environments |
| Material |
|
Stainless Steel |
| Mounting Design |
|
Bolt-in-Place, Self-Checking, Low Profile |
| Load Cell Isolation |
|
Protected from Side Loads and Eccentric Loading |
| Thermal Expansion Compensation |
|
Yes |
| Junction Box |
|
JB4SS NEMA Type 4X Stainless Steel Signal Trim Box |
| Load Cell Cable |
|
25 ft EL147HE SURVIVOR® Hostile Environment Cable |
| Applications |
|
Blenders, Batching, Food & Pharma Processing, Petroleum Weighing |

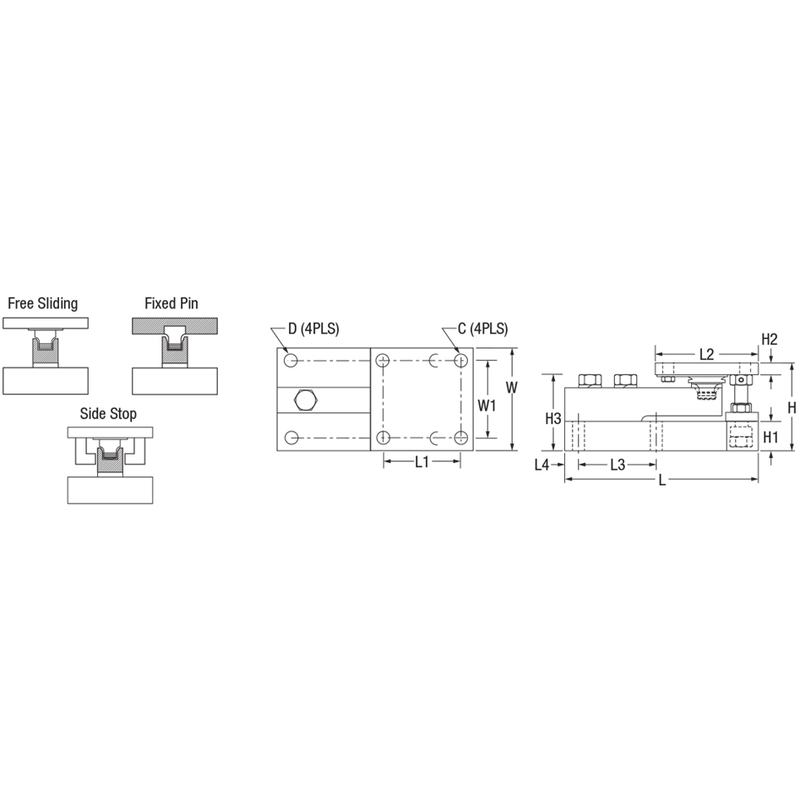

SURVIVOR Paramounts HE Dimensions
| Rated Capacity (kN) |
C (in) |
D (in) |
H (in) |
H1 (in) |
H2 (Side Stop/Free Sliding) (in) |
H2 (Fixed Pin) (in) |
H3 (in) |
|
L (in) |
L1 (in) |
L2 (in) |
L3 (in) |
L4 (in) |
W (in) |
W1 (in) |
| 5 to 23 |
0.44 |
0.44 |
3.58 |
1.25 |
0.50 |
0.75 |
3.06 |
|
7.51 |
3.00 |
4.00 |
3.00 |
0.50 |
4.00 |
3.00 |
| 50 |
0.56 |
0.56 |
4.66 |
1.50 |
0.62 |
1.00 |
4.09 |
|
9.19 |
3.87 |
5.00 |
3.87 |
0.56 |
5.00 |
3.87 |
| 100 |
0.69 |
0.69 |
6.41 |
2.00 |
0.75 |
1.25 |
5.73 |
|
11.46 |
4.75 |
6.00 |
4.75 |
0.69 |
6.00 |
4.75 |
* H2 varies for Fixed Pin and Side Stop/Free Sliding Units
Upgrade to the Paramounts HE Weigh Module System Today
The SURVIVOR Paramounts HE Weigh Module System offers advanced weighing performance with thermal expansion compensation, a self-checking low-profile design, and unmatched durability. With stainless steel construction, a bolt-in-place design, and integral jacking bolts, this system provides exceptional accuracy in demanding industrial environments.
Contact our team for more information on how the Paramounts HE can enhance your weighing operations!
