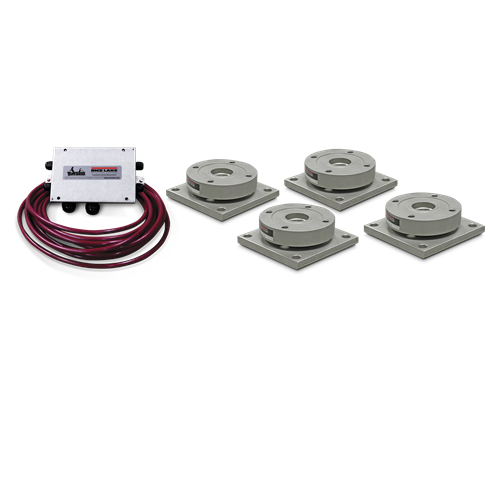

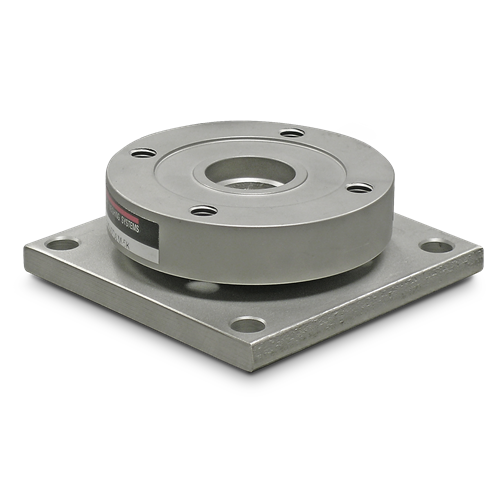

The RL9000TWM Series Weigh Module is a high-performance weighing system designed for industrial tank, hopper, and vessel weighing applications. Featuring stainless steel construction and a welded-seal IP67 rating, this module ensures long-term reliability, corrosion resistance, and precise weight measurement.
Its self-checking and self-centering design eliminates the need for additional check rods or stabilizing hardware, making it an economical yet high-precision solution. Additionally, it provides exceptional overload protection, ensuring that it can handle the demands of heavy industrial environments.
For businesses that require durability, accuracy, and reliability in weighing applications, the RL9000TWM Series is a proven choice.
| Component | Details | |
|---|---|---|
| Full Scale Output | 3.0 (± 0.1%) mV/V | |
| Bridge Resistance | 350 ohm | |
| Material/Finish | Stainless Steel | |
| Operating Temperature | 0 °F to 150 °F (-17 °C to 65 °C) | |
| Seal Type | Welded-Seal, IP67 | |
| Safe Overload Capacity | 150% Full Scale | |
| Ultimate Overload Capacity | 300% Full Scale | |
| Rated Excitation Voltage | 5 to 10 VDC | |
| Nonlinearity | 1,000 to 100,000 lb: 0.05% FS, 150,000 to 450,000 lb: 0.1% FS | |
| Insulation Resistance | 5,000 Megohm | |
| Non-Repeatability | 1,000 to 100,000 lb: 0.02% FS, 150,000 to 450,000 lb: 0.03% FS | |
| Cable Length | 25 ft | |
| Cable Color Code | Green (+Excitation), Black (−Excitation), White (+Signal), Red (−Signal) | |
| Warranty | Two-Year Limited |
| Rated Capacity (lb) | Deflection (inches) | |
|---|---|---|
| 1,000 - 15,000 | 0.002 in | |
| 20,000 - 50,000 | 0.004 in | |
| 60,000 - 100,000 | 0.007 in | |
| 150,000 - 200,000 | 0.007 in | |
| 250,000 - 450,000 | 0.009 in |

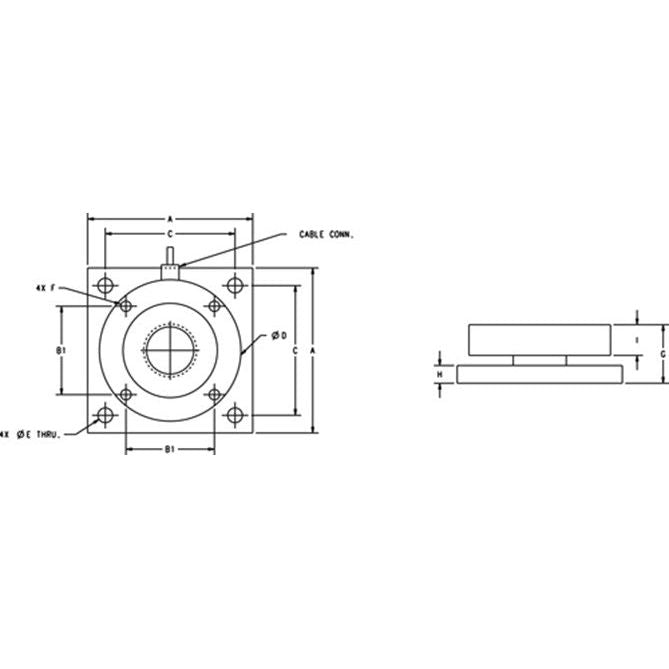

| Rated Capacity (lb) | A (in) | B1 (in) | C (in) | D (in) | E (in) | F (in) | G (in) | H (in) | I (in) | Conduit Adapter | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1,000 - 10,000 | 4.00 | 2.00 | 3.25 | 3.50 | 0.40 | 3/8-16 UNC | 1.35 | 0.375 | 0.75 | — | |
| 15,000 | 4.00 | 2.00 | 3.25 | 3.50 | 0.40 | 3/8-16 UNC | 1.60 | 0.625 | 0.75 | — | |
| 20,000 - 50,000 | 7.00 | 3.75 | 5.50 | 6.00 | 0.63 | 1/2-13 UNC | 2.48 | 0.75 | 1.30 | 1/2-14 NPT | |
| 60,000 - 100,000 | 8.00 | 4.25 | 6.50 | 7.00 | 0.81 | 3/4-16 UNC | 2.50 | 1.00 | 1.30 | 1/2-14 NPT |

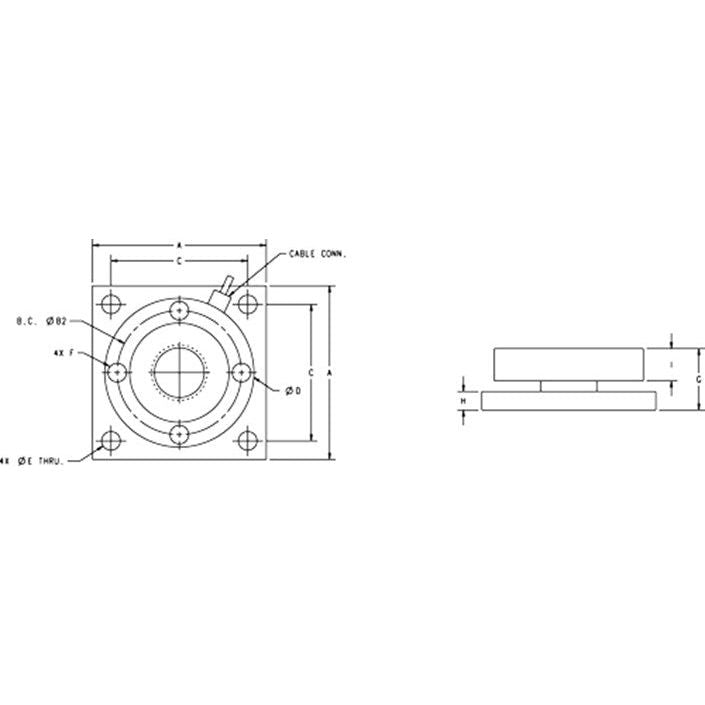

| Rated Capacity (lb) | A (in) | B1 (in) | C (in) | D (in) | E (in) | F (in) | G (in) | H (in) | I (in) | Conduit Adapter |
|---|---|---|---|---|---|---|---|---|---|---|
| 150,000 - 200,000 | 10.0 | 7.825 | 8.00 | 9.00 | 1.10 | 1-14 UNF | 4.75 | 2.00 | 1.70 | 1/2-14 NPT |

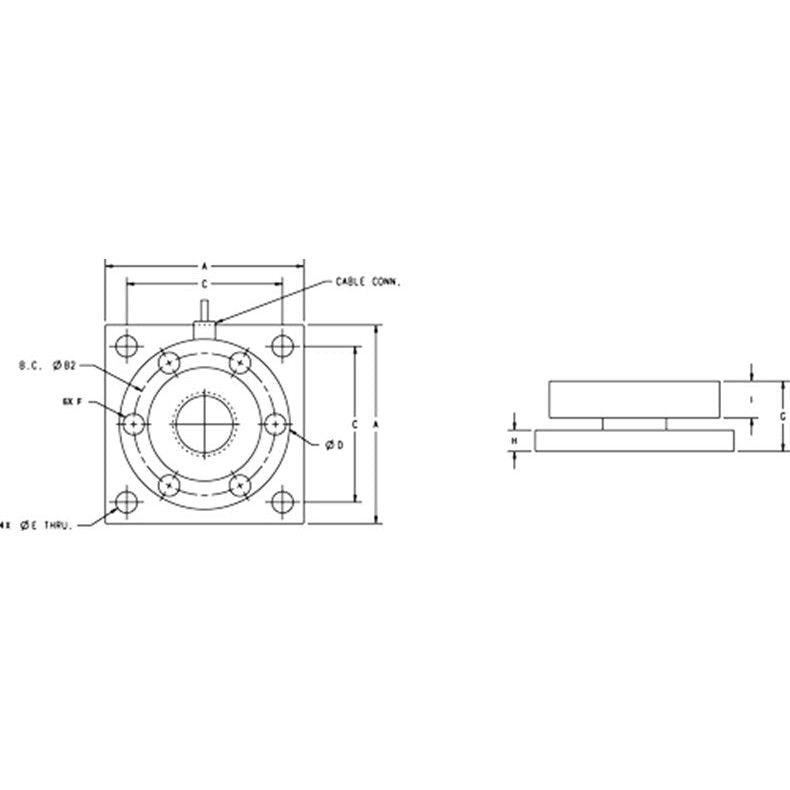

| Rated Capacity (lb) | A (in) | B1 (in) | C (in) | D (in) | E (in) | F (in) | G (in) | H (in) | I (in) | Conduit Adapter |
|---|---|---|---|---|---|---|---|---|---|---|
| 250,000 - 450,000 | 11.00 | 7.75 | 9.00 | 9.00 | 1.30 | 7/8-14 UNF | 6.42 | 3.00 | 2.25 | 1/2-14 NPT |
The RL9000TWM Series Weigh Module is an ideal solution for industrial weighing applications, delivering precision, durability, and excellent overload protection. Its self-centering and low-profile design makes installation easy, while the stainless steel construction ensures long-term reliability.
Contact our team for more information on how the RL9000TWM Series can enhance your weighing operations!
