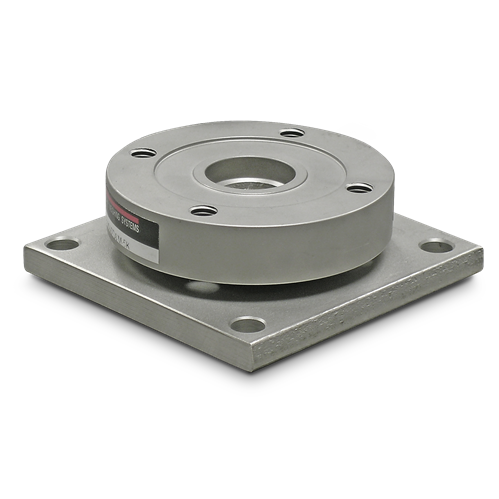

The RL9000TWM-HT Series Weigh Module is part of the widely recognized RL9000TWM Series, designed specifically for high-temperature weighing applications. It is engineered to operate in extreme environments up to 400°F, making it ideal for industrial applications where elevated temperatures are a concern.
This module features stainless steel construction, ensuring long-term durability and resistance to corrosion and wear. Its low-profile, self-centering design provides consistent accuracy, even under side loads or non-parallel conditions.
For industries requiring precision weighing under high-temperature conditions, the RL9000TWM-HT Series offers a superior solution with its exceptional performance, overload protection, and durability.
| Component | Details | |
|---|---|---|
| Full Scale Output | 3.0 (±0.1%) mV/V | |
| Bridge Resistance | 700 ohm | |
| Material/Finish | Stainless Steel | |
| Operating Temperature | 0 °F to 400 °F (-17 °C to 204 °C) | |
| Seal Type | Welded Seal, IP67 | |
| Safe Overload Capacity | 150% Full Scale | |
| Nonlinearity | 0.01% Full Scale | |
| Insulation Resistance | 5,000 Megohm | |
| Non-Repeatability | 0.02% Full Scale | |
| Deflection at Capacity | 1,000-15,000 lb: 0.002 in; 20,000-50,000 lb: 0.004 in | |
| Cable Length | 25 ft PTFE Jacket | |
| Cable Color Code | Green (+Excitation), Black (−Excitation), White (+Signal), Red (−Signal) | |
| Warranty | Two-Year Limited |

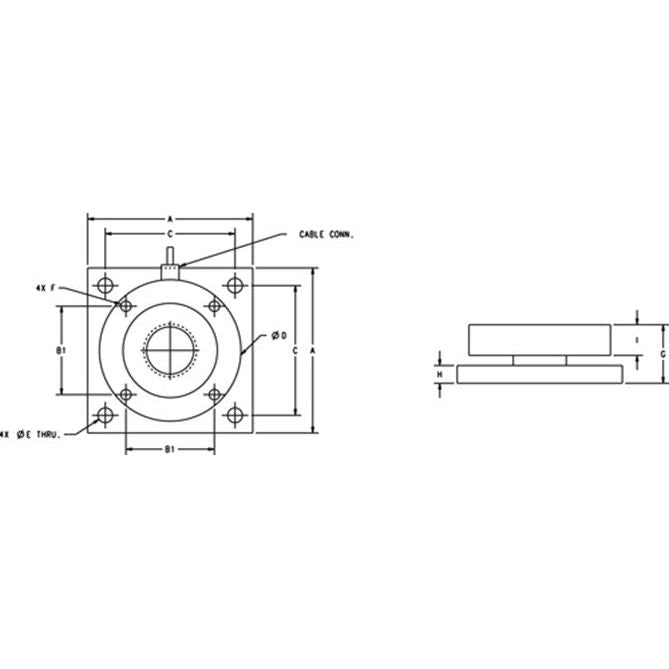

| Rated Capacity (lb) | A (in) | B1 (in) | C (in) | D (in) | E (in) | F (in) | G (in) | H (in) | I (in) | Conduit Adapter | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1,000 - 10,000 | 4.00 | 2.00 | 3.25 | 3.50 | 0.40 | 3/8-16 UNC | 1.35 | 0.375 | 0.75 | — | |
| 15,000 | 4.00 | 2.00 | 3.25 | 3.50 | 0.40 | 3/8-16 UNC | 1.60 | 0.625 | 0.75 | — | |
| 20,000 - 50,000 | 7.00 | 3.75 | 5.50 | 6.00 | 0.63 | 1/2-13 UNC | 2.48 | 0.750 | 1.30 | 1/2-14NPT |
*Custom sizes available upon request
The RL9000TWM-HT Weigh Module is specifically designed for high-temperature applications, ensuring accurate and stable weighing under extreme conditions. With exceptional overload protection, stainless steel construction, and precision engineering, this module is the ideal solution for industrial tank, hopper, and vessel weighing applications.
Contact our team for more information on how the RL9000TWM-HT Series can enhance your weighing operations!
