Key Features:
-
Complete kit includes:
- Three or four neoprene isolation/compression mounts with load cells
-
Load cell options:
-
50 to 250 lb models: RL50219SS
-
500 lb model: Stainless steel single-ended beam load cell
- One JB4SS NEMA Type 4X stainless steel signal trim junction box
- 25 ft of hostile environment EL147HE SURVIVOR® load cell cable
- Stainless steel modules for long-term durability
-
Capacity per module: 50 to 500 lb
-
Environmentally protected load cells ensure reliable operation in various conditions
-
Neoprene isolation/compression mounts:
- Allow for minor misalignment, thermal expansion, and shock absorption
-
Overload stop included for 500 lb modules to enhance durability
-
Ideal for:
- Small tank and hopper weighing
- Conveyor and in-motion weighing applications
- Small platform scales with minor shock loading

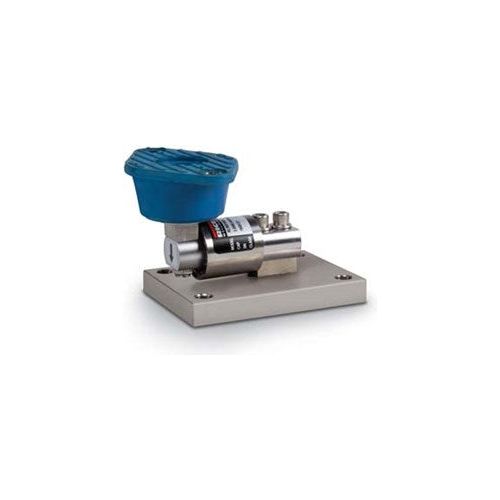

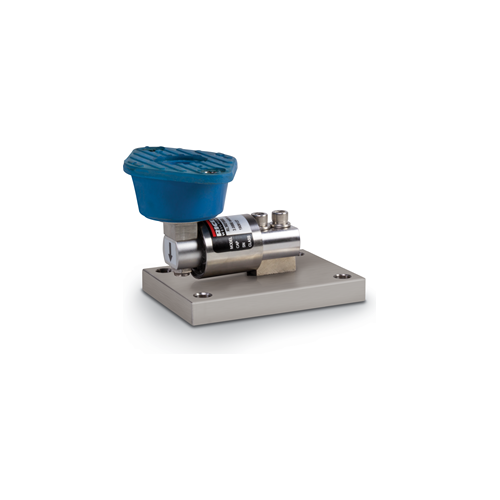

The RL50219SS-TA Mini Tank Weighing Module is a cost-effective, precision weighing solution for low-range applications. With stainless steel construction, environmentally protected load cells, and neoprene isolation mounts, this module is designed to handle minor misalignment, thermal expansion, and shock absorption.
For small tanks, hoppers, conveyor systems, and in-motion weighing applications, this module provides reliable performance with easy installation. The neoprene compression mounts further ensure smooth operation, protecting the system from vibrations and dynamic loads.
For businesses needing a compact, durable, and highly accurate weighing solution, the RL50219SS-TA Mini Tank Weighing Module is an excellent choice.
Specifications
| Component |
|
Details |
| Capacity per Module |
|
50 to 500 lb |
| Load Cell Type |
|
RL50219SS (50 to 250 lb) / Stainless Steel Single-Ended Beam (500 lb) |
| Load Cell Protection |
|
Environmentally Sealed |
| Isolation Mounts |
|
Neoprene Compression for Shock Absorption & Thermal Expansion |
| Overload Protection |
|
Yes, for 500 lb Models |
| Junction Box |
|
JB4SS NEMA Type 4X Stainless Steel Signal Trim Box |
| Load Cell Cable |
|
25 ft EL147HE SURVIVOR® Hostile Environment Cable |
| Applications |
|
Small Tanks, Hoppers, Conveyor Weighing, Small Platform Scales |

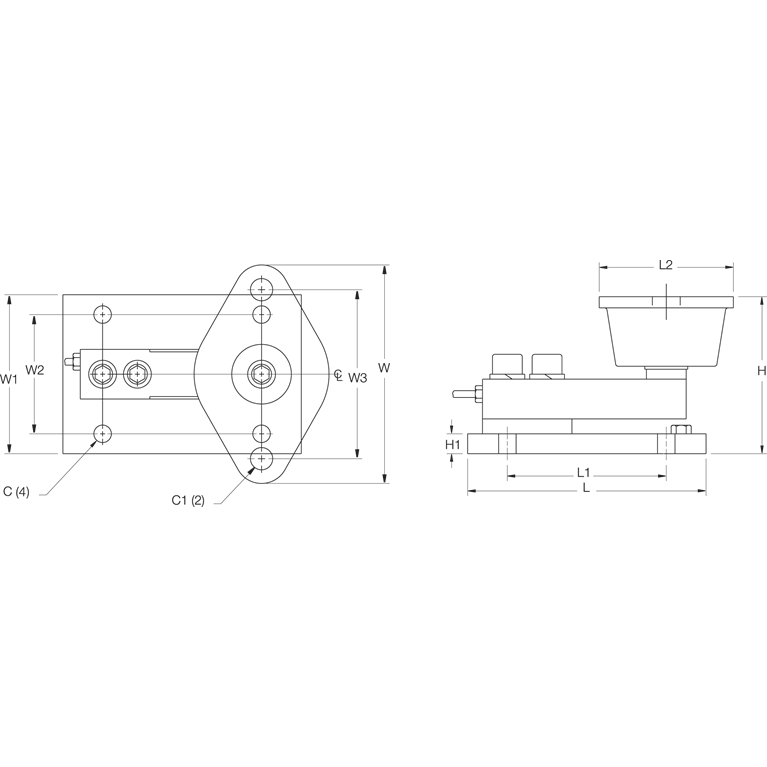

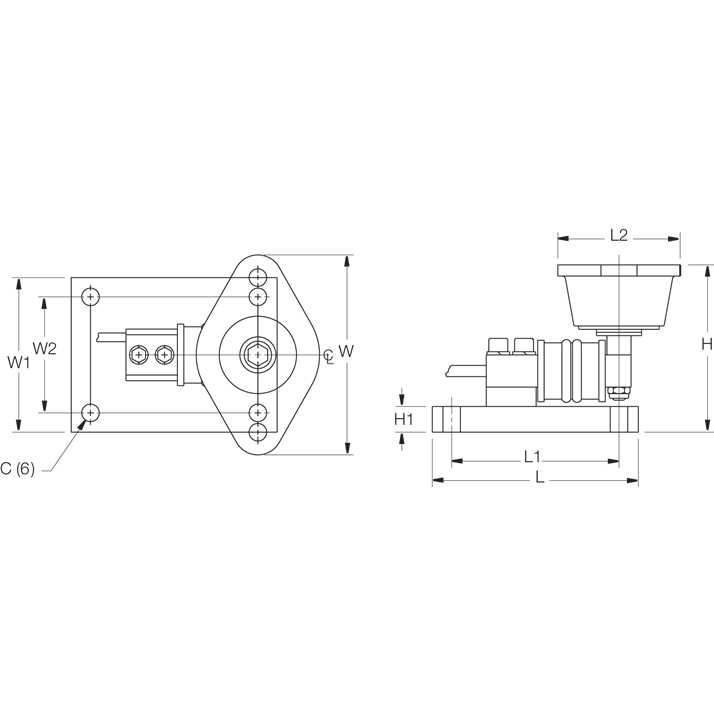

RL50219SS-TA Weigh Module Dimensions
| Rated Capacity (lb) |
C (in) |
C1 (in) |
H (in) |
H1 (in) |
L (in) |
L1 (in) |
|
L2 (in) |
W (in) |
W1 (in) |
W2 (in) |
W3 (in) |
| 50 to 250 |
0.34 |
- |
3.13 |
0.50 |
4.00 |
3.25 |
|
2.38 |
3.88 |
3.00 |
2.25 |
- |
| 500 |
0.44 |
0.56 |
3.88 |
0.50 |
6.00 |
4.00 |
|
3.38 |
5.50 |
4.00 |
3.00 |
4.13 |
*Custom sizes available upon request
Optimize Your Low-Range Weighing System with the RL50219SS-TA Mini Tank Module
The RL50219SS-TA Mini Tank Weighing Module is designed for precision and durability in light-capacity weighing applications. Its stainless steel construction, environmentally protected load cells, and neoprene compression mounts make it an ideal solution for small tank, hopper, and conveyor weighing applications.
Contact our team for more information on how the RL50219SS-TA module can improve your weighing operations!
