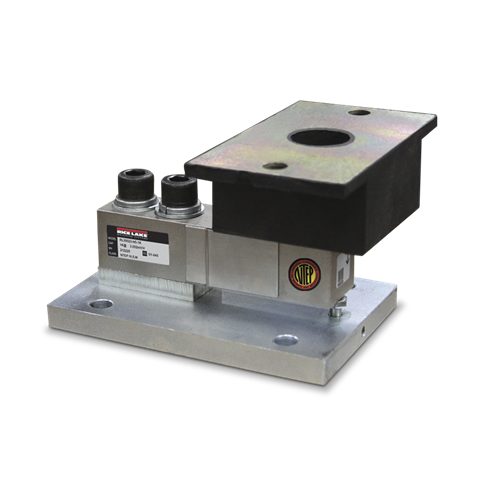

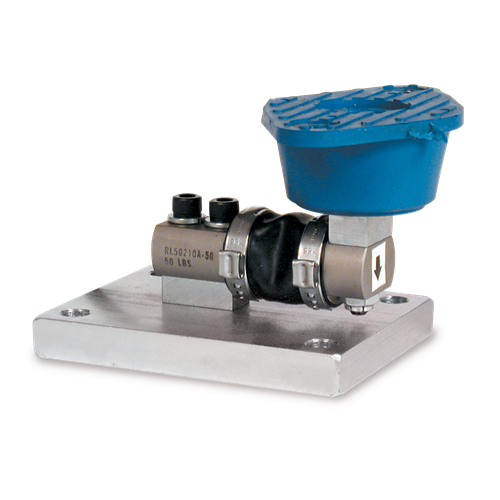

The RL50210TA Mini Tank Weighing Module is a versatile, cost-effective solution for medium-range weighing applications. Its compact and durable design makes it ideal for indoor industrial environments where minor misalignment and shock absorption are required.
With environmentally protected load cells, neoprene isolation mounts, and overload protection, this module ensures stable and precise weight measurement. Whether used for small tanks, hoppers, or conveyor systems, the RL50210TA delivers high performance and reliability at an affordable price.
For businesses needing a compact and efficient weighing solution, the RL50210TA Mini Tank Weighing Module is a top choice.
| Component | Details | |
|---|---|---|
| Capacity per Module | 50 to 2,500 lb | |
| Load Cell Type | RL50210, RL30000, RL32018, RL39123, RL32018S (NTEP Certified for 1,000 - 2,500 lb) | |
| Load Cell Protection | Environmentally Sealed | |
| Construction | Zinc-Plated Mild Steel or Stainless Steel | |
| Isolation Mounts | Neoprene Compression for Shock Absorption & Thermal Expansion | |
| Overload Protection | Yes | |

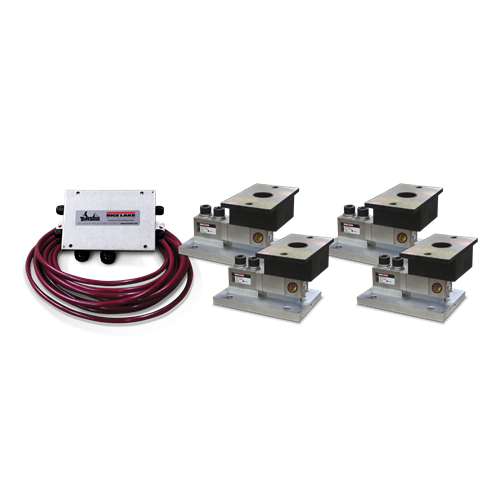

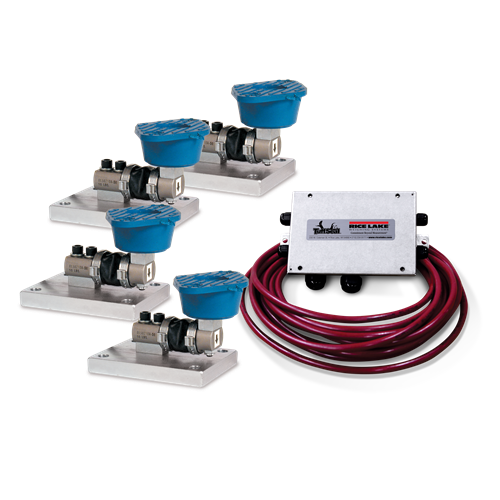

| Junction Box | JB4SS NEMA Type 4X Stainless Steel Signal Trim Box | |
| Load Cell Cable | 25 ft EL147HE SURVIVOR® Hostile Environment Cable | |
| Applications | Small Tanks, Hoppers, Conveyor Weighing, Small Platform Scales |

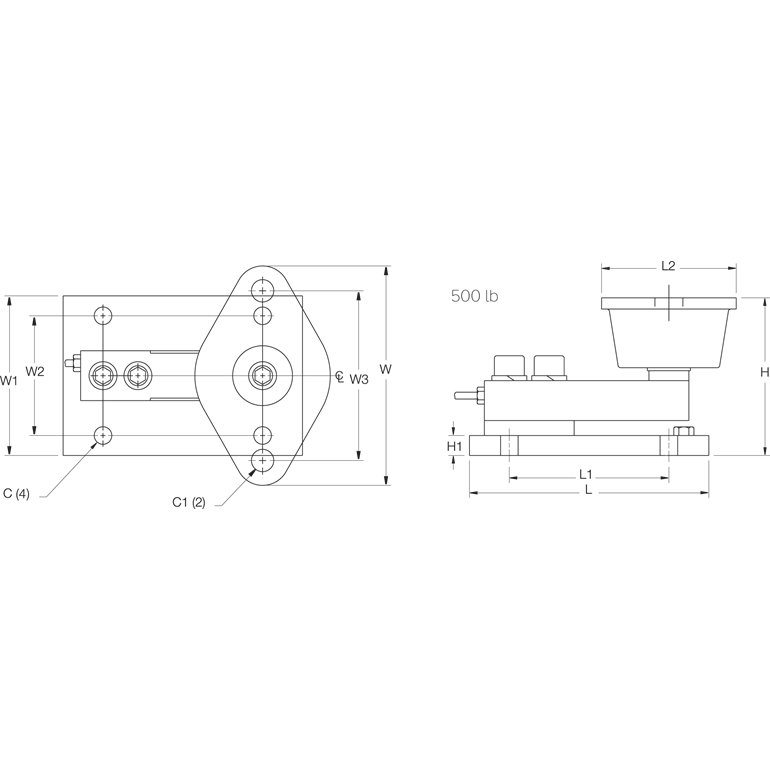

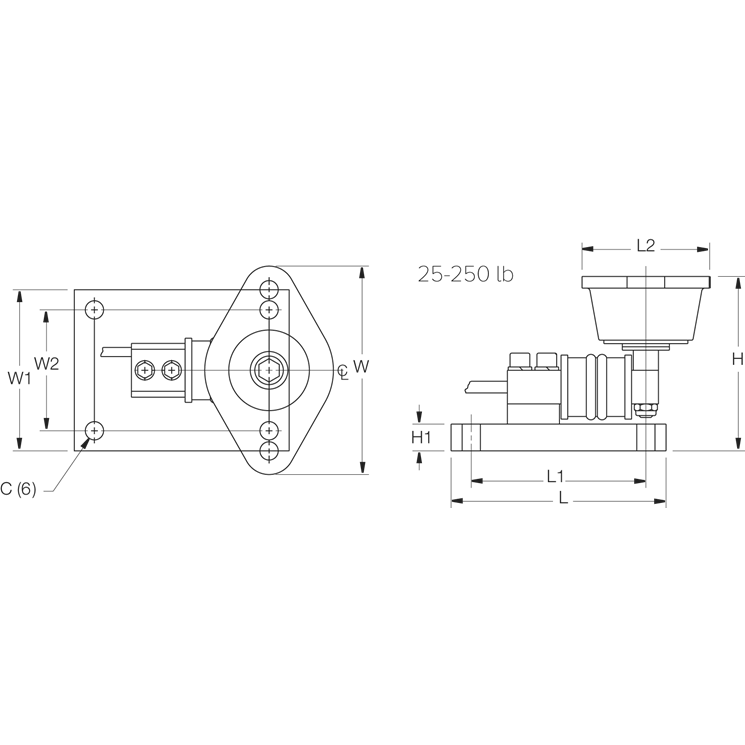

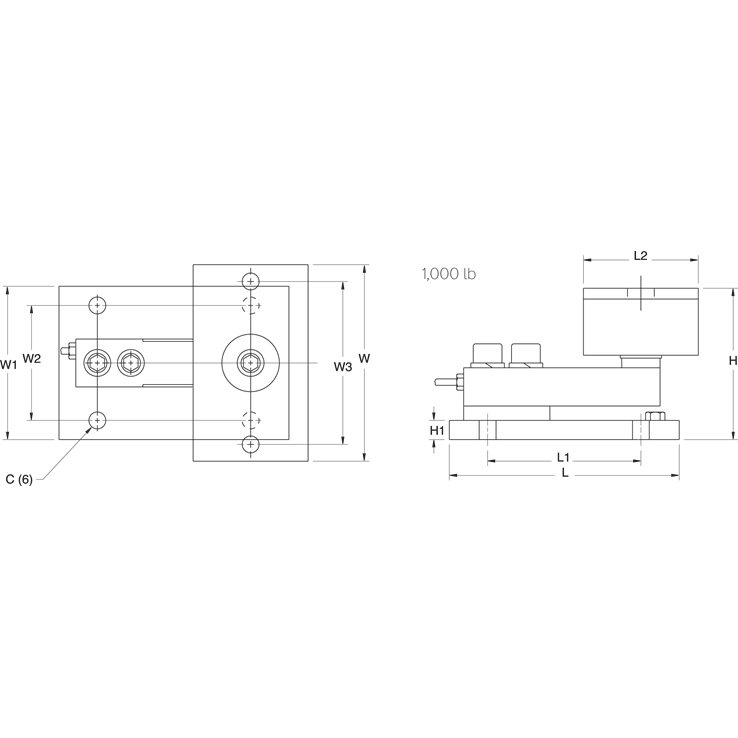

| Rated Capacity (lb) | C (in) | C1 (in) | H (in) | H1 (in) | L (in) | L1 (in) | L2 (in) | W (in) | W1 (in) | W2 (in) | W3 (in) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 to 250 | 0.34 | - | 3.13 | 0.50 | 4.00 | 3.25 | 2.38 | 3.88 | 3.00 | 2.25 | - | |
| 500 | 0.44 | 0.56 | 3.88 | 0.50 | 6.00 | 4.00 | 3.38 | 5.50 | 4.00 | 3.00 | 4.13 | |
| 1,000 | 0.44 | - | 4.00 | 0.50 | 6.00 | 4.00 | 3.00 | 5.13 | 4.00 | 3.00 | 4.13 | |
| 2,000 to 2,500 | 0.44 | 0.56 | 4.00 | 0.50 | 6.00 | 4.00 | 4.62 | 6.25 | 4.00 | 3.00 | 5.00 |
*Custom sizes available upon request
The RL50210TA Mini Tank Weighing Module offers a balance of affordability, durability, and precision. With stainless steel or mild steel construction, NTEP Certified load cells, and isolation mounts for shock absorption, this module is ideal for small tank, hopper, and conveyor weighing applications.
Contact our team for more information on how the RL50210TA can improve your weighing process!
